£400.63
excl. VAT
£480.76 incl. VAT
£480.76
incl. VAT
£400.63 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Crop sprayers, Slurry tanks, Manure spreaders, Hay rakes, Tedders |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Extremely reliable, with a low power-to-weight ratio, Extended lubrication intervals of up to 50 hours, Simple maintenance |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |

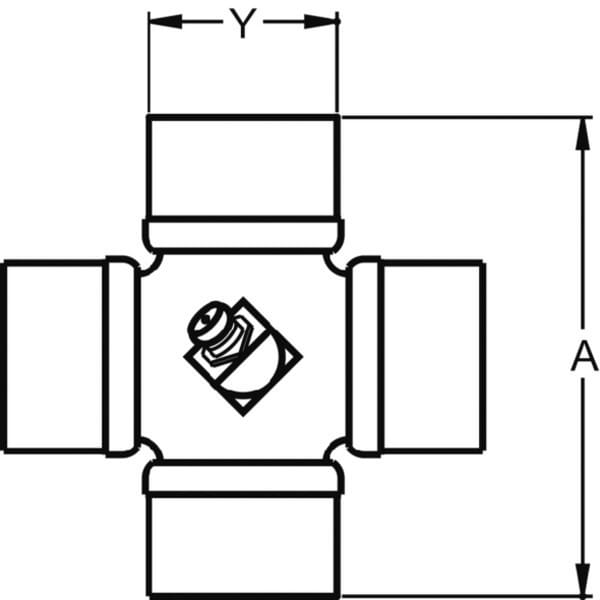

| Cross joint bush diameter by machine side | 30.2 mm |
| Cross joint bush diameter by tractor side | 30.2 mm |
| Cross joint length by machine side | 91.4 mm |
| Cross joint length by tractor side | 91.4 mm |
| Details | Enhanced protection concept, Optimised cross journals with double lip seal, Optimally accessible grease nipples (grease nipples aligned in a row) |
| Length | 1010 mm |
| Locking type by machine side | Push pin |
| Locking type by tractor side | Push pin |
| Properties | CE marking available |
| Size code | G7 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 18000 g |
| Dimensions | 1264 × 200 × 200 mm |
| Dangerous goods | No |
You might also like
BPA000065864
Bondioli&Pavesi Yoke, Profile tube, 43.5mm, 3 Bondioliand Pavesi 204036851
£54.12 excl.
£64.94 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000039514
Bondioli&Pavesi Profile tube outer triangular size:4 diameter in: 37.3 diameter out: 43.5x3.1mm L: 3m wide angle Bondioliand Pavesi 125163000R06
£246.91 excl.
£296.29 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000250229
Bondioli&Pavesi Cardan shaft SFT S4 DS4N121CE000001
£362.33 excl.
£434.80 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000130561
Bondioli&Pavesi Yoke, clamp bolt, 30mm, 43/G3/G4/S4 Bondioliand Pavesi 509046252
£98.29 excl.
£117.95 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

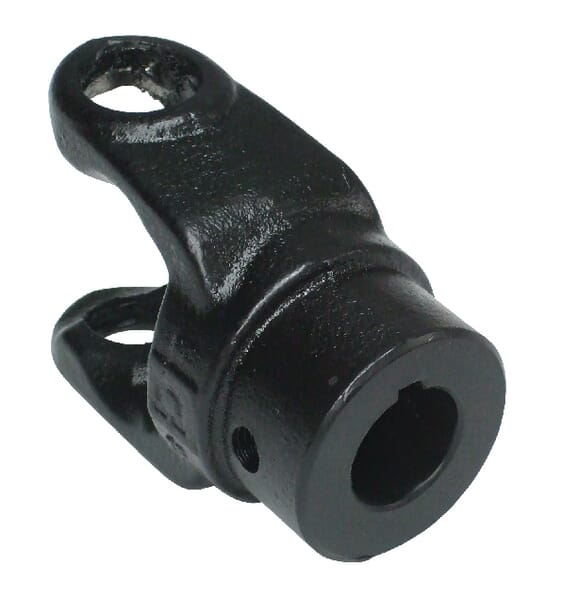

BPA000067440
Bondioli&Pavesi Yoke, hub, 30mm, 43/G3/G4/S4 Bondioliand Pavesi 2120E6255
£112.06 excl.
£134.47 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping

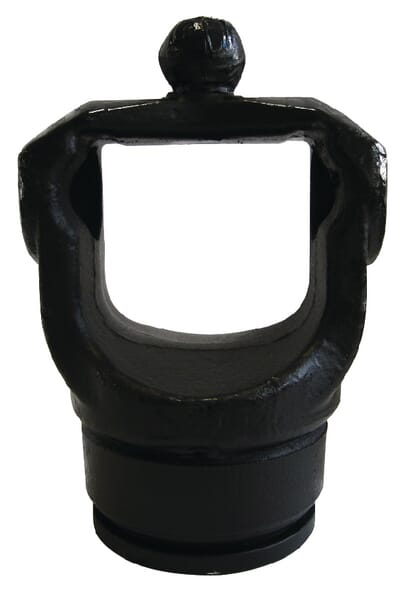

BPA000067909
