£243.29
excl. VAT
£291.95 incl. VAT
£291.95
incl. VAT
£243.29 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Fertiliser pump, Shredder, Light balers |
|---|---|
| Benefits | Prevents against subsequent damage, Easy to start up |
| Clutch type code | LB |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Details | Drive fully disconnected, Repairable by replacing a shear bolt |
| Locking type by machine side | Push pin |
| Max static torque | 14000 N·m |
| Properties | Regardless of direction of rotation, Power transmission via shear bolts |
| Shaft size code | S4, G4 |
| Share bolts circle radius | 45 |
| Share bolts thread diameter | M8 |
| Share bolts thread length | 45 |
| Shear bolts quality | 8.8 (steel) |
| Shear bolts thread pitch | 1.25 mm |
| Technical info | Protects against blockages and overload |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2772 g |
| Dimensions | 135 × 115 × 100 mm |
| Dangerous goods | No |
You might also like
BPA000115109
Bondioli&Pavesi Bolt set SB4 (5) 433044004
£18.82 excl.
£22.58 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000162735
Bondioli&Pavesi Joint Size:4 inside 71G4050007
£148.24 excl.
£177.89 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000144925
Bondioli&Pavesi Yoke, quick disconnect, 1-3/8"-21 spline, 8/G8/S8/H8 Bondioliand Pavesi 5730L3791
£354.43 excl.
£425.32 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000160453

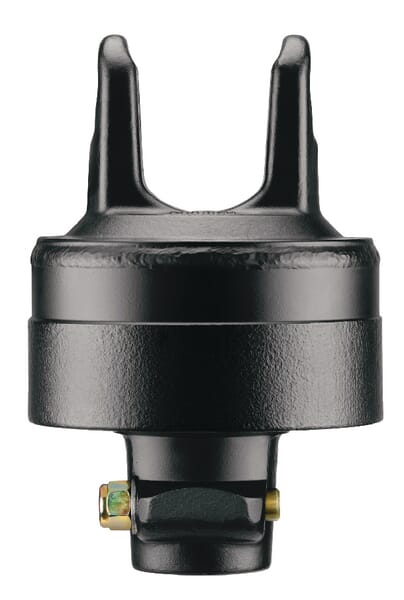

Bondioli&Pavesi Clutch LR35 S0 4500Nm 6WSF80004R
£1,757.97 excl.
£2,109.56 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000152552
Bondioli&Pavesi Shear bolt clutch G9/S9 3500Nm 6060M0407R
£258.93 excl.
£310.72 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000248156
Bondioli&Pavesi Wide angle PTO shaft S8 L 810mm CS8R081CEWR7016T
£1,547.90 excl.
£1,857.48 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000141687
MEKRA-LANG Bar u-form 1016, left, mounting from outside of vehicle welded 581016001099
£76.90 excl.
£92.28 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000079598
Kramp Inner tube for rim diameter 4", 300-4, straight valve TR13, 3004TR13
£3.82 excl.
£4.58 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000173756

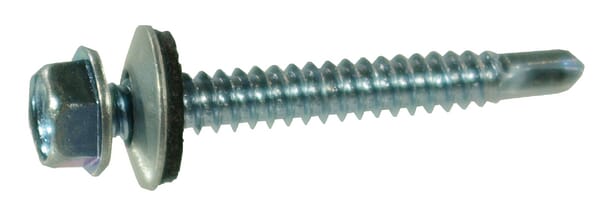

Kramp Self tapping screw 6.3x50mm, 10mm flange hex head, DIN 7504 7504KNEO6350P100
£0.22 excl.
£0.27 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000283086

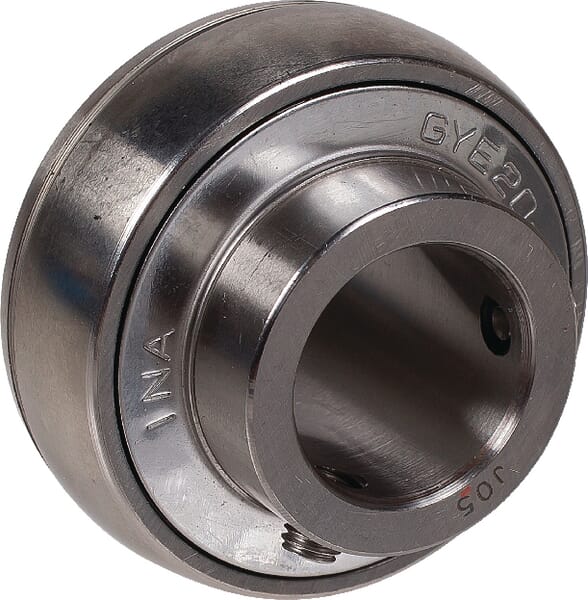

INA Bearing insert 20x47x16mm INA/FAG GYE20KRRBVAHLA
£91.81 excl.
£110.17 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000202499
Kramp Hexagon nut DIN934 UNC 5/16" steel zinc-plated |8| 934516UNCP050
£0.03 excl.
£0.04 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000193005
Kramp Oil seal 90x105x13mm type:CC DIN 3760 1x 9010513CCP001
£3.97 excl.
£4.76 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000306471

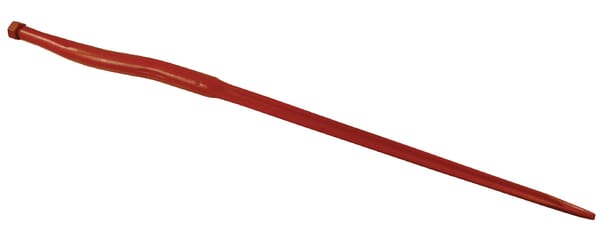

SHW Silage tine, cranked: 38mm star section 36x1,000mm, pointed tip with M20x1.5mm nut, red, KT11
