£143.44
excl. VAT
£172.13 incl. VAT
£172.13
incl. VAT
£143.44 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Rotary tillers, Shredder, Wood shredders, Stump grinding |
|---|---|
| Benefits | Assembly with no play, Clamping pin is not loaded for stretching |
| Consists of | Fork, Conical clamping pin |
| Cross connection diameter | 30.2 mm |
| Cross length | 79.4 mm |
| Details | Conical pin provides good clamping effect, Housing without slot |
| DLocking bolt to connection end distance | 24 mm |
| Inside connection diamter inch and splines | 1.3/8-21 |
| Locking bolt to cross bush center distance | 106 mm |
| Locking system | Clamp bolt (interfering) |
| Long description | Clamp-on yokes splined, series SH |
| Outside connection diameter | 30.2 mm |
| Product details | Do not use yoke on tractor side with machines produced after 2005 according to safety standard EN12965, Conical screw ensures good hold, Housing without saw cut |
| Properties | Clamp cone bolt |
| Pros | Slack-free installation, Clamp bolt is not stretched under load |
| Shaft size code | S5, S6, G5, 5 |
| Technical info | In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005 |
| Type | Clamp bolt |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2370 g |
| Dimensions | 138 × 78 × 90 mm |
| Dangerous goods | No |
You might also like
BPA000108884
Bondioli&Pavesi Cross journal diameter 22x86mm G4 / S4 Bondioliand Pavesi 4120E0051R40
£60.27 excl.
£72.32 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000144902

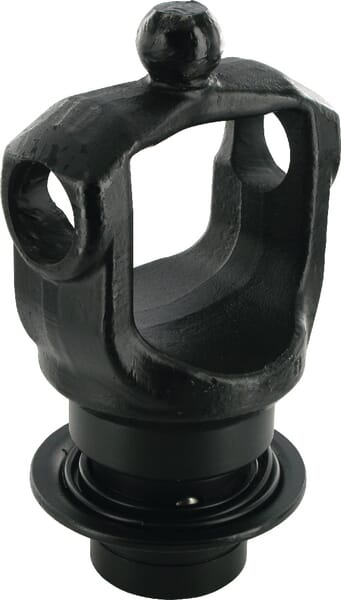

Bondioli&Pavesi Yoke, quick disconnect, 1-3/8"-6 spline, 6 Bondioliand Pavesi 573060399
£287.37 excl.
£344.84 incl.
In stock
Expected to ship on Friday 18 September
BPA000065872
Bondioli&Pavesi Yoke, Profile tube, 51.5mm, 5 Bondioliand Pavesi 204056860
£50.51 excl.
£60.61 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000077347

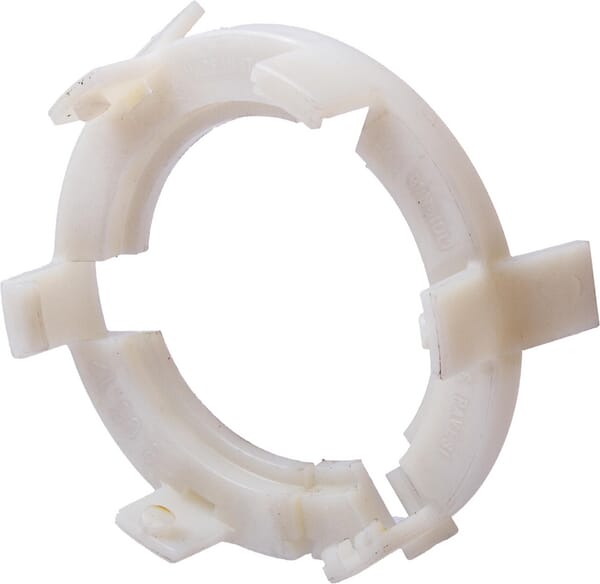

Bondioli&Pavesi Outer ring (8G512) 255080015
