£128.15
excl. VAT
£153.78 incl. VAT
£153.78
incl. VAT
£128.15 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Rotary tillers, Shredder, Wood shredders, Stump grinding |
|---|---|
| Benefits | Assembly with no play, Clamping pin is not loaded for stretching |
| Consists of | Fork, Conical clamping pin |
| Cross connection diameter | 27 mm |
| Cross length | 74.6 mm |
| Details | Conical pin provides good clamping effect, Housing without slot |
| DLocking bolt to connection end distance | 24 mm |
| Inside connection diamter inch and splines | 1.3/8-6 |
| Locking bolt to cross bush center distance | 85 mm |
| Locking system | Clamp bolt (interfering) |
| Long description | Clamp-on yokes splined, series SH |
| Outside connection diameter | 27 mm |
| Product details | Do not use yoke on tractor side with machines produced after 2005 according to safety standard EN12965, Conical screw ensures good hold, Housing without saw cut |
| Properties | Clamp cone bolt |
| Pros | Slack-free installation, Clamp bolt is not stretched under load |
| Shaft size code | 43, G3, G4, S4 |
| Technical info | In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005 |
| Type | Clamp bolt |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1550 g |
| Dimensions | 130 × 80 × 80 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000144807
Bondioli&Pavesi Yoke, quick disconnect, 1-3/8"-6 spline, SH Bondioliand Pavesi 5720N0351
£297.54 excl.
£357.05 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000144811
Bondioli&Pavesi Yoke, quick disconnect, 1-3/8"-21 spline, SH Bondioliand Pavesi 5720N3752
£331.53 excl.
£397.84 incl.
In stock
Expected to ship on Friday 18 September
BPA000068076
Bondioli&Pavesi Yoke, Profile tube, 51.2mm, S8 Bondioliand Pavesi 204S86854
£98.03 excl.
£117.64 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000160452
Bondioli&Pavesi Clutch LR35 S9 4100Nm 6WM488038R
£1,789.18 excl.
£2,147.02 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000037037

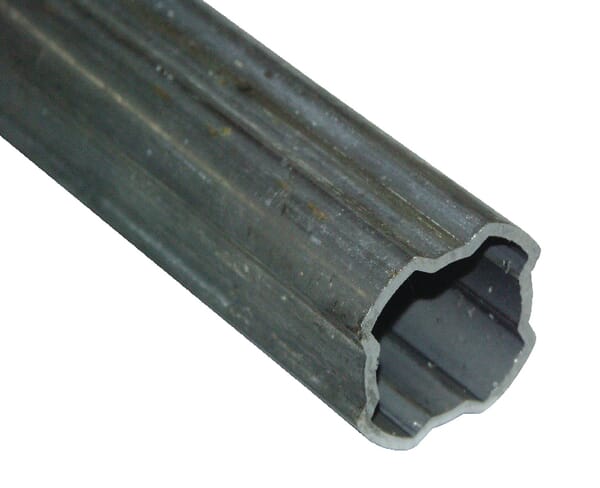

Bondioli&Pavesi Profile tube outer SFT H7/S8 diameter in: 52.2 diameter out: 58.2x3mm L: 1m wide angle Bondioliand Pavesi 122251000R06
