£245.35
excl. VAT
£294.42 incl. VAT
£294.42
incl. VAT
£245.35 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September

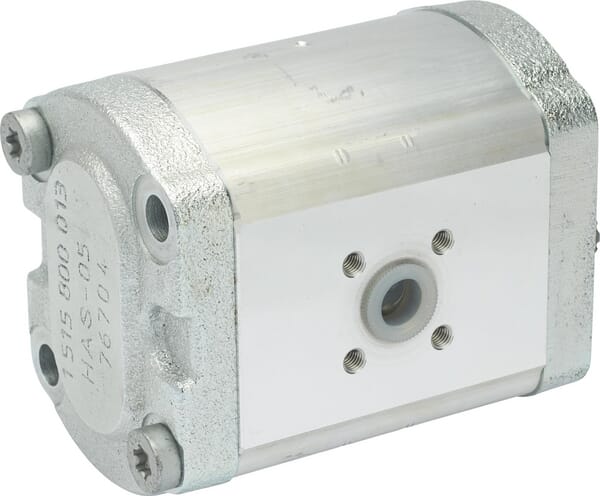

Product details
| Displacement | 22.5 cm³/rev |
|---|---|
| Flange and back cover material | Cast iron |
| Flange code | P |
| Flange type norm | German |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 250 BAR |
| Max pressure peak | 290 BAR |
| Max rotation speed | 3500 r/min |
| Min rotation speed | 600 r/min |
| Mounting diameter | 50 mm |
| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 2 |
| Original number equivalent | R918C02140 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Pump group code | 2 |
| Rotation direction | Clockwise (CW) |
| Sealing material | Viton |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 16.5 mm |
| Shaft number of teeth | 9 |
| Shaft thread diameter | n/a |
| Shaft thread type | n/a |
| Shaft type | Splined 9T |
| Shaft type code | F |
| Suction port bolts circle diameter | 40 mm |
| Unit | Each |
| Weight | 3.6 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3682 g |
| Dimensions | 150 × 100 × 85 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000026443
Bosch Rexroth Gear pump AZPF-10-019LFO30PB-S0001 0510625369
£720.11 excl.
£864.13 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000219295
Bosch Rexroth Piston pump suitable for John Deere AN405695 A6VLE107EP163W
£8,153.32 excl.
£9,783.98 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000026471
Bosch Rexroth Gear pump AZPFFF-11-016/014/008LCP2020XXMX006XX-S and 0510665424
£1,673.09 excl.
£2,007.71 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000026399
Bosch Rexroth Gear pump AZPFF-11-011/008LCN20XXPX-S0173 0510565396
£441.47 excl.
£529.76 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000026450

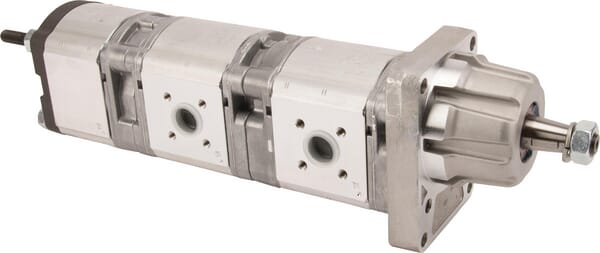

Bosch Rexroth Gear pump AZPFFF-10-016/016/008RSG202020PB-S0244 0510655018
£2,469.29 excl.
£2,963.15 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000026501

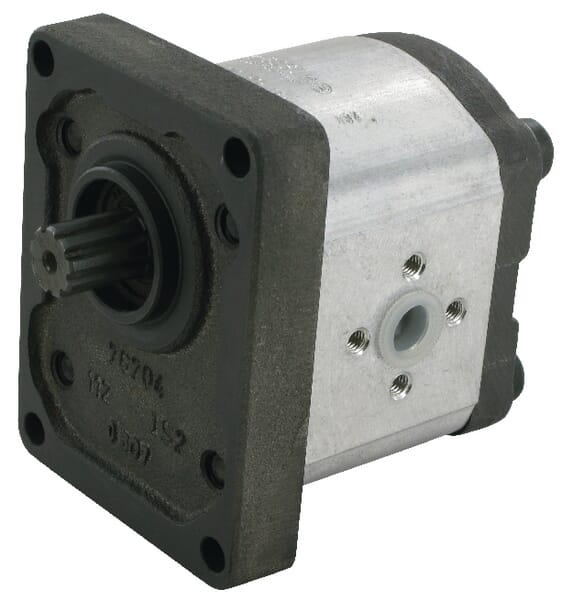

Bosch Rexroth Gear pump AZPF-21-022LFO30PB 0510725348
