£1,761.41
excl. VAT
£2,113.69 incl. VAT
£2,113.69
incl. VAT
£1,761.41 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Displacement | 14 cm³/rev, 11 cm³/rev |
|---|---|
| Flange and back cover material | Cast iron |
| Flange code | R |
| Flange type norm | SAE-A |
| Max. continous working pressure | 250 BAR, 220 BAR |
| Max intermittend working pressure | 280 BAR, 250 BAR |
| Max pressure peak | 300 BAR, 270 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 600 r/min |
| Mounting diameter | 82.55 mm |
| Mounting holes horizontal distance | 106.4 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pump group code | 2 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 16.5 mm |
| Shaft number of teeth | 9 |
| Shaft thread diameter | n/a |
| Shaft thread type | n/a |
| Shaft type | Splined 9T |
| Shaft type code | F |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 8103 g |
| Dimensions | 270 × 180 × 135 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000026430
Bosch Rexroth Gear pump AZPF-11-016LCB20MB 0510625315
£354.30 excl.
£425.16 incl.
In stock
Expected to ship on Friday 18 September

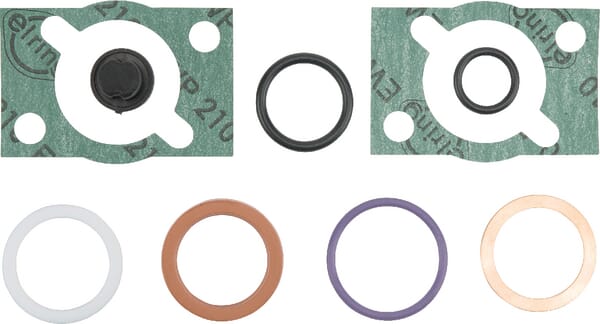

BPA000050879
Bosch Rexroth Seal kit brake valve 1537010247 1537010247
£38.58 excl.
£46.30 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000026349
Bosch Rexroth Gear pump AZPF-11-011LCP20MB-S0007 0510515323
£577.39 excl.
£692.87 incl.
In stock
Expected to ship on Friday 18 September
Free shipping

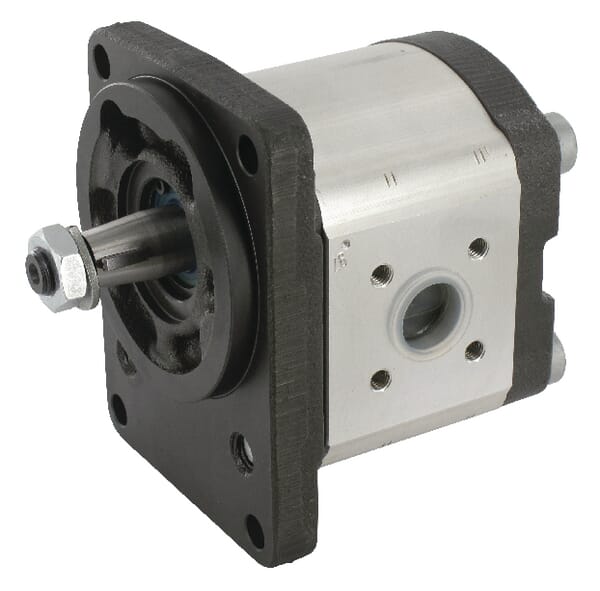

BPA000026500
