£298.65
excl. VAT
£358.38 incl. VAT
£358.38
incl. VAT
£298.65 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options |
| Displacement | 21.14 cm³/rev |
| Flange code | E2 |
| Flange type norm | European |
| Housing material | Aluminium |
| Main port size code | n/a |
| Main port thread type | BSP |
| Max. continous working pressure | 170 BAR |
| Max intermittend working pressure | 187 BAR |
| Max pressure peak | 204 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 500 r/min |
| Number of mounting holes | 4 |
| Port position | End |
| Pressure port size code | n/a |
| Pressure port thread type | BSP |
| Properties | Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 3 |
| Rotation direction | n/a |
| Sealing type | n/a |

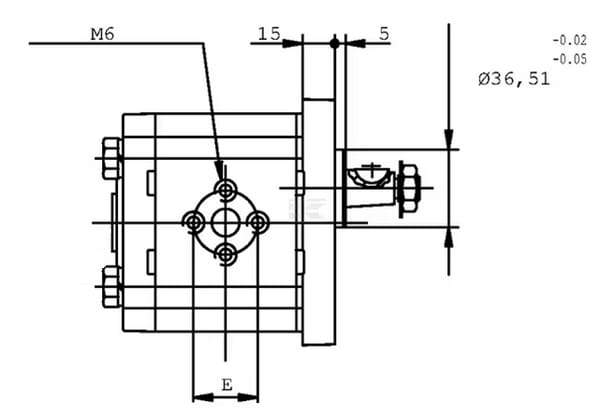

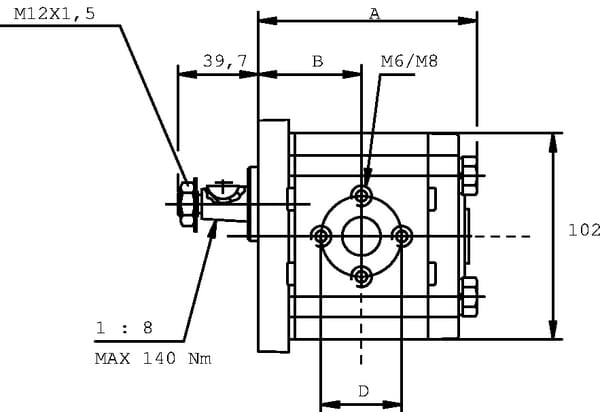

| Shaft cone size code | 1:8 |
| Shaft diameter | 16.65 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric fine |
| Shaft type | Tapered |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2887 g |
| Dimensions | 170 × 120 × 90 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000279314
Casappa Pump FP30.100D0-19T1 LGG/GG-N FP30100D
£856.06 excl.
£1,027.27 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340284
Casappa Pump PLP20.16S0-54B4-LBE/BC-N-EL FS PLP2016S054B4
£338.64 excl.
£406.37 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340345
Casappa Pump PLP20.4D0-54B2-LBE/BC-N-EL FS PLP204D054B2
£324.06 excl.
£388.87 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340193
Casappa Rear section PLP10.4 D0-88V6-LBB/BA-N-I FS PLP104DII
£225.84 excl.
£271.01 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000301261
Casappa Pump LEB/EA KP206D082E2
£376.09 excl.
£451.31 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340219
Casappa Pump PLP20.11,2D0-82E2-LEA/EA- PLP2011D082E2
£103.60 excl.
£124.32 incl.
In stock
Expected to ship on Monday 21 September
Recently viewed
Free shipping
BPA000214096
Kverneland Boom part 2nd. HSS 27-30 L/H A138382577
£2,683.60 excl.
£3,220.32 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000173782

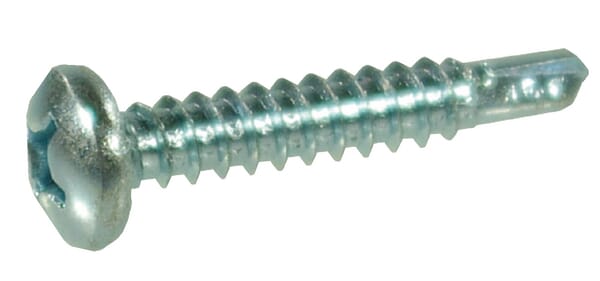

Kramp Self tapping screw 4.8x16mm PH2 pan head, DIN 7504 7504N4816P200
