£367.94
excl. VAT
£441.53 incl. VAT
£441.53
incl. VAT
£367.94 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Benefits | Wide range of applications, Compact design |
|---|---|

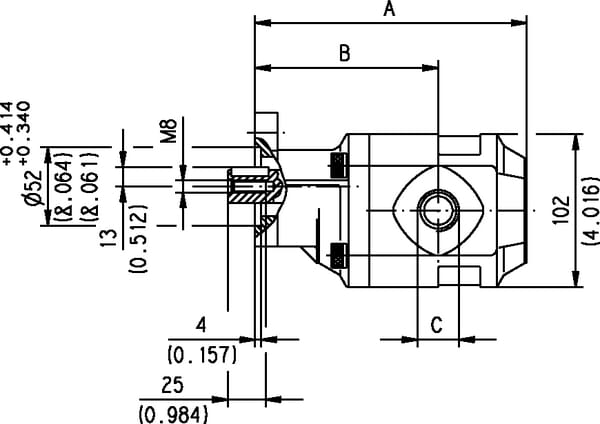

| Connection port to flange distance | 122 mm |
| Details | High performance even at low speeds |
| Displacement | 40 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | T0 |
| Flange type norm | Italian |
| Housing length | 181 mm |
| Housing material | Cast iron |
| Max. continous working pressure | 160 BAR |
| Max intermittend working pressure | 180 BAR |
| Max pressure peak | 190 BAR |
| Max rotation speed | 1800 r/min |

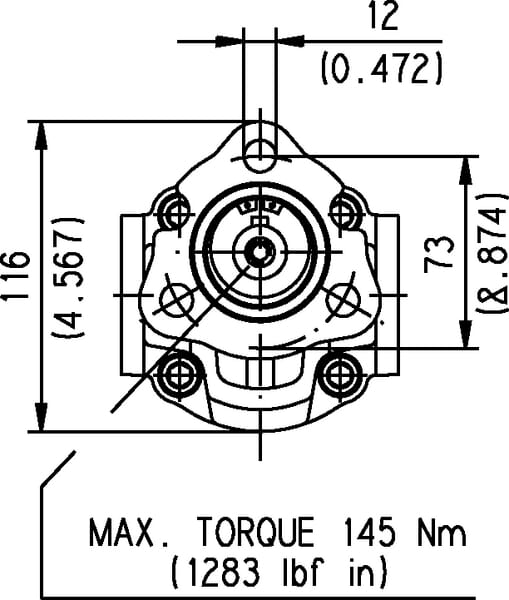

| Mounting diameter | 52 mm |
| Mounting holes horizontal distance | 73 mm |
| Mounting holes vertical distance | 73 mm |
| Number of mounting holes | 3 |
| Port position | Side |
| Pressure port thread type | BSP |
| Properties | Different connection positions, Low noise emission, Customer-specific design possible |
| Pump group code | 3 |
| Rotation direction | Bi-directional |
| Sealing type | Standard |
| Shaft cone size code | n/a |

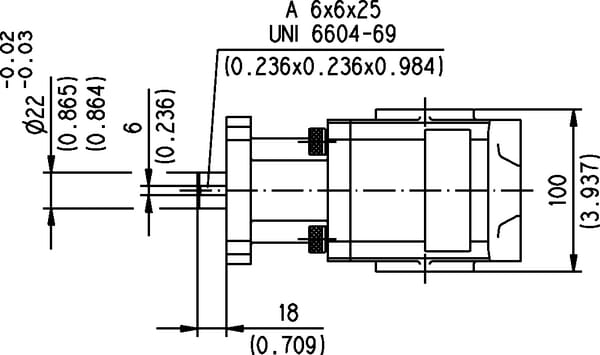

| Shaft diameter | 22 mm |
| Shaft type | Cylindrical |
| Shaft type code | 43 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 7126 g |
| Dimensions | 215 × 125 × 95 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340187

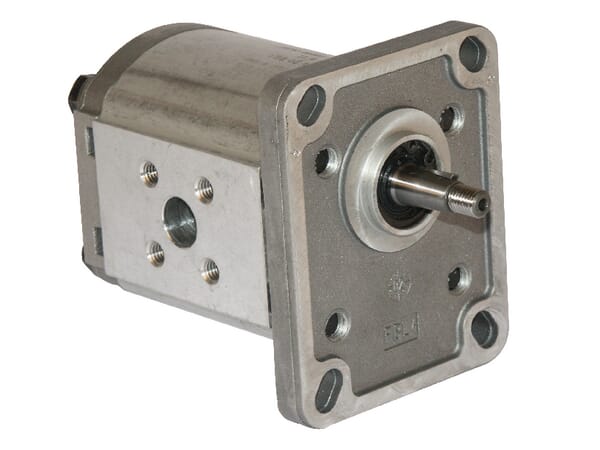

Casappa Pump PLP10.3,15 D0-81E1-LBB/BA PLP103D081E1
£163.16 excl.
£195.79 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340461

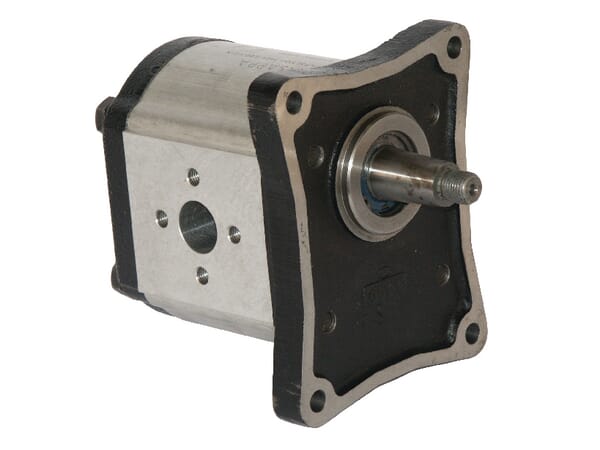

Casappa Pump PLP 30.90-D0 84-E4 LEF/ED PLP3090D084E4
£745.51 excl.
£894.61 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340444

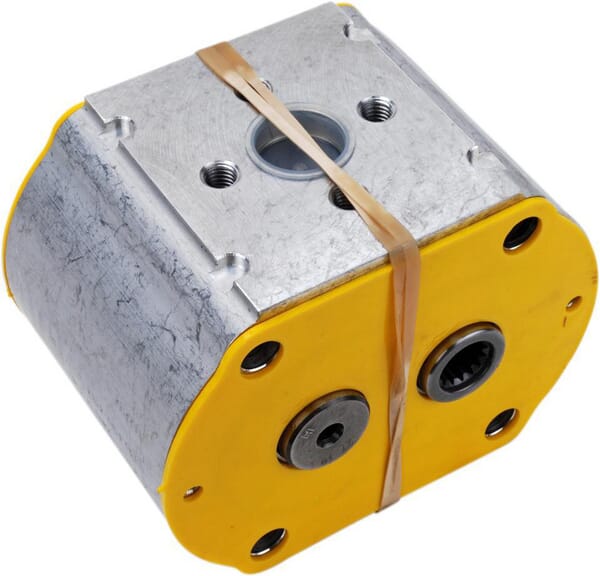

Casappa Tandem pump PLP30.51-D0-65-M6-LED/EB-N-I-FS PLP3051DII
£535.00 excl.
£642.00 incl.
In stock
Expected to ship on Monday 21 September
Free shipping

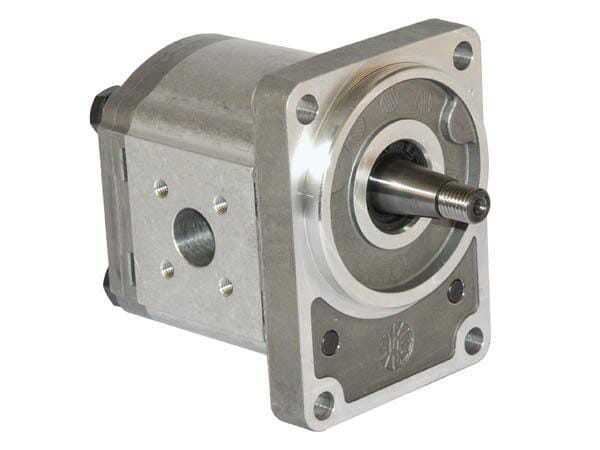

BPA000340356
Casappa Pump PLP20.4S0-54B2-LBE/BC-N-EL FS PLP204S054B2
£324.06 excl.
£388.87 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340292

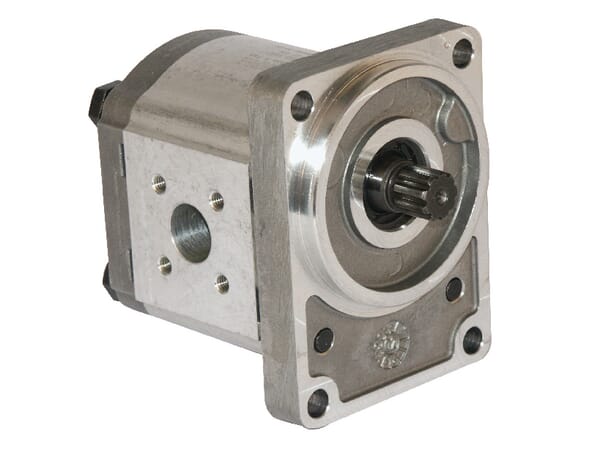

Casappa Pump PLP20.20D0-12B2-LBE/BC-N-EL FS PLP2020D012B2
£340.66 excl.
£408.79 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340423

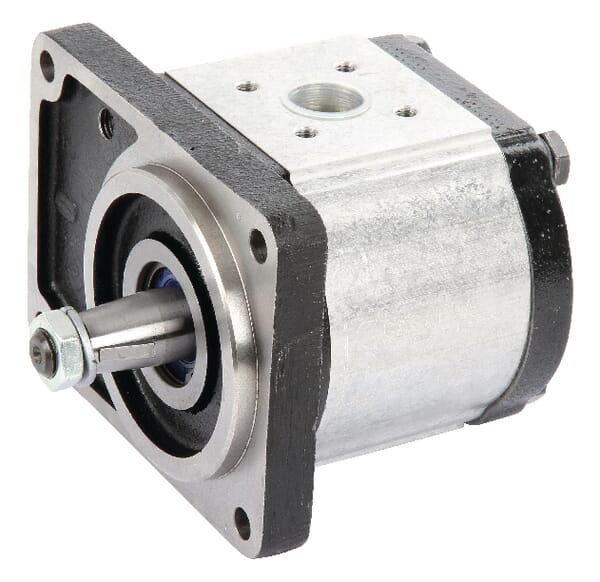

Casappa Pump PLP30.38D0-56B3-LBM/BL-N PLP3038D056B3
