£340.66
excl. VAT
£408.79 incl. VAT
£408.79
incl. VAT
£340.66 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|

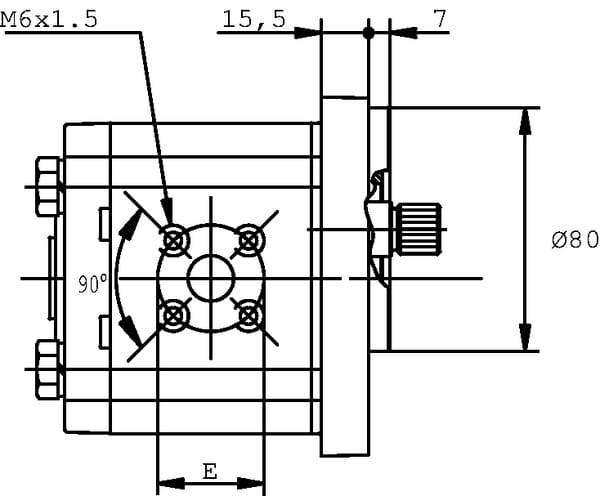

| BConnection port to flange distance | 56.8 mm |
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |

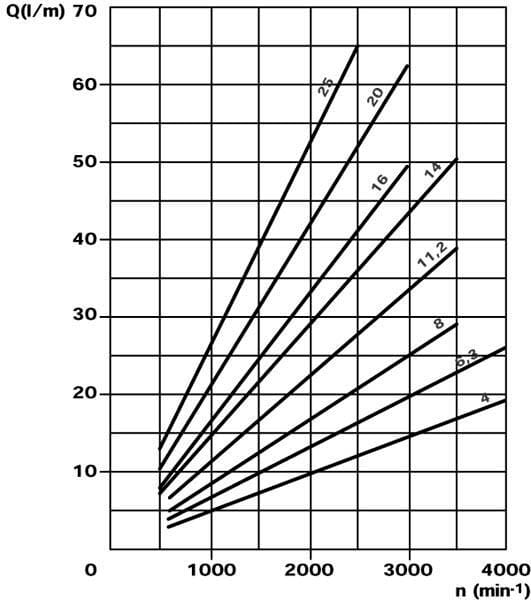

| Displacement | 21.14 cm³/rev |
| DSuction port bolts circle diameter | 40 mm |
| EPressure port bolts circle diameter | 35 mm |
| Flange and back cover material | Aluminium |
| Flange code | B2 |
| Flange type norm | German |
| Housing length | 118.3 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 200 BAR |
| Max intermittend working pressure | 220 BAR |
| Max pressure peak | 240 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 500 r/min |

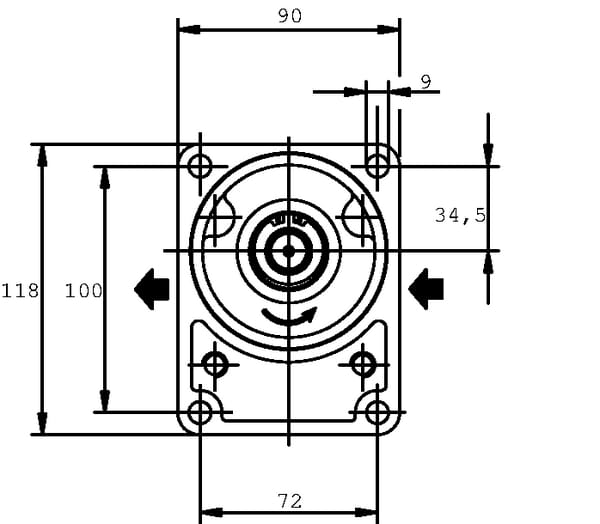

| Mounting diameter | 80 mm |
| Mounting holes horizontal distance | 72 mm |
| Mounting holes vertical distance | 100 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Properties | Consists of 3 parts, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |

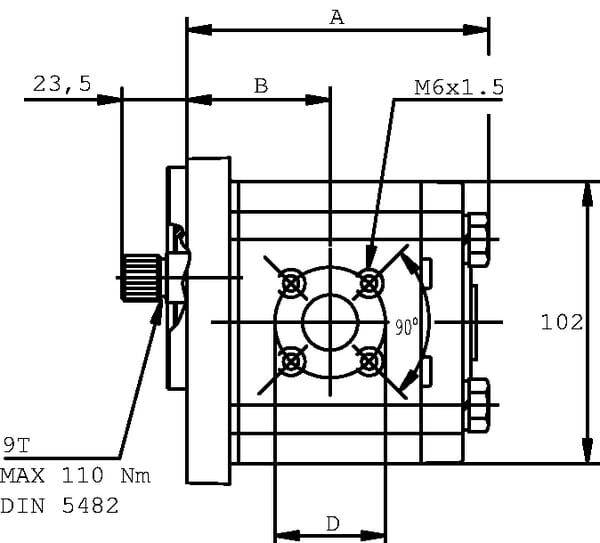

| Shaft diameter | 16.5 mm |
| Shaft number of teeth | 9 |
| Shaft type | Splined 9T |
| Shaft type code | 12 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3000 g |
| Dimensions | 145 × 115 × 90 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340506

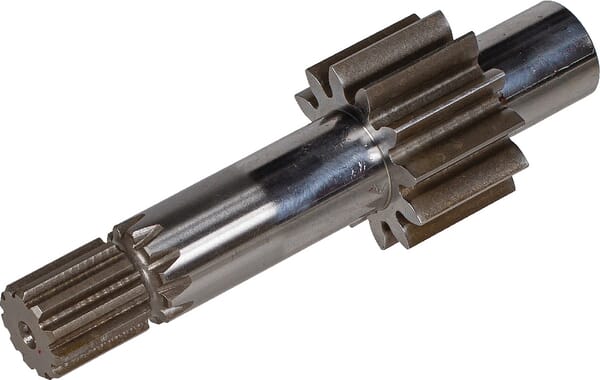

Casappa Drive shaft 16 cc 07/FS PLP9201607FS
£168.31 excl.
£201.97 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340085

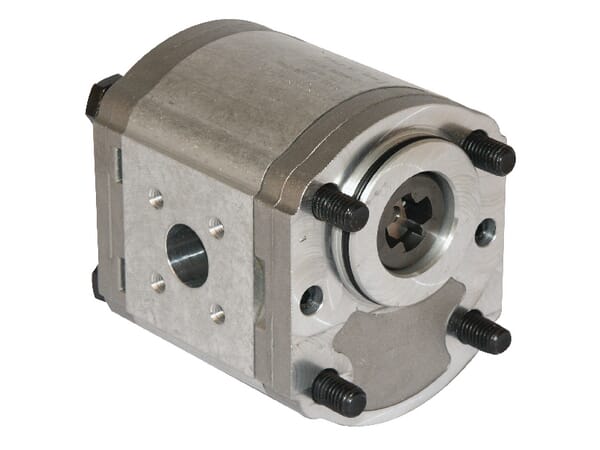

Casappa Motor PLM10.2R0-81E1-LBA/BB-N-EL PLM102R81E1
£381.14 excl.
£457.37 incl.
In stock
Expected to ship on Monday 21 September
BPA000279338

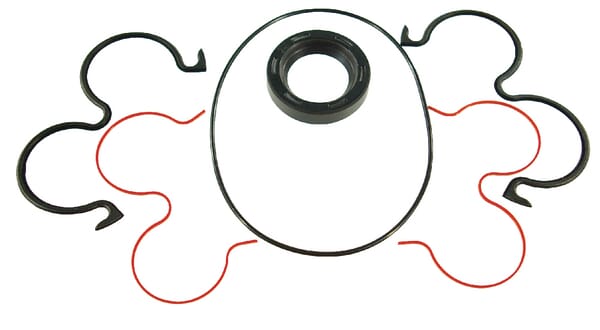

Casappa Seal kit FP30/D-S/T2 FP309DST2AFD
£22.51 excl.
£27.01 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340509
Casappa Drive shaft pump 16cc DII/DIIB PLP92016IIIFSAS
£130.61 excl.
£156.73 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340197

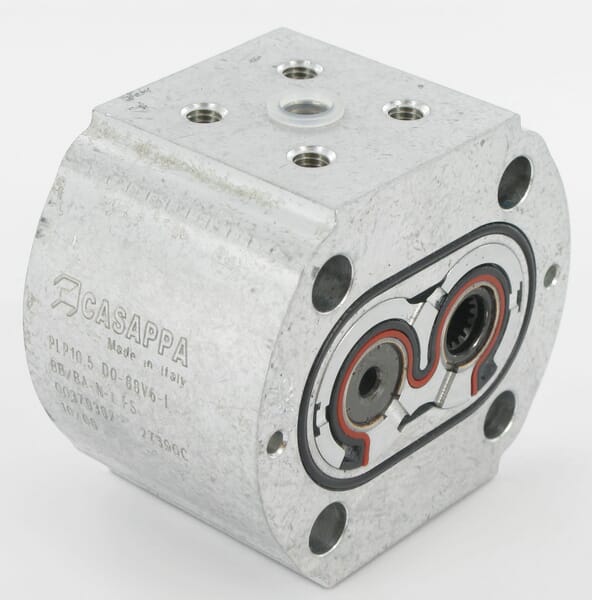

Casappa Rear section PLP10.5 D0-88V6-LBB/BA-N-I FS PLP105DII
