£352.08
excl. VAT
£422.50 incl. VAT
£422.50
incl. VAT
£352.08 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

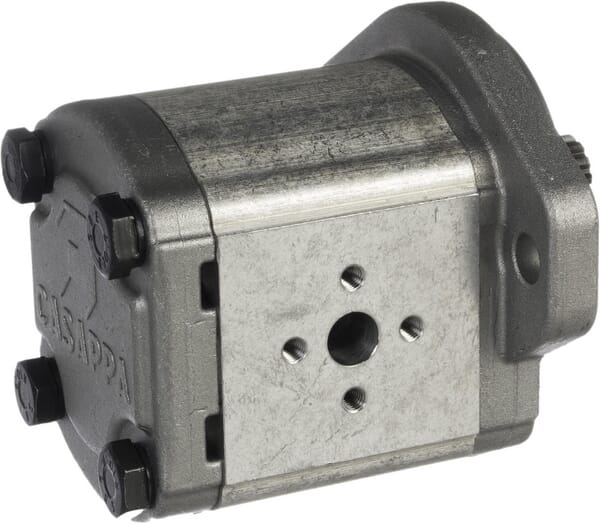

Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 14.53 cm³/rev |
| Flange and back cover material | Aluminium |
| Flange code | S1 |
| Flange type norm | SAE-A |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 3500 r/min |
| Min rotation speed | 500 r/min |

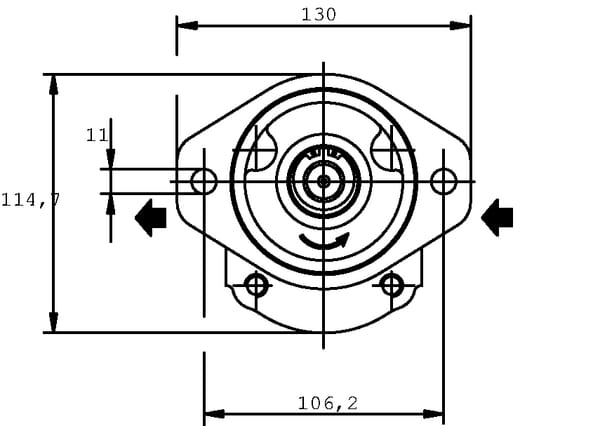

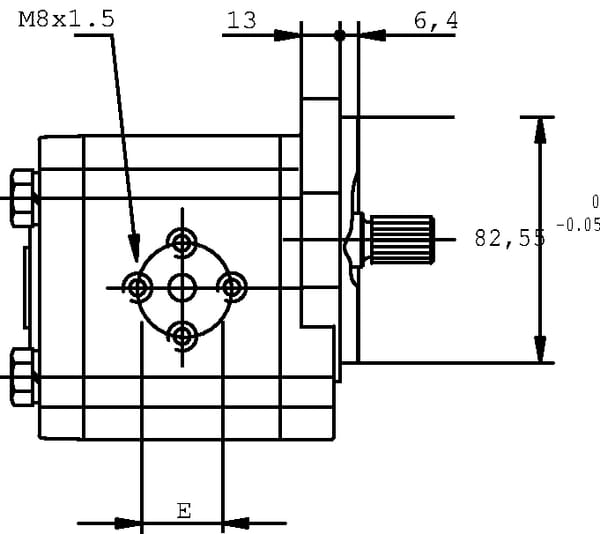

| Mounting diameter | 82.55 mm |
| Mounting holes horizontal distance | 106.2 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Properties | Consists of 3 parts, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 19 mm |
| Shaft number of teeth | 11 |
| Shaft thread diameter | n/a |
| Shaft type | Splined 11T |
| Shaft type code | 07 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2685 g |
| Dimensions | 171 × 92 × 119 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340231
Casappa Pump PLP20.11,2S0-54B5-LBE/BC- PLP2011S054B5
£322.08 excl.
£386.50 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340233
Casappa Pump PLP20.11,2S0-95B6-LBE/BC-N-EL PLP2011S095B6
£315.30 excl.
£378.36 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340394
Casappa Pump PLP20.8S0-54B2-LBE/BC-N-EL FS PLP208S054B2
£324.06 excl.
£388.87 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340380
Casappa Pump PLP20.8D0-03S2-LEA/EA-N-EL-FS PLP208D003S2
£292.62 excl.
£351.14 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340191
Casappa Pump PLP10.4 D0-81E1-LBB/BA-N- PLP104D081E1
£224.11 excl.
£268.93 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340302
Casappa Gearbox with pump group 2 20cc PLP2020GBF20235KIT
£560.32 excl.
£672.38 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
BPA000109802
Kramp Oil seal 40x70x10mm type:CC DIN 3760 10x 407010CCP010
£23.16 excl.
£27.79 incl.
In stock
Expected to ship on Thursday 24 September
BPA000307231
Kramp Shorts black and grey XL Kramp Original KW102231089106
£37.95 excl.
£45.54 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000304458

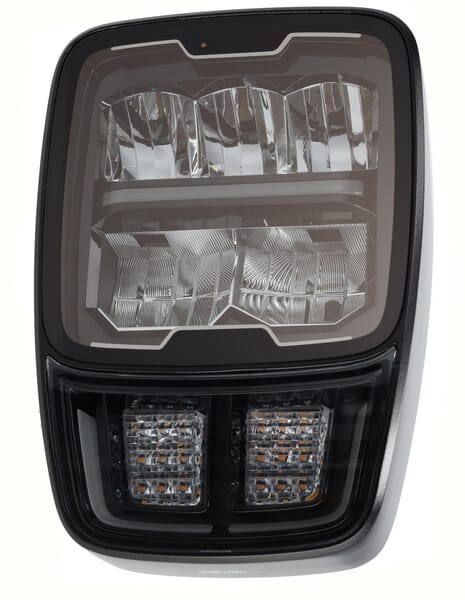

Kramp Headlight LED, rectangular, 12/24V, 220x197.2x80.5mm, Heated, High beam/Low beam, anti-snow, left/right vertical LA1021VHEAT
