Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| Benefits | Long service life, Wide range of applications, Low space requirement |
| Center to center pressure side | 40 mm |
| Center to center suction side | 51 mm |
| Connection | European 4-hole flange |
| Details | High operating pressure:, High efficiency at high temperatures, Solid and compact design |
| Length body | 155 mm |
| Length flange to center bore | 100 mm |
| Material | Pump housing, flange and back cover: Steel |
| P1 (bar) | 200 BAR |
| Pressure flange | 2 G-12 |
| Pressure max. | Pressure continuous (p1): 250 BAR |
| Properties | Low noise emission, Customer-specific design possible |
| Rotational speed min. | 350 r/min |
| Rotation max. | 2500 r/min |
| Seal | der no.: KM93034E3 |
| Shaft type | Tapered shaft 1 : 8 |
| Stroke volume | 61,26 cm³/rev |
| Suction flange | 3 G-12 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 14470 g |
| Dimensions | 205 × 153 × 137 mm |
| Dangerous goods | No |
You might also like
BPA000340471
Casappa Front cover pl. 10-E1/AL C PLP910E1ALC
£28.37 excl.
£34.04 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340503
Casappa Drive Shaft 14 cc 04/FS PLP9201404FS
£172.27 excl.
£206.72 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340179
Casappa Pump PLP10.2 D0-81E1-LBB/BA-N- PLP102D081E1
£231.36 excl.
£277.63 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340402
Casappa Pump PLP30.22D0-04S5-LEF/ED-N-FS PLP3022D004S5
£496.83 excl.
£596.20 incl.
In stock
Expected to ship on Monday 21 September
BPA000340045

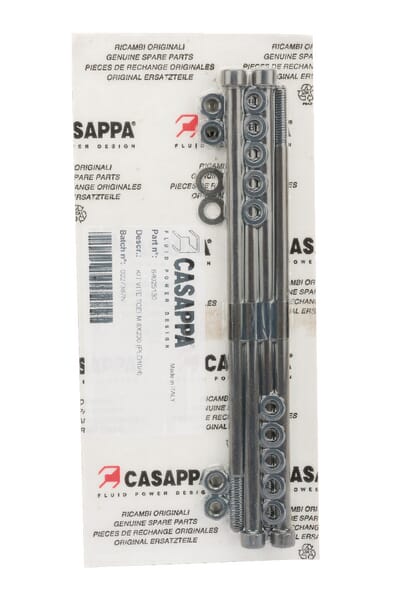

Casappa Screw set M8x230 (PLD10/4) PLD910M8230
