£349.26
excl. VAT
£419.11 incl. VAT
£419.11
incl. VAT
£349.26 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| B | 35 mm |
|---|---|
| Connection | 4-hole flange to European standard. leakage oil connection 1/8" BSP |
| D | 30 mm |
| E | 30 mm |
| Length body | 73 mm |
| Material | Aluminium |
| Note | Always connect leakage oil line |
| P1 (bar) | 260 BAR |
| Pressure flange | 1 GQ-06 |
| Pressure max. | Max. pressure in the leakage oil line 5 bar BAR |
| Product details | European flange, Tapered shaft 1:8, European front flange, Spigot 25.4mm, Drain connection 1/8" BSP, connect to free return, max. : 5 bar, Limited axial and radial loads, For chain and belt drives, it is necessary to use a support bearing |
| Pros | Versatile for heavy-duty conditions |
| Rotational speed min. | 650 r/min |
| Rotation max. | 4000 r/min |
| Seal | Order no.: PLM 9-10AFD |
| Shaft type | Conical 1:8 |
| Stroke volume | 3,34 cm³/rev |
| Suction flange | 1 GQ-06 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 930 g |
| Dimensions | 105 × 90 × 90 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000279315
Casappa Pump FP30.125D0-19T1 LGG/GG-N FP30125D
£961.61 excl.
£1,153.93 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340341
Casappa Triple pump PLP20.4-01S1-LRD/2 PLP204206206
£1,748.08 excl.
£2,097.70 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000285986

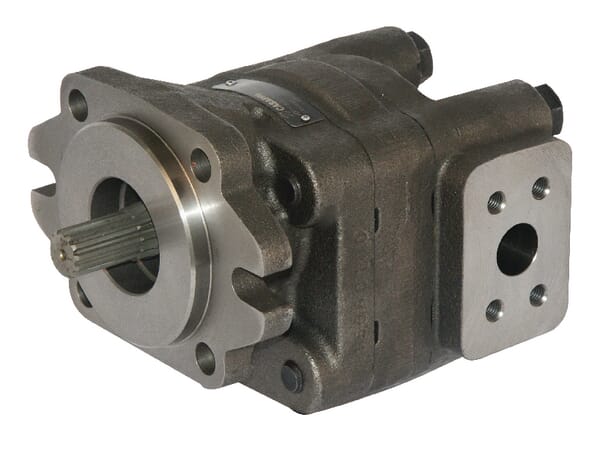

Casappa Pump HDP30.51 D0-04S3 LMD/MC-N HDP3051D
£813.84 excl.
£976.61 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000340639
Casappa Set of seals PLP30 04/32-S5 PLP93004S5
£40.91 excl.
£49.09 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340217
Casappa Pump PLP20.11,2D0-54B4-LBE/BC-N-EL FS PLP2011D054B4
£322.07 excl.
£386.48 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000301039

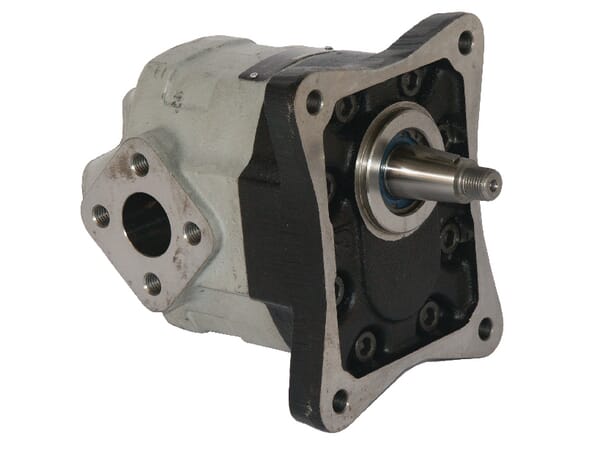

Casappa Motor KM 30.73 RO-84E4-LED/EF KM3073R84E4
