£818.68
excl. VAT
£982.42 incl. VAT
£982.42
incl. VAT
£818.68 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| AHousing length | 168.5 mm |
|---|---|
| BConnection port to flange distance | 118.5 mm |
| Benefits | Wide range of applications, Compact design |
| CMain port thread diameter | 1/2 Inch |
| Details | High performance even at low speeds, Can be mounted directly on the PTO shaft |
| Displacement | 17.28 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | Z0 |
| Flange type norm | ISO |
| Housing material | Cast iron |
| Max. continous working pressure | 290 BAR |
| Max intermittend working pressure | 315 BAR |
| Max pressure peak | 325 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 300 r/min |
| Mounting diameter | 80 mm |
| Mounting holes horizontal distance | 80 mm |
| Mounting holes vertical distance | 80 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port thread type | BSP |
| Properties | Different connection positions, Low noise emission, Customer-specific design possible |
| Pump group code | 3 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 36 mm |
| Shaft number of teeth | 8 |
| Shaft type | Splined 8T |
| Shaft type code | 16 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 11578 g |
| Dimensions | 425 × 270 × 190 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340554
Casappa Antriebswelle PLP20.16/III/FS-L separate zuig PLP920AS16
£142.35 excl.
£170.82 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340526

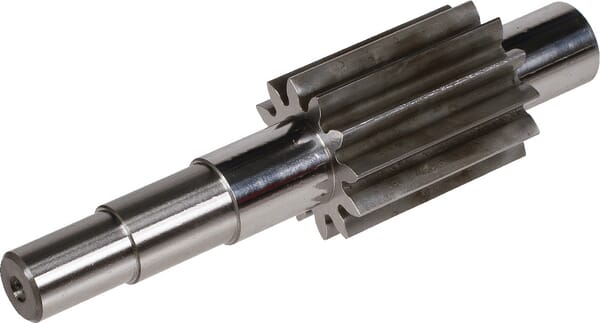

Casappa Drive shaft 31 cc 31/FS PLP92031531FS
£162.14 excl.
£194.57 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000285983
Casappa Pump HDP30.17 D0-04S3 LMB/MA-N HDP3017D
£609.16 excl.
£730.99 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340443
Casappa Pump PLP30.51D0-84E4-LED/ED-N PLP3051D084E4
£680.80 excl.
£816.96 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340101

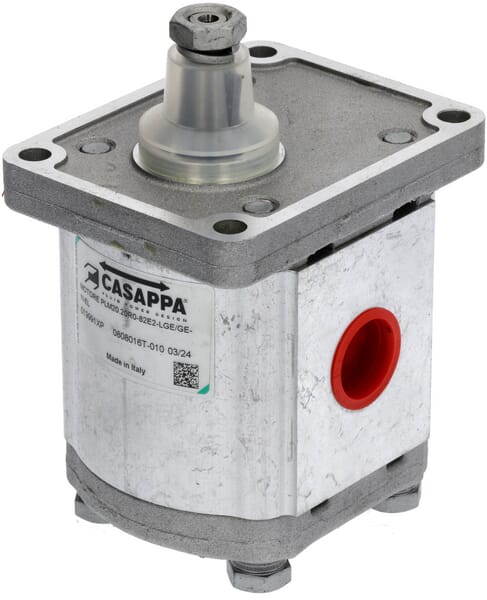

Casappa Gear motor PLM20.20-R0-82E2-LGE PLM2020R082E2GE
