£830.67
excl. VAT
£996.80 incl. VAT
£996.80
incl. VAT
£830.67 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

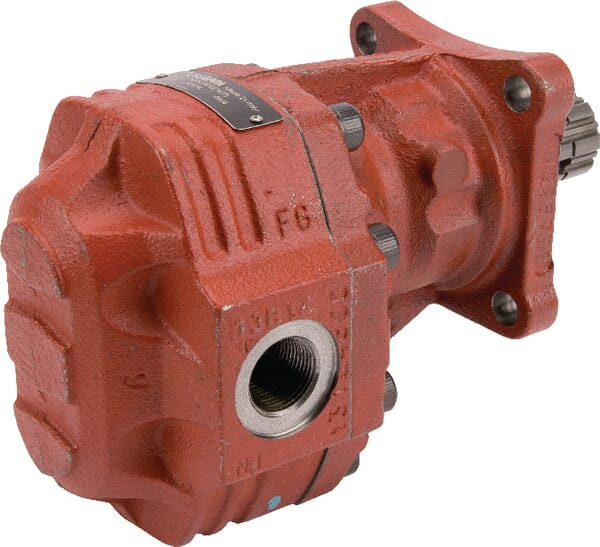

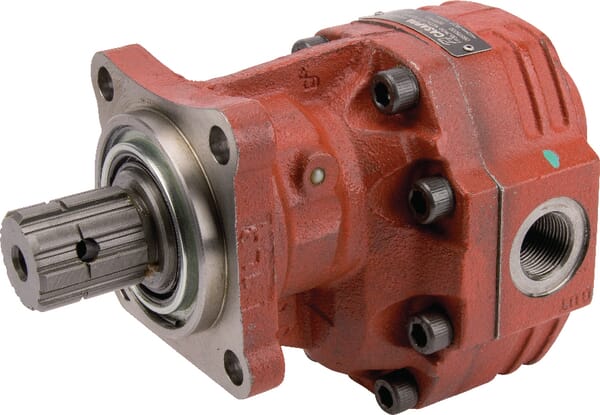

Product details

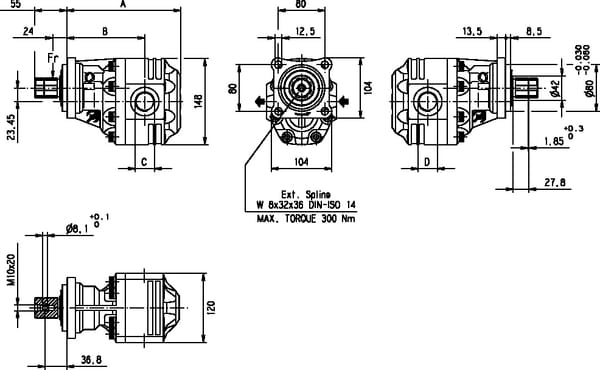

| AHousing length | 179.5 mm |
|---|---|
| BConnection port to flange distance | 124.5 mm |
| Benefits | Wide range of applications, Compact design |
| CMain port thread diameter | 3/4 Inch |
| Details | High performance even at low speeds, Can be mounted directly on the PTO shaft |
| Displacement | 34.56 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | Z0 |
| Flange type norm | ISO |
| Housing material | Cast iron |
| Max. continous working pressure | 280 BAR |
| Max intermittend working pressure | 300 BAR |
| Max pressure peak | 310 BAR |
| Max rotation speed | 2800 r/min |
| Min rotation speed | 300 r/min |
| Mounting diameter | 80 mm |
| Mounting holes horizontal distance | 80 mm |
| Mounting holes vertical distance | 80 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port thread type | BSP |
| Properties | Different connection positions, Low noise emission, Customer-specific design possible |
| Pump group code | 3 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 36 mm |
| Shaft number of teeth | 8 |
| Shaft type | Splined 8T |
| Shaft type code | 16 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 11457 g |
| Dimensions | 255 × 155 × 150 mm |
| Dangerous goods | No |
You might also like
BPA000279388
Casappa Koppelset KIT56M2 (FP30/FP30) FP93056M2
£96.63 excl.
£115.96 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340197
Casappa Rear section PLP10.5 D0-88V6-LBB/BA-N-I FS PLP105DII
£229.00 excl.
£274.80 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340398
Casappa Pump PLP20.8S0-95B6-LBE/BC-N-EL PLP208S095B6
£313.64 excl.
£376.37 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340408
Casappa Pump PLP30.27D0-04S5-LBM/BL-N PLP3027D004S5
£595.30 excl.
£714.36 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340228
Casappa Pump PLP20.11,2S0-12E2-LEA/EA- PLP2011S012E2
£292.49 excl.
£350.99 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping

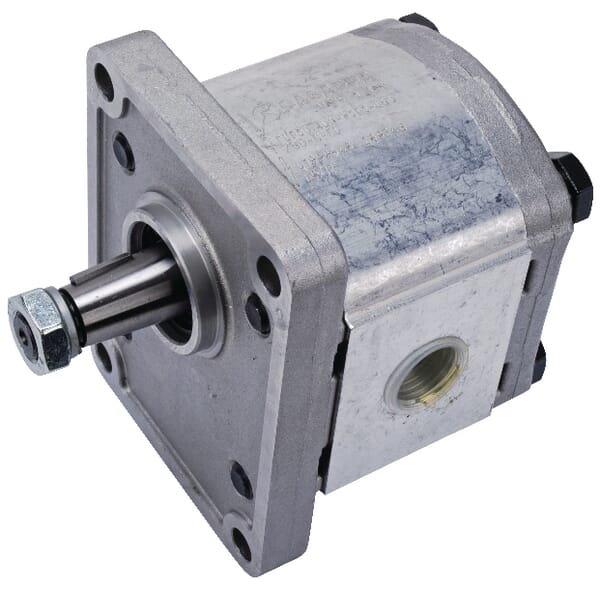

BPA000340349
Casappa Pump PLP20.4 D0-82E2-LGD/GD-N- PLP204D082E2G
£324.03 excl.
£388.84 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
Free shipping
BPA000401619
Weber Brush Systems Brush roller 300x300mm 8x2-row poly 1.5mm 2x WB300300P02
£335.17 excl.
£402.20 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000403660

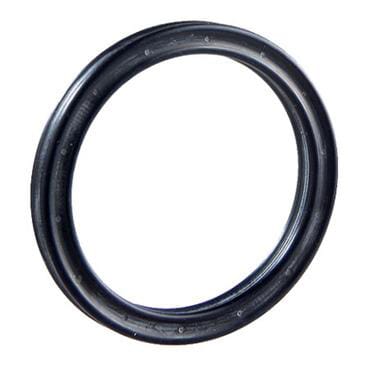

Kramp X-ring 91.67x3.53mm 70 shore XR9167353P001
£2.35 excl.
£2.82 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000049613
Honda Breather tube 15721ZL8000
£4.35 excl.
£5.23 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000308931
Kramp Marker light LH LED, 12-24V, 184.9x58x145.5mm, direction indicator, LA30164IND
£53.05 excl.
£63.66 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000352651

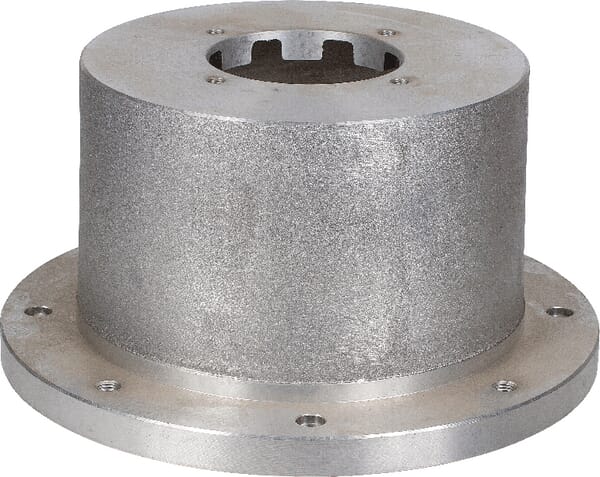

RaJa-Lovejoy Bell housing F E 300 SAE-C RV400204245
£385.27 excl.
£462.32 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000250091

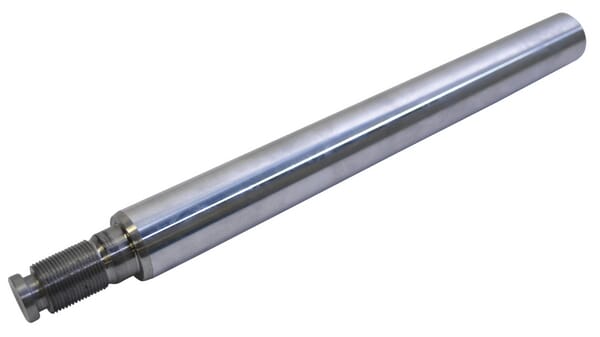

Kramp Rod 25 stroke 500 D50 L=646 DS3902506020500
£55.09 excl.
£66.11 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000272310
Mitsuboshi V-belt LA63" 12.5x1600 FGP421043
£21.97 excl.
£26.36 incl.
Backorder available
Usually ships within 3–8 weeks

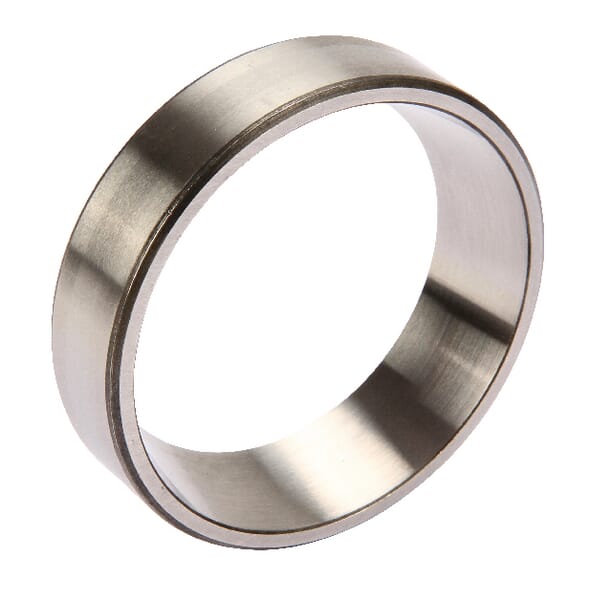

BPA000182061
