£338.64
excl. VAT
£406.37 incl. VAT
£406.37
incl. VAT
£338.64 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| BConnection port to flange distance | 54 mm |
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 21.14 cm³/rev |
| DSuction port bolts circle diameter | 40 mm |
| Flange and back cover material | Aluminium |
| Flange code | B4 |
| Flange type norm | German |
| Housing length | 115.5 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 200 BAR |
| Max intermittend working pressure | 220 BAR |
| Max pressure peak | 240 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 500 r/min |
| Mounting diameter | 50 mm |
| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Properties | Consists of 3 parts, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | 54 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2812 g |
| Dimensions | 104 × 123 × 159 mm |
| Dangerous goods | No |
You might also like
BPA000340469

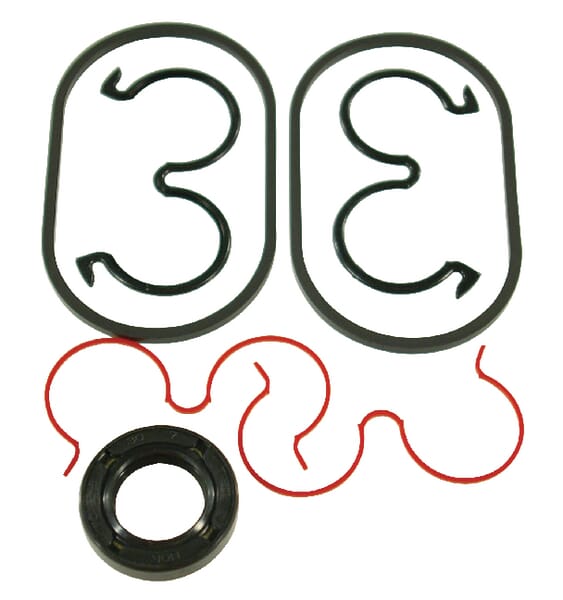

Casappa Seal kit PLP10-86E1/29E8 PLP91086E1AFD
£17.70 excl.
£21.24 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000340485
Casappa Tie bolts Polaris 10 M8x220 PLP910M8220
£54.25 excl.
£65.10 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340180
Casappa Pump PLP10.2.D0-81E1-LGC/GC-N- PLP102D081E1G
£205.55 excl.
£246.66 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340382
Casappa Pump PLP20.8D0-54B2-LBE/BC-N-EL FS PLP208D054B2
£327.00 excl.
£392.40 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340398
Casappa Pump PLP20.8S0-95B6-LBE/BC-N-EL PLP208S095B6
£313.64 excl.
£376.37 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000340488

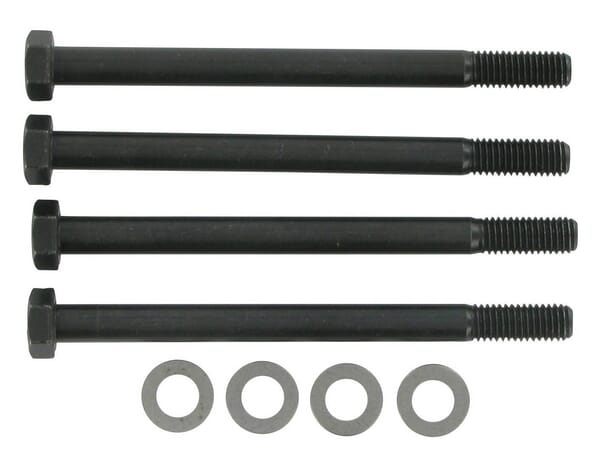

Casappa Bolt set M8X70 PLP910M870
£4.27 excl.
£5.12 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
Free shipping
BPA000169193

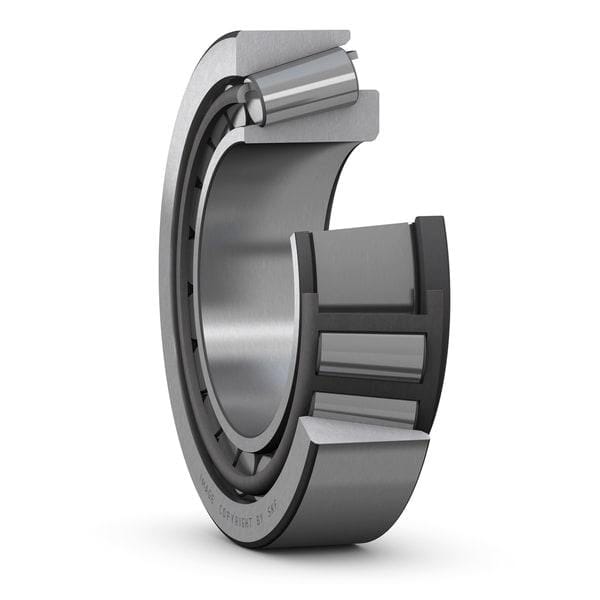

SKF Tapered roller bearing 105x160x35mm 750032021X
