£368.47
excl. VAT
£442.16 incl. VAT
£442.16
incl. VAT
£368.47 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September

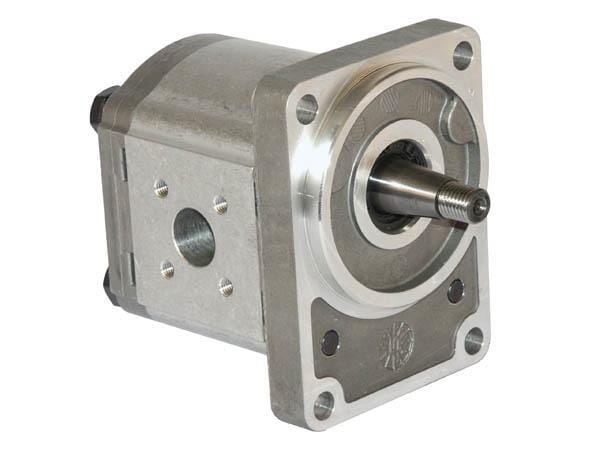

Product details
| Application range | Mobile applications, Industrial applications |
|---|---|

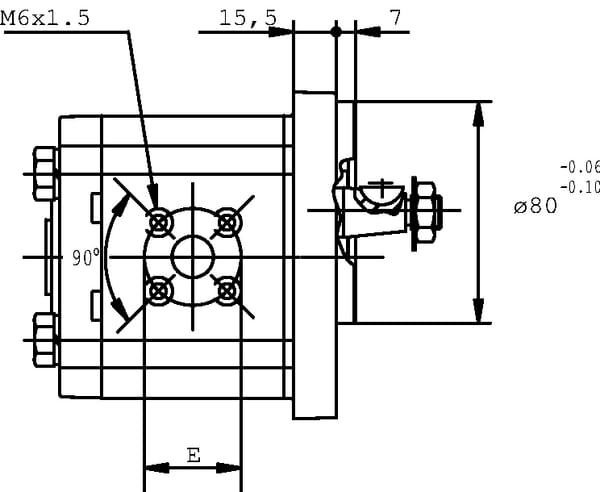

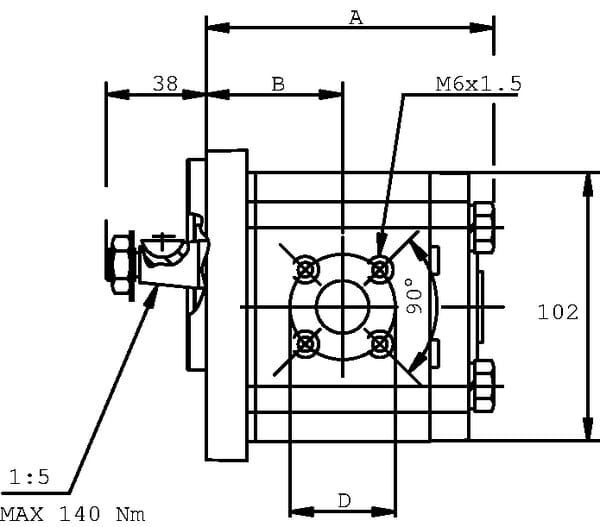

| BConnection port to flange distance | 56.8 mm |
| Benefits | Wide range of applications, Can be used under tough environmental conditions |
| Details | Various connection options, Outer housing pivoted |

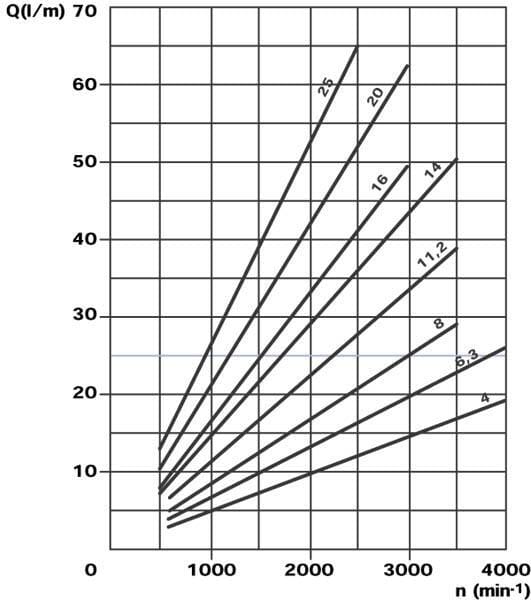

| Displacement | 21.14 cm³/rev |
| DSuction port bolts circle diameter | 40 mm |
| EPressure port bolts circle diameter | 35 mm |
| Flange and back cover material | Aluminium |
| Flange code | B2 |
| Flange type norm | German |
| Housing length | 118.3 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 200 BAR |
| Max intermittend working pressure | 220 BAR |
| Max pressure peak | 240 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 500 r/min |

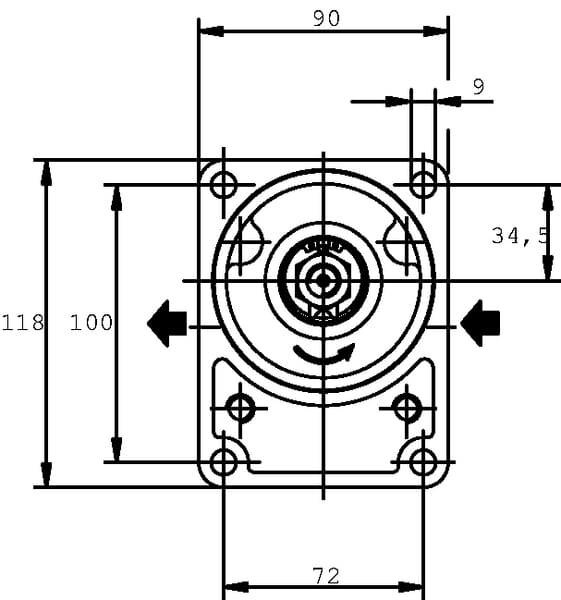

| Mounting diameter | 80 mm |
| Mounting holes horizontal distance | 72 mm |
| Mounting holes vertical distance | 100 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | 54 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
1GB08
OMT Flange angled 1/2 1GB08
£10.48 excl.
£12.58 incl.
2GB12
OMT Flange angled 3/4 2GB12
£16.63 excl.
£19.96 incl.
PLP92010
Casappa Seal 18X30 GR.2 PLP92010
£4.97 excl.
£5.96 incl.
PLP92026
Casappa Woodruff key PLP/PLM 20-54 PLP92026
£1.27 excl.
£1.52 incl.
PLP92035
Casappa Rear cap PLP 20 EL PLP92035
£32.19 excl.
£38.63 incl.
PLP92082E2
Casappa Seal kit 20-82 E2 PLP92082E2
£24.80 excl.
£29.76 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3200 g |
| Dimensions | 190 × 140 × 120 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340292

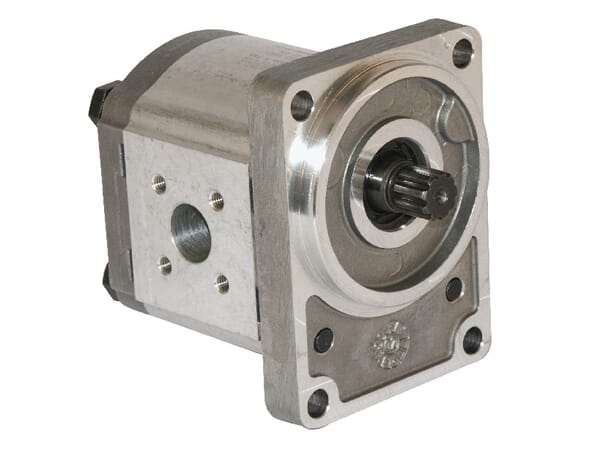

Casappa Pump PLP20.20D0-12B2-LBE/BC-N-EL FS PLP2020D012B2
£340.66 excl.
£408.79 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000301269

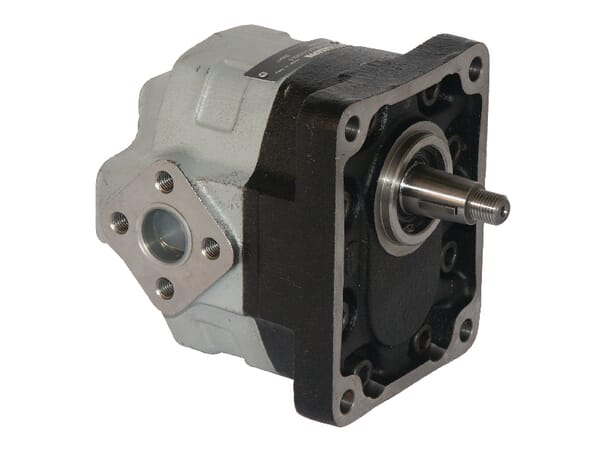

Casappa Pump LED/EB KP3038D083E3
£560.52 excl.
£672.62 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340397
Casappa Pump PLP20.8S0-82E2-LEA/EA-EL PLP208S082E2
£362.79 excl.
£435.35 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000279327
Casappa Pump FP30.43B0-16Z0-LGE/GE-xx FP3043BI16Z0
£1,284.48 excl.
£1,541.38 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000231961
Casappa Pump APL82B0-43T0-N APL82B
£625.12 excl.
£750.14 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340033

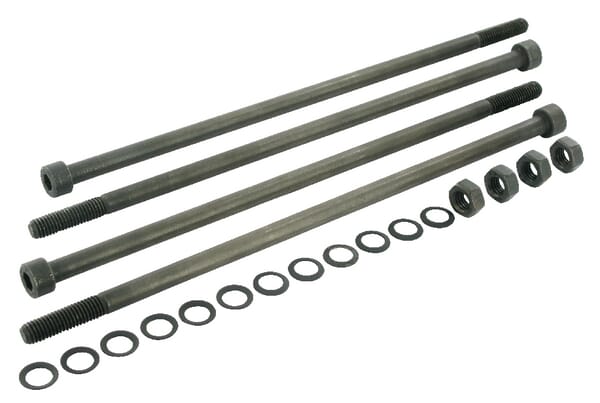

Casappa Tie bolts kit PLD10/3 M8x230 PLD9103BEV
