£386.10
excl. VAT
£463.32 incl. VAT
£463.32
incl. VAT
£386.10 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| BConnection port to flange distance | 58 mm |
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 26.42 cm³/rev |
| DSuction port bolts circle diameter | 40 mm |
| Flange and back cover material | Cast iron |
| Flange code | B4 |
| Flange type norm | German |
| Housing length | 123.5 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 170 BAR |
| Max intermittend working pressure | 190 BAR |
| Max pressure peak | 210 BAR |
| Max rotation speed | 2500 r/min |
| Min rotation speed | 500 r/min |
| Mounting diameter | 50 mm |
| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Properties | Consists of 3 parts, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | 54 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
1GB08
OMT Flange angled 1/2 1GB08
£10.48 excl.
£12.58 incl.
2GB12
OMT Flange angled 3/4 2GB12
£16.63 excl.
£19.96 incl.
PLP92010
Casappa Seal 18X30 GR.2 PLP92010
£4.97 excl.
£5.96 incl.
PLP92026
Casappa Woodruff key PLP/PLM 20-54 PLP92026
£1.27 excl.
£1.52 incl.
PLP92035
Casappa Rear cap PLP 20 EL PLP92035
£32.19 excl.
£38.63 incl.
PLP92082E2
Casappa Seal kit 20-82 E2 PLP92082E2
£24.80 excl.
£29.76 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 4130 g |
| Dimensions | 170 × 102 × 88 mm |
| Dangerous goods | No |
You might also like
BPA000340621
Casappa Tie bolts polaris 20 M10x255 PLP920M10255
£19.87 excl.
£23.84 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000340141
Casappa Seal kit Polaris 20-31S1 Viton PLM92031S1VAFD
£62.91 excl.
£75.49 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340124
Casappa Motor PLM30.38R0-83E3-LEB/ED-N PLM3038R83E3
£762.00 excl.
£914.40 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340406
Casappa Pump PLP30.22S0-04S5-LED/EB-N-FS PLP3022S004S5
£535.34 excl.
£642.41 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340347
Casappa Pump PLP 20.4 -D0 54-B5 LBC/BE PLP204D054B5
£322.07 excl.
£386.48 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000365472
Casappa Gasket for SR9 SR99001
£0.61 excl.
£0.74 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000405399
GLT/LHG Plain bearing bush 40x44x50mm ZB404450DIN
£12.90 excl.
£15.48 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000329254
Kramp O-ring 183.74x3.53mm 70 shore OR18374353P001
£1.87 excl.
£2.24 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000249994
Kramp Tube 70mm stroke 300 L=404 DS29070070300
£67.28 excl.
£80.74 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000023973

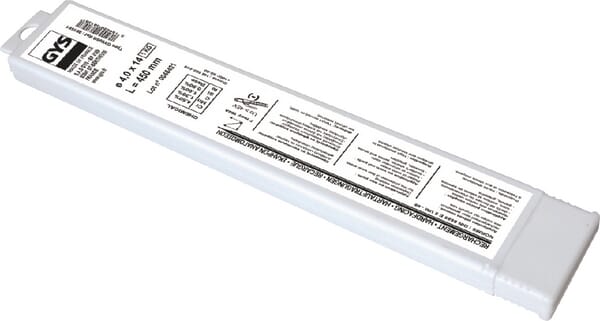

Gys Welding rod, 600HB 4.0x450mm (14x) 081581GYS
£31.04 excl.
£37.25 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000114754

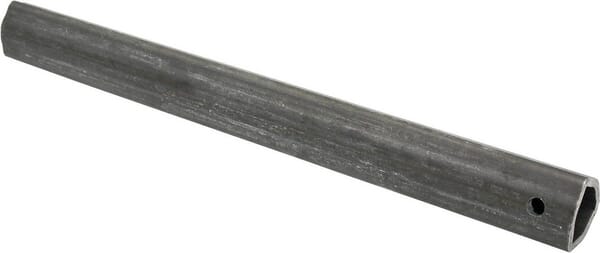

Comer Profile tube inner triangular T40 diameter in: 27 diameter out: 36x4.5mm L: 0.38m 4300153140107
