£535.34
excl. VAT
£642.41 incl. VAT
£642.41
incl. VAT
£535.34 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

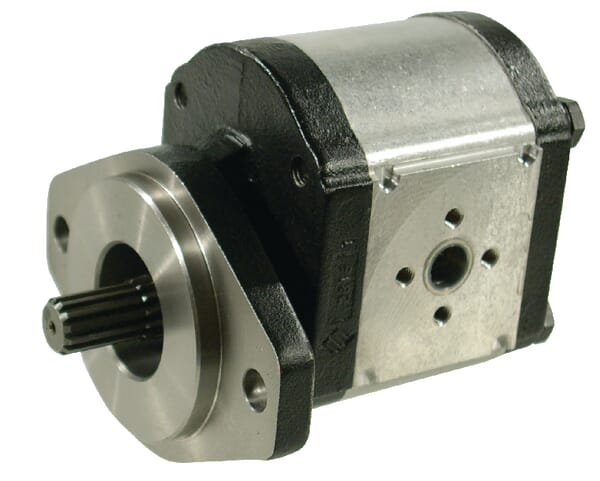

Product details

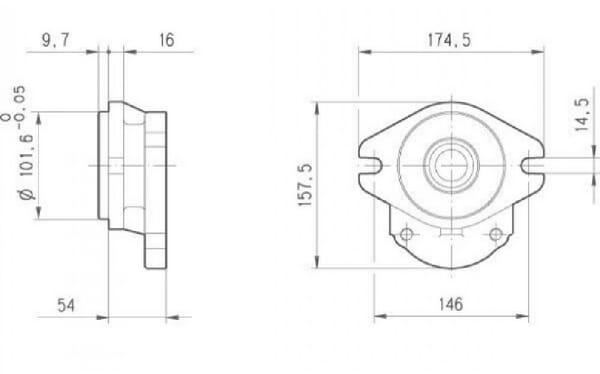

| Connection port to flange distance | 39 mm |
|---|---|
| Displacement | 21.99 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | S5 |
| Flange type norm | SAE-B |
| Housing length | 106 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 270 BAR |
| Max pressure peak | 280 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 350 r/min |
| Mounting diameter | 101.6 mm |
| Mounting holes horizontal distance | 146 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port bolts circle diameter | 40 mm |
| Pump group code | 3 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |

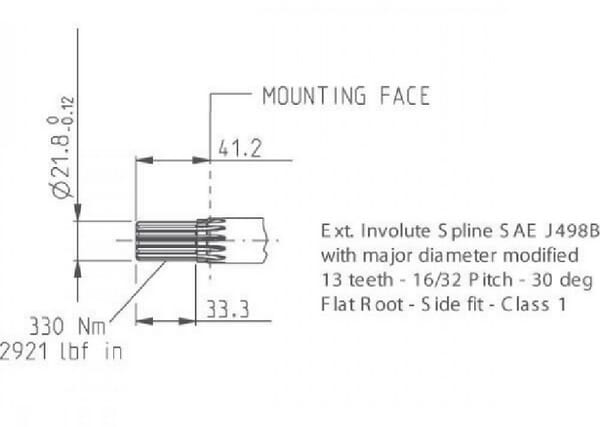

| Shaft diameter | 21.8 mm |
| Shaft number of teeth | 13 |
| Shaft type | Splined 13T |
| Shaft type code | 04 |
| Suction port bolts circle diameter | 51 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 10807 g |
| Dimensions | 204 × 180 × 175 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340202
Casappa Pump PLP10.6,3 D081-E1-LGD/GD-N PLP106D081E1G
£221.39 excl.
£265.67 incl.
In stock
Expected to ship on Monday 21 September
BPA000340665
Casappa Tie bolts polaris 30 M12x260 PLP930M12260
£38.87 excl.
£46.64 incl.
In stock
Expected to ship on Monday 21 September
BPA000286831
Casappa Oil seal 35x50x7 Motor Gr.4 GR4935
£7.73 excl.
£9.28 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000340432
Casappa Pump PLP30.43D0-56B3-LBM/BL-N PLP3043D056B3
£646.59 excl.
£775.91 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340363
Casappa Pump PLP20.6,3D0-12B2-LBE/BC-N-EL FS PLP206D012B2
£324.06 excl.
£388.87 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340306
Casappa Pump PLP20.20S0-12B2-LBE/BC-N-EL FS PLP2020S012B2
£322.30 excl.
£386.76 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000055599

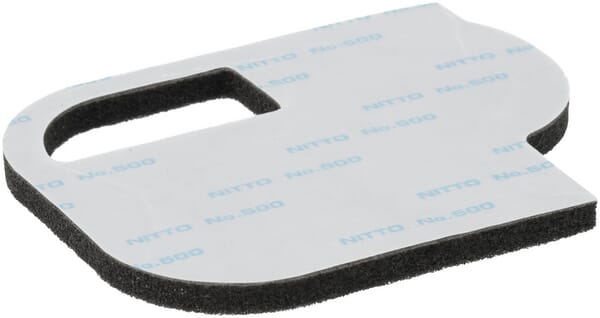

Honda Seal B, Air Cleaner Cover 17234ZT3000
