£322.07
excl. VAT
£386.48 incl. VAT
£386.48
incl. VAT
£322.07 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|

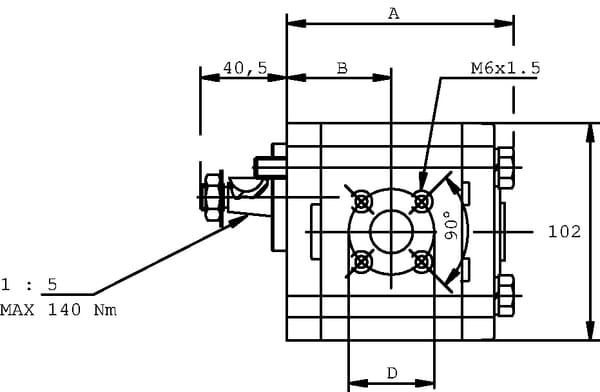

| BConnection port to flange distance | 43 mm |
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 6.61 cm³/rev |
| DSuction port bolts circle diameter | 40 mm |
| Flange and back cover material | Aluminium |
| Flange code | B4 |
| Flange type norm | German |
| Housing length | 93.5 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 4000 r/min |
| Min rotation speed | 600 r/min |

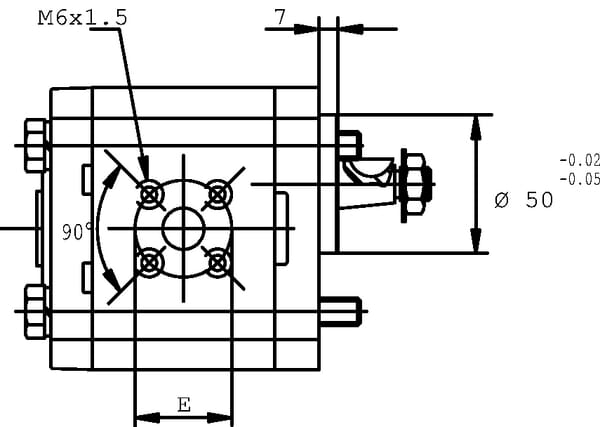

| Mounting diameter | 50 mm |

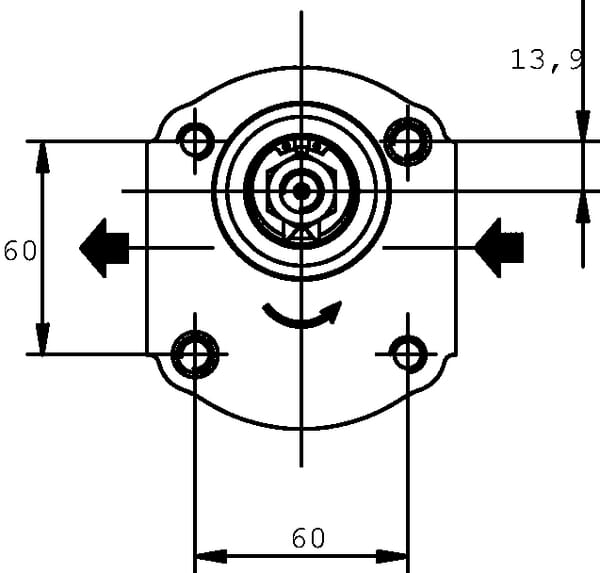

| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Properties | Consists of 3 parts, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | 54 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2232 g |
| Dimensions | 140 × 110 × 90 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340551

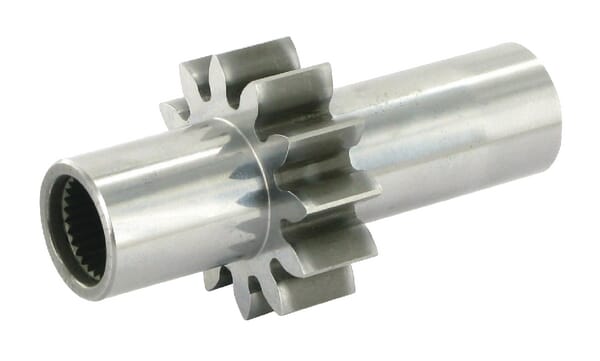

Casappa Drive shaft PLP20.8/III/FS-L separate zuig PLP920AS08
