£355.07
excl. VAT
£426.08 incl. VAT
£426.08
incl. VAT
£355.07 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

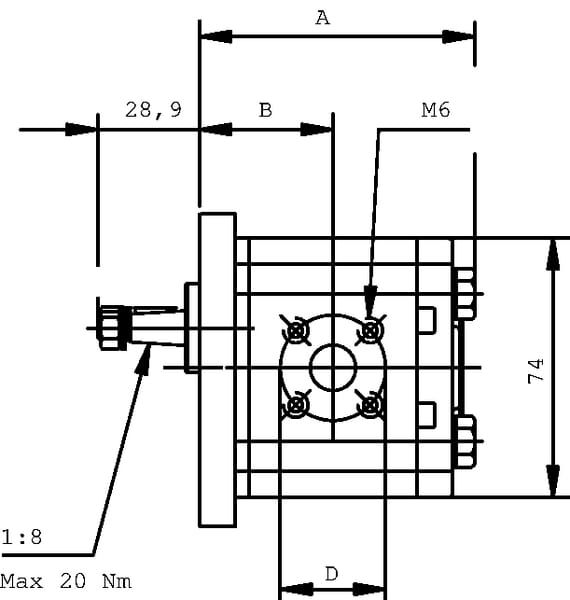

| B | 36.4 mm |
|---|---|
| Connection | 4-hole flange to European standard. leakage oil connection 1/8" BSP |
| D | 30 mm |
| E | 30 mm |
| Length body | 75.8 mm |
| Material | Aluminium |
| Note | Always connect leakage oil line |
| P1 (bar) | 250 BAR |
| Pressure flange | 1 GQ-06 |
| Pressure max. | Max. pressure in the leakage oil line 5 BAR |
| Product details | European flange, Tapered shaft 1:8, European front flange, Spigot 25.4mm, Drain connection 1/8" BSP, connect to free return, max. : 5 bar, Limited axial and radial loads, For chain and belt drives, it is necessary to use a support bearing |
| Pros | Versatile for heavy-duty conditions |
| Rotational speed min. | 650 r/min |
| Rotation max. | 4000 r/min |
| Seal | Order no.: PLM 9-10AFD |
| Shaft type | Conical 1:8 |
| Stroke volume | 4,27 cm³/rev |
| Suction flange | 1 GQ-06 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 990 g |
| Dimensions | 107 × 90 × 80 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000301272
Casappa Hydraulic Pump KP3061D083E3
£570.71 excl.
£684.85 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340234
Casappa Pump PLP20.14/20.11,2 D/FS EL PLP201411D082E2
£591.49 excl.
£709.79 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340529
Casappa Shaft seal BA22,22x32x7 viton PLP92045
£43.08 excl.
£51.70 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340672

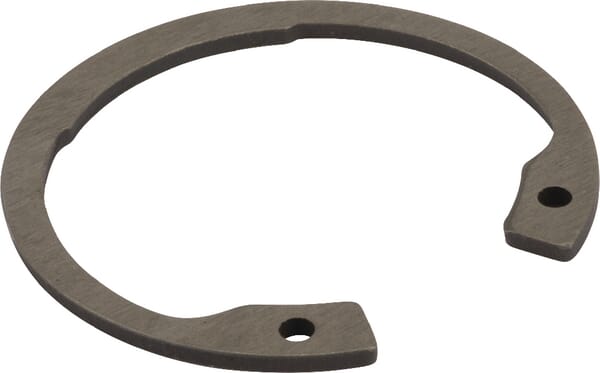

Casappa Lock washer GR.3.5 PLP93520
