£523.63
excl. VAT
£628.36 incl. VAT
£628.36
incl. VAT
£523.63 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details

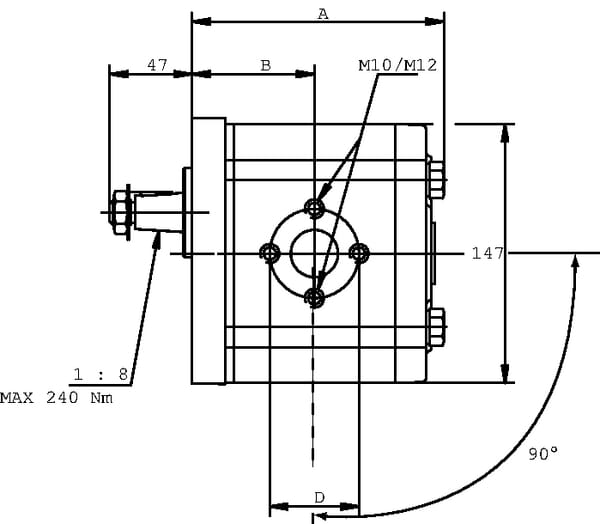

| AHousing length | 149 mm |
|---|---|
| Application range | Mobile applications, Industrial applications |
| BConnection port to flange distance | 72.5 mm |
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |

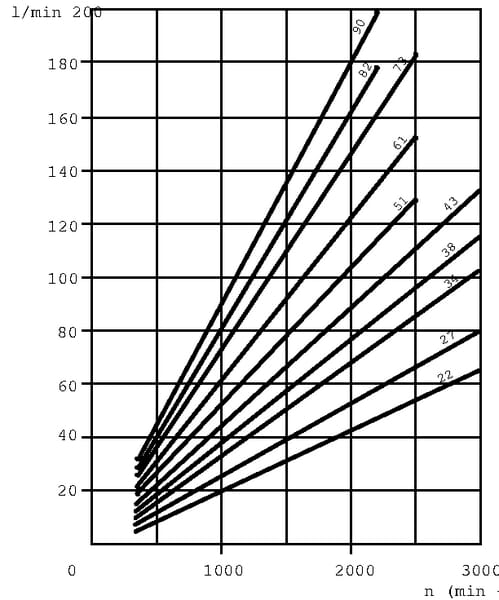

| Displacement | 51.83 cm³/rev |
| DSuction port bolts circle diameter | 51 mm |
| Flange and back cover material | Cast iron |
| Flange code | E3 |
| Flange type norm | European |
| Housing material | Aluminium |
| Max. continous working pressure | 210 BAR |
| Max intermittend working pressure | 230 BAR |
| Max pressure peak | 240 BAR |
| Max rotation speed | 2500 r/min |
| Min rotation speed | 350 r/min |
| Mounting diameter | 50.8 mm |

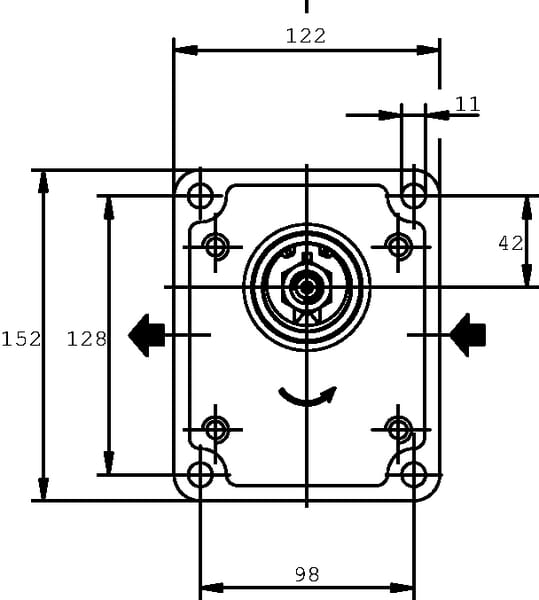

| Mounting holes horizontal distance | 95 mm |
| Mounting holes vertical distance | 128 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port bolts circle diameter | 40 mm |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 3 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:8 |
| Shaft diameter | 21.59 mm |
| Shaft thread diameter | M14 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:8 |
| Shaft type code | 83 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 9572 g |
| Dimensions | 203 × 156 × 127 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340359
Casappa Pump PLP20.4S0-82E2-LEA/EA-N-E PLP204S082E2
£277.73 excl.
£333.28 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340395

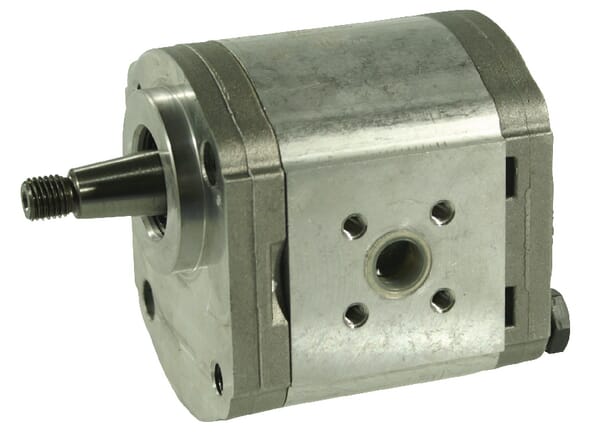

Casappa Pump PLP20.8S0-54B4-LBE/BC-N-EL FS PLP208S054B4
£302.14 excl.
£362.57 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000340610

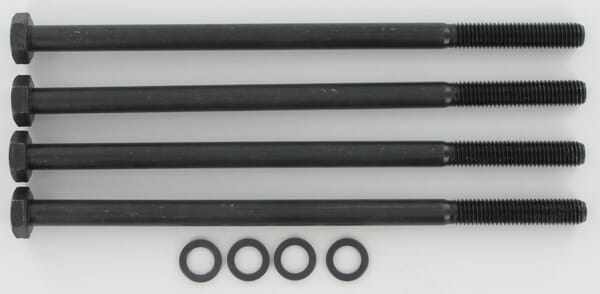

Casappa Tie bolts polaris 20 M10x205 PLP920M10205
£18.38 excl.
£22.06 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000301037

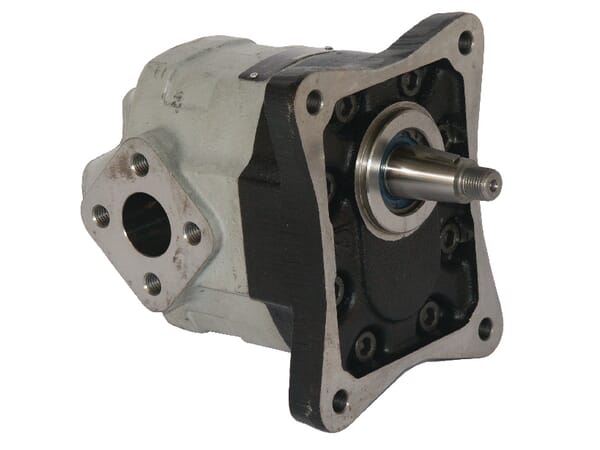

Casappa Motor KM 30.61 RO-84E4-LEF/ED KM3061R84E4
£1,033.02 excl.
£1,239.62 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340654

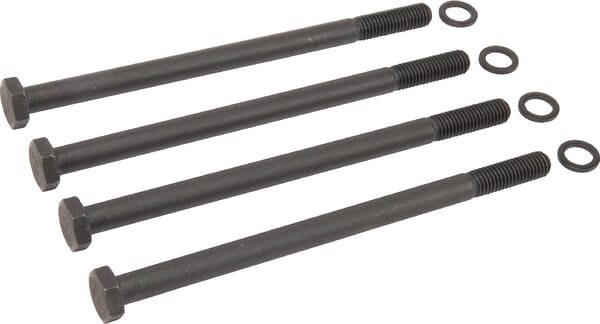

Casappa Bolt set M12X130 PLP930M12130
£13.66 excl.
£16.39 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340561

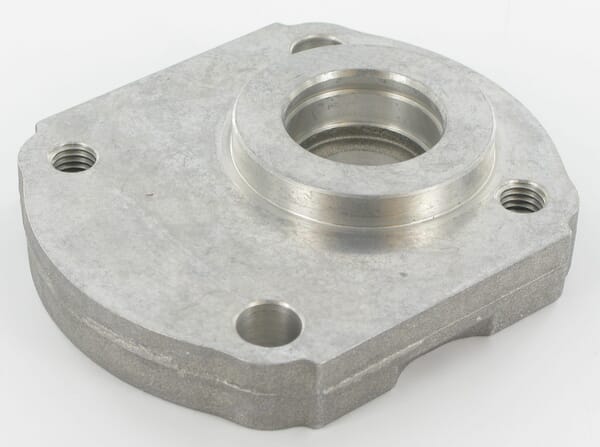

Casappa Front flange PLP20/B5-ALU PLP920B5
