£977.36
excl. VAT
£1,172.83 incl. VAT
£1,172.83
incl. VAT
£977.36 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application | Telescopic |
|---|---|
| Application range | Tipping cylinder for vans, Small to medium-sized trailers |
| Benefits | High efficiency, Save time during assembly, Excellent running properties |
| Cylinder material | Steel MW450U/E470 |
| Details | Light, modern design, Completely assembled unit, Tenifer TF1 coated plungers |
| Long description | Telescopic Cylinder series K " Kompakt" |
| Max. capacity at 180 bar | 14 t |
| Max. working pressure | 200 BAR |
| Max. working temperature | 110 °C |
| Min. length | 450 mm |
| Min. mounting holes distance | 563 mm |
| Min. working temperature | -40 °C |
| Mounting type - cylinder side connection | Bore |
| Mounting type - rod side connection | Bore |
| Number of stages | 4 |
| Oil capacity | 13 l |
| Outside diameter | 150 mm |
| Piston surface roughness range | 0.20-0.20 µm |
| Properties | High durability and long service life |
| Sealing material | Polyurethane |
| Stroke | 1500 mm |
| Unit | Each |
| Weight | 51 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 50500 g |
| Dimensions | 620 × 170 × 170 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000373791

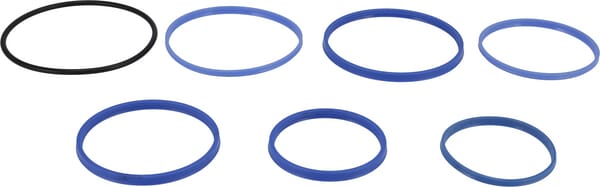

Di Natale-Bertelli Seal kit 4036 EN TC 4038 TC94036
£100.86 excl.
£121.03 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000373690
Di Natale-Bertelli Telescopic cylinder TC 4052 ball head TC4052
£1,831.16 excl.
£2,197.39 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000373659
Di Natale-Bertelli Telescopic cylinder TC 4027 ball head TC4027
£874.85 excl.
£1,049.82 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000373710

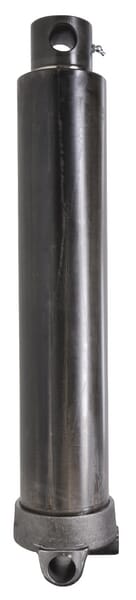

Di Natale-Bertelli Telescopic cylinder, 2-stage, stroke 1095mm TC4627F
£794.38 excl.
£953.26 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000373578

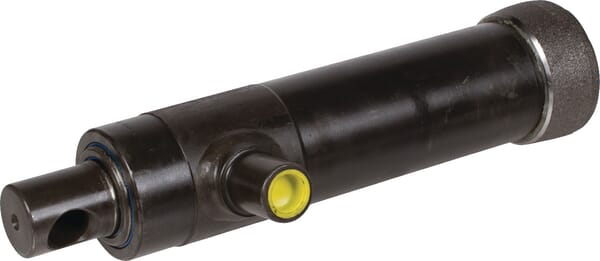

Di Natale-Bertelli Telescopic ram+eye TC2021F
£326.51 excl.
£391.81 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000373786

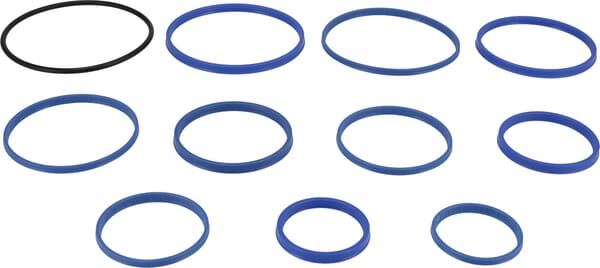

Di Natale-Bertelli Seal kit TC93051
