£346.05
excl. VAT
£415.26 incl. VAT
£415.26
incl. VAT
£346.05 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

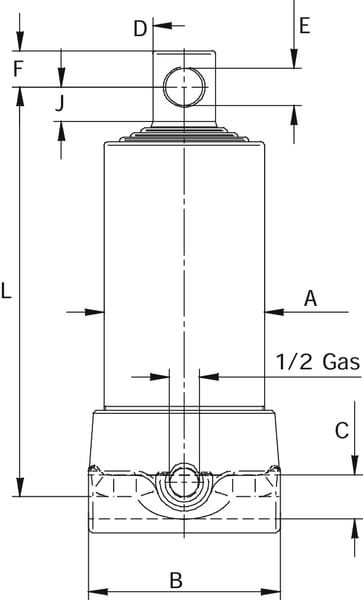

Product details
| Application | Telescopic |
|---|---|
| Application range | Trailer tipping cylinder, Vehicle construction |
| Cylinder material | Steel S355J2+N |
| Details | Tenifer TF1 coating |
| DIN standard | 1629 |
| Max. capacity at 180 bar | 8.1 t |
| Max. capacity - stage 2 | 5.2 t |
| Max. capacity - stage 3 | 8.1 t |
| Max. piston speed | 0.5 m/s |
| Min. length | 337 mm |
| Mounting hole center to cylinder end distance | 25 mm |
| Mounting hole diameter - cylinder connection | 115 mm |
| Mounting type - cylinder side connection | Bore |
| Mounting type - rod side connection | Bore |
| Number of stages | 3 |
| Oil capacity | 2 l |
| Oil connection length | 115 mm |
| Oil connection thread diameter | M26 |
| Outside diameter | 44 mm |
| Piston surface roughness range | 0.05-0.15 µm |
| Properties | Unpainted, Low installation dimensions, Excellent running properties, Long service life |
| Sealing material | Polyurethane |
| Side shaft diameter | 31 mm |
| Stroke | 593 mm |
| Unit | Each |
| Vickers hardness (HV) | HV5/12=500/550 |
| Weight | 14 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 14000 g |
| Dimensions | 375 × 115 × 115 mm |
| Dangerous goods | No |
