£371.16
excl. VAT
£445.39 incl. VAT
£445.39
incl. VAT
£371.16 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

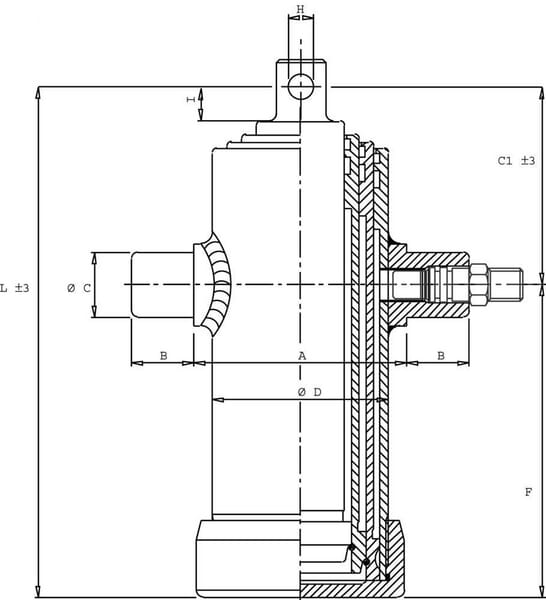

| AMin. mounting holes distance | 134 mm |
|---|---|
| Application | Telescopic |
| BOil connection length | 40 mm |
| C1Oil connection to rod end distance | 102 mm |
| CSide shaft diameter | 35 mm |
| Cylinder material | Steel S355J2+N |
| DIN standard | 1629 |
| DOutside diameter | 112 mm |
| FMounting hole center to cylinder end distance | 190 mm |
| HMounting hole diameter - rod connection | 31 mm |
| IMounting bush outside diameter | 25 mm |
| LMin. length | 292 mm |
| Max. capacity at 180 bar | 11.7 t |
| Max. capacity - stage 2 | 8.1 t |
| Max. capacity - stage 3 | 11.7 t |
| Max. piston speed | 0.5 m/s |
| Max. working pressure | 180 BAR |
| Mounting hole diameter - cylinder connection | 40 mm |
| Mounting type - cylinder side connection | Trunnion |
| Mounting type - rod side connection | Bore |
| Number of stages | 3 |
| Oil capacity | 2.5 l |
| Oil connections thread pitch | 1.50 mm |
| Oil connection thread diameter | M18 |
| Oil connection thread type | Metric |
| Piston surface roughness range | 0.05-0.15 µm |
| Product details | Unpainted, Low installation dimensions, Excellent running properties, Long service life, Tenifer TF1 coating |
| Sealing material | Polyurethane |
| Stage 1 diameter | 61 mm |
| Stage 2 diameter | 76 mm |
| Stage 3 diameter | 91 mm |
| Stroke | 500 mm |
| Unit | Each |
| Vickers hardness (HV) | HV5/12=500/550 |
| Weight | 18.8 kg |
