£2,035.06
excl. VAT
£2,442.07 incl. VAT
£2,442.07
incl. VAT
£2,035.06 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application | Telescopic |
|---|---|
| Application range | Trailer tipping cylinder, Vehicle construction |

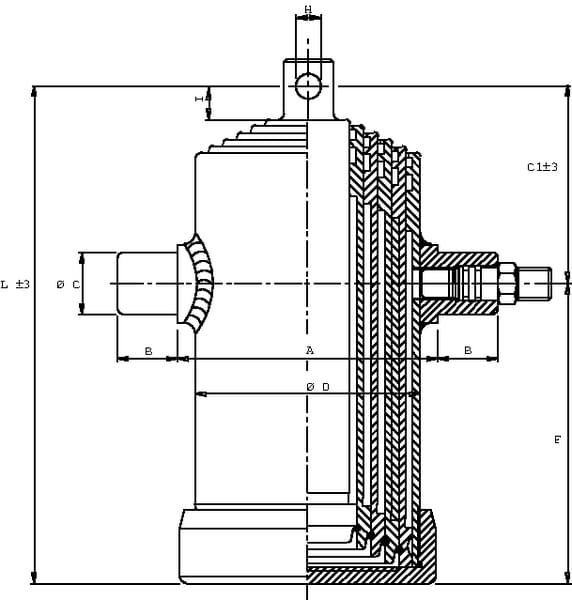

| BOil connection length | 45 mm |
| C1Oil connection to rod end distance | 208 mm |
| CSide shaft diameter | 50 mm |
| Cylinder material | Steel S355J2+N |
| Details | Tenifer TF1 coating |
| DIN standard | 1629 |
| DOutside diameter | 190 mm |
| HMounting hole diameter - rod connection | 36 mm |
| IMounting bush outside diameter | 42 mm |
| LMin. length | 653 mm |
| Long description | Telescopic cylinders 5/6-stage F specials |
| Max. capacity at 180 bar | 38.4 t |
| Max. capacity - stage 2 | 10.9 t |
| Max. capacity - stage 3 | 16.1 t |
| Max. capacity - stage 4 | 22.4 t |
| Max. capacity - stage 5 | 29.7 t |
| Max. capacity - stage 6 | 38.4 t |
| Max. piston speed | 0.5 m/s |
| Mounting hole center to cylinder end distance | 445 mm |
| Mounting hole diameter - cylinder connection | 45 mm |
| Mounting type - cylinder side connection | Trunnion |
| Mounting type - rod side connection | Bore |
| Number of stages | 6 |
| Oil capacity | 34.6 l |
| Oil connections thread pitch | 1.50 mm |
| Oil connection thread diameter | M22 |
| Oil connection thread type | Metric |
| Piston surface roughness range | 0.05-0.15 µm |
| Properties | Unpainted, Low installation dimensions, Excellent running properties, Long service life |
| Sealing material | Polyurethane |
| Stage 1 diameter | 68 mm |
| Stage 2 diameter | 88 mm |
| Stage 3 diameter | 107 mm |
| Stage 4 diameter | 126 mm |
| Stage 5 diameter | 145 mm |
| Stage 6 diameter | 165 mm |
| Stroke | 2910 mm |
| Unit | Each |
| Vickers hardness (HV) | HV5/12=500/550 |
| Weight | 122 kg |
Compatible accessories
Parts and components that work with this product.
TC9050
Di Natale-Bertelli Mounting bracket 50mm TC9050
£33.89 excl.
£40.67 incl.
TC912
Di Natale-Bertelli Screw in adaptor 3/4" TC9-12 TC912
£11.07 excl.
£13.28 incl.
TC96190
Di Natale-Bertelli Trunnion cradle TC D6-190 TC 9 TC96190
£530.97 excl.
£637.16 incl.
TC9875
Di Natale-Bertelli Hose break valve TC75L upto D50 TC9875
£82.42 excl.
£98.90 incl.
TC9M2215L
Di Natale-Bertelli Fitting M22-15L TC9M2215L
£8.78 excl.
£10.54 incl.
TC9M2218L
Di Natale-Bertelli Male stud coupling M22-18L TC9M2218L
£9.12 excl.
£10.94 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 126000 g |
| Dimensions | 690 × 360 × 220 mm |
| Dangerous goods | No |
