£2,546.96
excl. VAT
£3,056.35 incl. VAT
£3,056.35
incl. VAT
£2,546.96 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application | Telescopic |
|---|---|
| Application range | Trailer tipping cylinder, Vehicle construction |

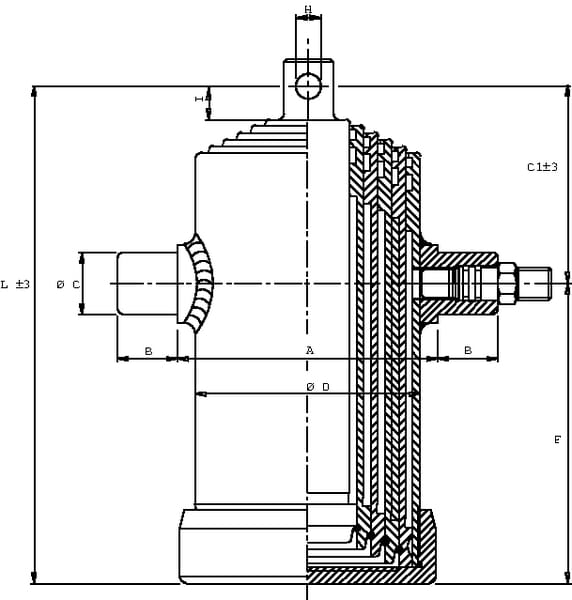

| BOil connection length | 45 mm |
| C1Oil connection to rod end distance | 248 mm |
| CSide shaft diameter | 50 mm |
| Cylinder material | Steel S355J2+N |
| Details | Tenifer TF1 coating |
| DIN standard | 1629 |
| DOutside diameter | 190 mm |
| HMounting hole diameter - rod connection | 36 mm |
| IMounting bush outside diameter | 35 mm |
| LMin. length | 815 mm |
| Long description | Telescopic cylinders 5/6-stage F specials |
| Max. capacity at 180 bar | 38.4 t |
| Max. capacity - stage 2 | 10.9 t |
| Max. capacity - stage 3 | 16.1 t |
| Max. capacity - stage 4 | 22.4 t |
| Max. capacity - stage 5 | 29.7 t |
| Max. capacity - stage 6 | 38.4 t |
| Max. piston speed | 0.5 m/s |
| Mounting hole center to cylinder end distance | 603 mm |
| Mounting hole diameter - cylinder connection | 45 mm |
| Mounting thread diameter - cylinder connection | 3/4 Inch |
| Mounting type - cylinder side connection | Trunnion |
| Mounting type - rod side connection | Bore |
| Number of stages | 6 |
| Oil capacity | 44 l |
| Oil connection thread type | Inch |
| Piston surface roughness range | 0.05-0.15 µm |
| Properties | Unpainted, Low installation dimensions, Excellent running properties, Long service life |
| Sealing material | Polyurethane |
| Stage 1 diameter | 68 mm |
| Stage 2 diameter | 88 mm |
| Stage 3 diameter | 107 mm |
| Stage 4 diameter | 126 mm |
| Stage 5 diameter | 145 mm |
| Stage 6 diameter | 165 mm |
| Stroke | 3765 mm |
| Unit | Each |
| Vickers hardness (HV) | HV5/12=500/550 |
| Weight | 153 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 90000 g |
| Dimensions | 850 × 320 × 210 mm |
| Dangerous goods | No |
