£657.40
excl. VAT
£788.88 incl. VAT
£788.88
incl. VAT
£657.40 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application | Telescopic |
|---|---|
| Application range | Trailer tipping cylinder, Vehicle construction |
| BOil connection length | 40 mm |
| C1Oil connection to rod end distance | 157 mm |
| CSide shaft diameter | 40 mm |
| Cylinder material | Steel S355J2+N |
| Details | Tenifer TF1 coating |
| DIN standard | 1629 |
| DOutside diameter | 124 mm |
| FMounting hole center to cylinder end distance | 340 mm |
| HMounting hole diameter - rod connection | 55 mm |
| IMounting bush outside diameter | 95 mm |
| LMin. length | 497 mm |
| Long description | Telescopic cylinders 4-stage |
| Max. capacity at 180 bar | 16.1 t |
| Max. capacity - stage 2 | 8.1 t |
| Max. capacity - stage 3 | 11.7 t |
| Max. capacity - stage 4 | 16.1 t |
| Max. piston speed | 0.5 m/s |
| Max. working pressure | 180 BAR |
| Mounting hole diameter - cylinder connection | 40 mm |
| Mounting type - cylinder side connection | Trunnion |
| Mounting type - rod side connection | Ball |
| Number of stages | 4 |
| Oil capacity | 7.5 l |
| Oil connections thread pitch | 1.50 mm |
| Oil connection thread diameter | M18 |
| Oil connection thread type | Metric |
| Piston surface roughness range | 0.05-0.15 µm |
| Properties | Unpainted, Low installation dimensions, Excellent running properties, Long service life |
| Sealing material | Polyurethane |
| Stage 1 diameter | 61 mm |
| Stage 2 diameter | 76 mm |
| Stage 3 diameter | 91 mm |
| Stage 4 diameter | 107 mm |
| Stroke | 1290 mm |
| Unit | Each |
| Vickers hardness (HV) | HV5/12=500/550 |
| Weight | 36.5 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 37900 g |
| Dimensions | 510 × 270 × 145 mm |
| Dangerous goods | No |
You might also like
BPA000373761
Di Natale-Bertelli Screw in adaptor 3/4" TC9-12 TC912
£11.07 excl.
£13.28 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000373767

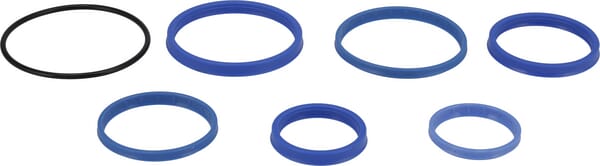

Di Natale-Bertelli Tipping Cylinder Seal kit TC 2031 TM TC 2038 TC92034
£56.69 excl.
£68.03 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000373665
Di Natale-Bertelli Telescopic cylinder TC 4034 ball head TC4034
£618.91 excl.
£742.69 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000373811

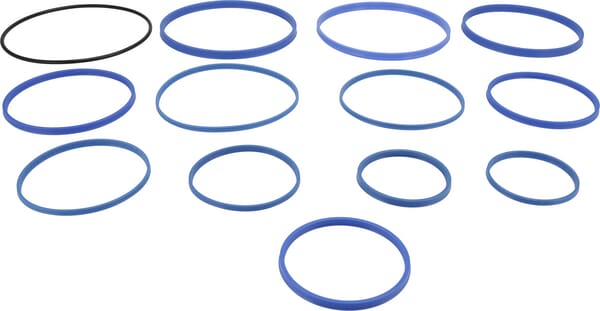

Di Natale-Bertelli Seal kit Z6 diameter 88-diameter 187 TC96050
