£4,260.56
excl. VAT
£5,112.67 incl. VAT
£5,112.67
incl. VAT
£4,260.56 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application | Telescopic |
|---|---|
| Application range | Trailer tipping cylinder, Vehicle construction |

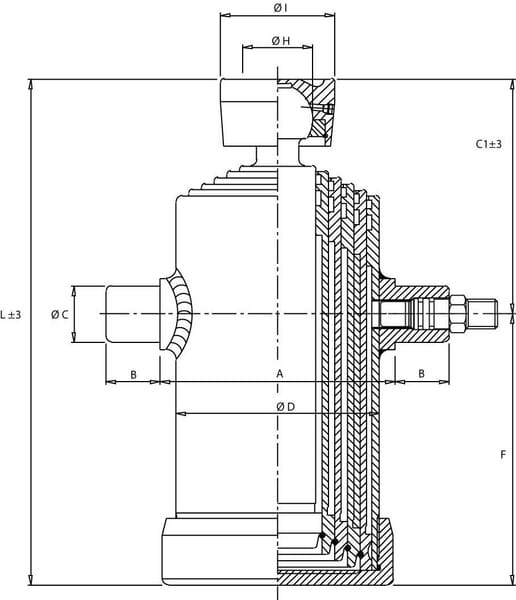

| BOil connection length | 55 mm |
| C1Oil connection to rod end distance | 260 mm |
| CSide shaft diameter | 70 mm |
| Cylinder material | Steel S355J2+N |
| Details | Tenifer TF1 coating |
| DIN standard | 1629 |
| DOutside diameter | 300 mm |
| FMounting hole center to cylinder end distance | 312 mm |
| HMounting hole diameter - rod connection | 69 mm |
| IMounting bush outside diameter | 150 mm |
| LMin. length | 572 mm |
| Long description | Telescopic cylinders 10-stage |
| Max. capacity at 180 bar | 99.2 t |
| Max. piston speed | 0.5 m/s |
| Max. working pressure | 180 BAR |
| Mounting hole diameter - cylinder connection | 55 mm |
| Mounting thread diameter - cylinder connection | 1 Inch |
| Mounting type - cylinder side connection | Trunnion |
| Mounting type - rod side connection | Ball |
| Number of stages | 10 |
| Oil capacity | 69 l |
| Oil connection thread type | BSP |
| Piston surface roughness range | 0.05-0.15 µm |
| Properties | Unpainted, Low installation dimensions, Excellent running properties, Long service life |
| Sealing material | Polyurethane |
| Stage 1 diameter | 68 mm |
| Stage 2 diameter | 88 mm |
| Stage 3 diameter | 107 mm |
| Stage 4 diameter | 126 mm |
| Stage 5 diameter | 145 mm |
| Stage 6 diameter | 165 mm |
| Stroke | 3140 mm |
| Unit | Each |
| Vickers hardness (HV) | HV5/12=500/550 |
| Weight | 248 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 241 g |
| Dimensions | 580 × 320 × 320 mm |
| Dangerous goods | No |
