£1,868.17
excl. VAT
£2,241.80 incl. VAT
£2,241.80
incl. VAT
£1,868.17 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application | Telescopic |
|---|---|
| BOil connection length | 45 mm |
| C1Oil connection to rod end distance | 240 mm |
| CSide shaft diameter | 50 mm |
| Cylinder material | Steel |
| DIN standard | 1629 |
| DOutside diameter | 170 mm |
| FMounting hole center to cylinder end distance | 440 mm |
| HMounting hole diameter - rod connection | 55 mm |
| IMounting bush outside diameter | 95 mm |
| LMin. length | 680 mm |
| Max. capacity at 180 bar | 29.7 t |
| Max. working pressure | 180 BAR |
| Mounting hole diameter - cylinder connection | 45 mm |
| Mounting type - cylinder side connection | Trunnion |
| Mounting type - rod side connection | Ball |
| Number of stages | 6 |
| Oil capacity | 26 l |
| Oil connections thread pitch | 1.50 mm |
| Oil connection thread diameter | M22 |
| Oil connection thread type | Metric |
| Piston surface roughness range | 0.05-0.15 µm |
| Sealing material | Polyurethane |
| Stage 1 diameter | 61 mm |
| Stage 2 diameter | 76 mm |
| Stage 3 diameter | 91 mm |
| Stage 4 diameter | 107 mm |
| Stage 5 diameter | 126 mm |
| Stage 6 diameter | 145 mm |
| Stroke | 2955 mm |
| Unit | Each |
| Vickers hardness (HV) | HV5/12=500/550 |
| Weight | 93 kg |
Compatible accessories
Parts and components that work with this product.
TC9050
Di Natale-Bertelli Mounting bracket 50mm TC9050
£33.89 excl.
£40.67 incl.
TC912
Di Natale-Bertelli Screw in adaptor 3/4" TC9-12 TC912
£11.07 excl.
£13.28 incl.
TC95170
Di Natale-Bertelli Trunnion cradle TC 9-5170 TC95170
£460.73 excl.
£552.88 incl.

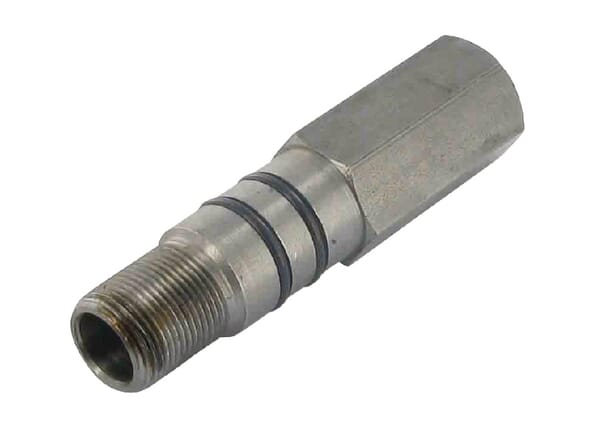

TC9875
Di Natale-Bertelli Hose break valve TC75L upto D50 TC9875
£82.42 excl.
£98.90 incl.
TC9M2215L
Di Natale-Bertelli Fitting M22-15L TC9M2215L
£8.78 excl.
£10.54 incl.

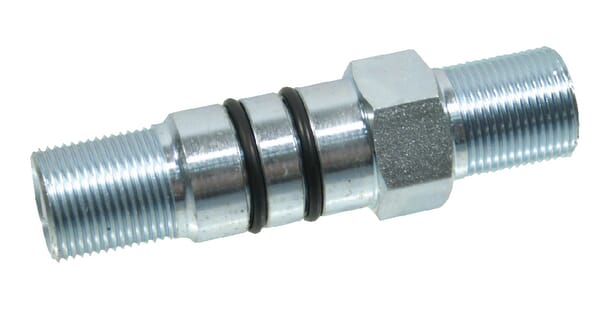

TC9M2218L
Di Natale-Bertelli Male stud coupling M22-18L TC9M2218L
£9.12 excl.
£10.94 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 85000 g |
| Dimensions | 720 × 350 × 230 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000373604
Di Natale-Bertelli Telescopic cylinder 3024 hole in rod TC3024F
£394.74 excl.
£473.69 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000373584
Di Natale-Bertelli Telescopic cylinder TC 2034 ball head TC2034
£427.70 excl.
£513.24 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000373617
Di Natale-Bertelli Telescopic cylinder TC 3042 ball head TC3042
£506.93 excl.
£608.32 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000373579
Di Natale-Bertelli Telescopic cylinder TC 2031 ball head TC2031
£364.68 excl.
£437.62 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000373686

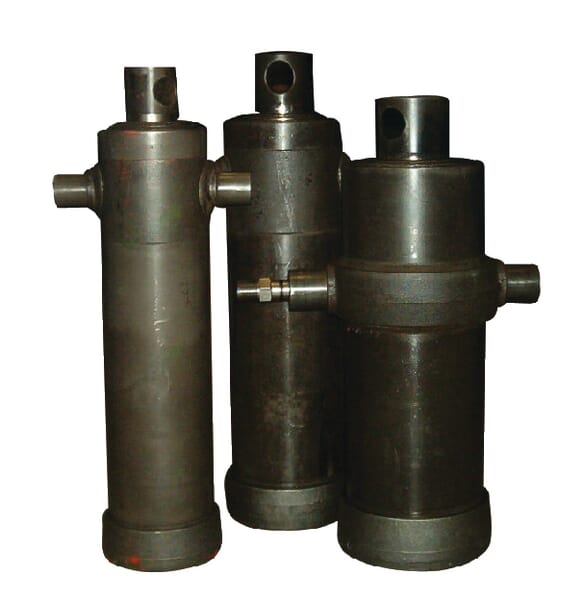

Di Natale-Bertelli Telescopic cylinder TC 4048 eye TC4048F
