£517.27
excl. VAT
£620.72 incl. VAT
£620.72
incl. VAT
£517.27 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details

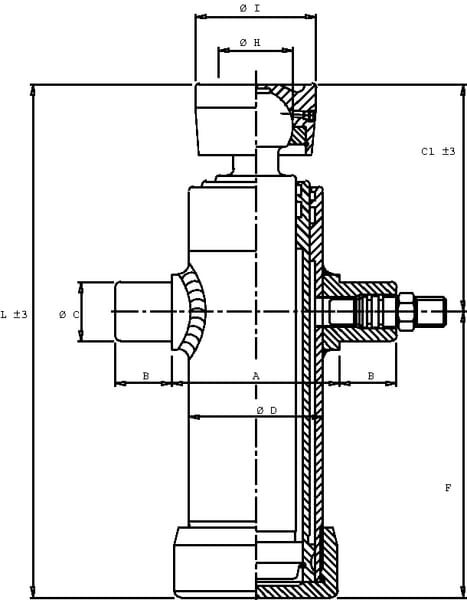

| AMin. mounting holes distance | 115 mm |
|---|---|
| Application | Telescopic |
| Application range | Trailer tipping cylinder, Vehicle construction |
| BOil connection length | 40 mm |
| C1Oil connection to rod end distance | 150 mm |
| CSide shaft diameter | 35 mm |
| Cylinder material | Steel S355J2+N |
| Details | Tenifer TF1 coating |
| DIN standard | 1629 |
| DOutside diameter | 95 mm |
| FMounting hole center to cylinder end distance | 515 mm |
| HMounting hole diameter - rod connection | 55 mm |
| IMounting bush outside diameter | 95 mm |
| LMin. length | 665 mm |
| Long description | Telescopic cylinders 2-stage |
| Max. capacity | 5.5 t |
| Max. capacity at 180 bar | 8.1 t |
| Max. capacity - stage 2 | 8.1 t |
| Max. piston speed | 0.5 m/s |
| Max. working pressure | 180 BAR |
| Mounting hole diameter - cylinder connection | 40 mm |
| Mounting type - cylinder side connection | Trunnion |
| Mounting type - rod side connection | Ball |
| Number of stages | 2 |
| Oil capacity | 3.8 l |
| Oil connections thread pitch | 1.50 mm |
| Oil connection thread diameter | M18 |
| Oil connection thread type | Metric |
| Piston surface roughness range | 0.05-0.15 µm |
| Properties | Unpainted, Low installation dimensions, Excellent running properties, Long service life |
| Sealing material | Polyurethane |
| Stage 1 diameter | 61 mm |
| Stage 2 diameter | 76 mm |
| Stroke | 995 mm |
| Unit | Each |
| Vickers hardness (HV) | HV5/12=500/550 |
| Weight | 30 kg |
Compatible accessories
Parts and components that work with this product.
TC9035
Di Natale-Bertelli Mounting bracket 35mm TC9035
£26.22 excl.
£31.46 incl.

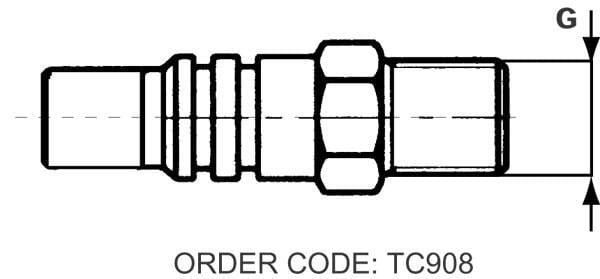

TC908
Di Natale-Bertelli Screw in adaptor 1/2" TC9-08 TC908
£7.98 excl.
£9.58 incl.
TC9195
Di Natale-Bertelli Trunnion cradle TC 9-195 TC9195
£122.20 excl.
£146.64 incl.
TC9865
Di Natale-Bertelli Hose break valve TC65 L upto D50 TC9865
£75.94 excl.
£91.13 incl.
TC9M1812L
Di Natale-Bertelli Fitting M18-12L TC9M1812L
£7.12 excl.
£8.54 incl.
TC9M1815L
Di Natale-Bertelli Fitting M18-15L TC9M1815L
£6.70 excl.
£8.04 incl.
TC9M1818L
Di Natale-Bertelli Male stud coupling M18-18L TC9M1818L
£6.77 excl.
£8.12 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 31000 g |
| Dimensions | 665 × 200 × 110 mm |
| Dangerous goods | No |
