£56.27
excl. VAT
£67.52 incl. VAT
£67.52
incl. VAT
£56.27 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M30 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | M45 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| D1Connection no 1 diameter | 22 mm |
| D2Connection 2, diameter | 35 mm |
| DIN standard | 2401 |
| Includes | Body, Swivel nuts, Sealing cone with O-ring |
| LTotal length | 52 mm |
| Max working pressure | 160 BAR |
| Product details | Pre-assembled with O-ring - Internal L, External L - Hydraulic hose, Hydraulic pipes - Viton seal available on request, CR6-free zinc plated |
| Pros | Reduced risk of leakage |
| Series connection 1 | 22L |
| Series connection 2 | 35L |
| Shape | Straight |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 367 g |
| Dimensions | 53 × 53 × 53 mm |
| Dangerous goods | No |
You might also like

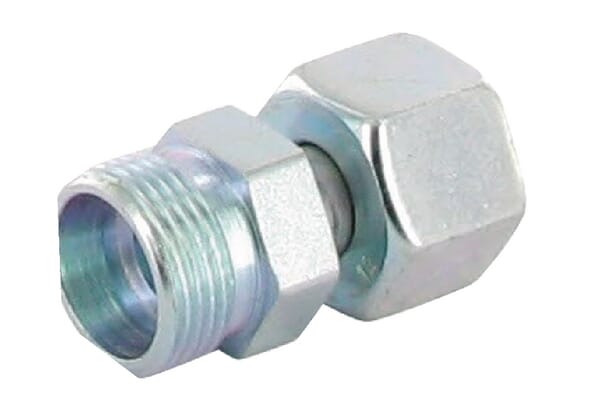

BPA000301201
Dietzel Coupling 20S 22L KOVO20S22L
£18.28 excl.
£21.94 incl.
In stock
Expected to ship on Thursday 24 September
BPA000301232
Dietzel Coupling 6L 6L KOVO6L6L
£9.20 excl.
£11.04 incl.
In stock
Expected to ship on Wednesday 23 September

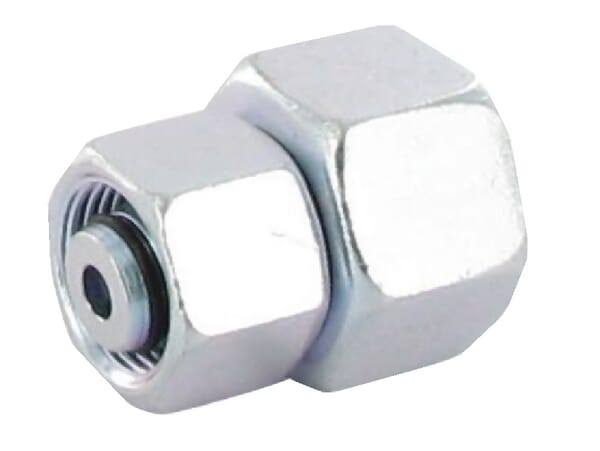

BPA000287556
Dietzel Coupling 12S 14S GVO12S14S
£18.00 excl.
£21.60 incl.
In stock
Expected to ship on Thursday 24 September

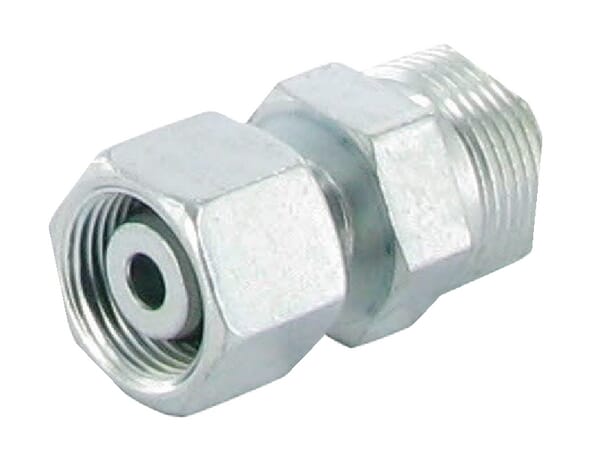

BPA000301172
Dietzel Coupling 12S 14S KOVO12S14S
£14.14 excl.
£16.97 incl.
In stock
Expected to ship on Thursday 24 September

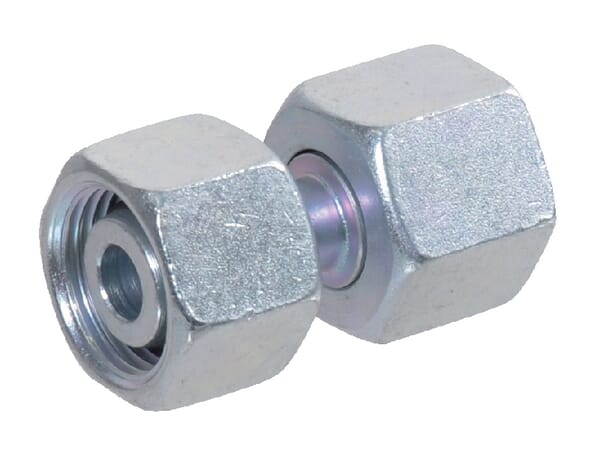

BPA000287600
Dietzel Coupling 22L 35L GVO22L35L
£63.85 excl.
£76.62 incl.
In stock
Expected to ship on Thursday 24 September

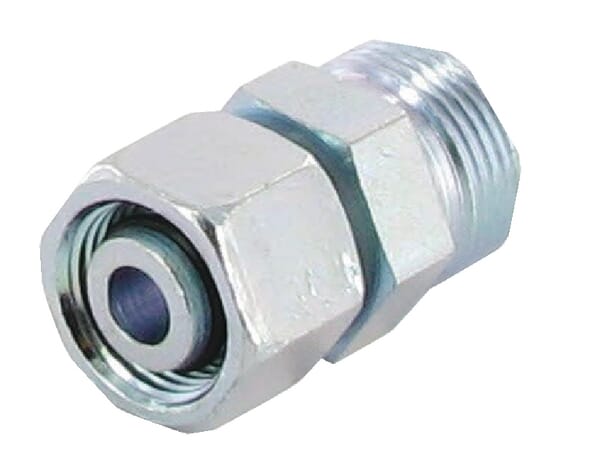

BPA000301215
