Product details

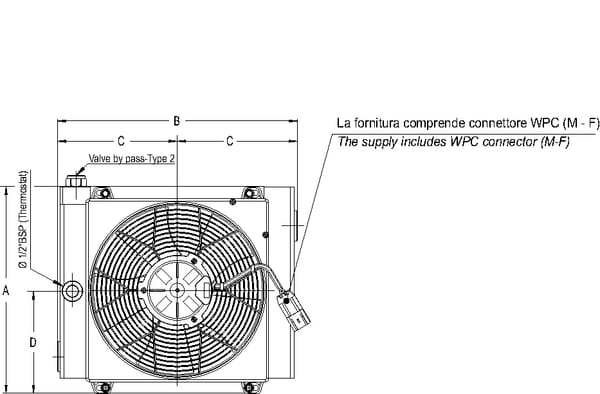

| AHeight | 252 mm |
|---|---|
| Amperage | 8.3 A |
| BWidth | 325 mm |
| Bypass | Yes |
| Connection thread diameter | 1 Inch |
| Cooling medium flow type | Suction |
| Drive motor power | 100 W |

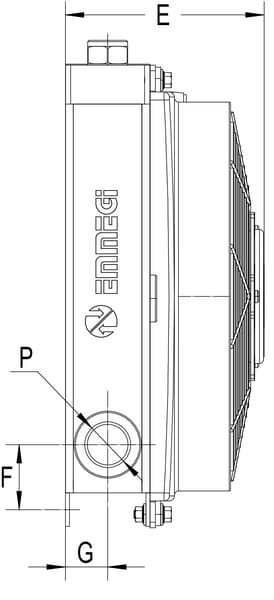

| EDepth | 146 mm |
| Fan outside diameter | 190 mm |
| Includes | Aluminium radiator, Electric motor with impeller, Temperature switch 48-60ºC, Bypass, Plug connection, Without mounting base |
| Insulation class | 68 |

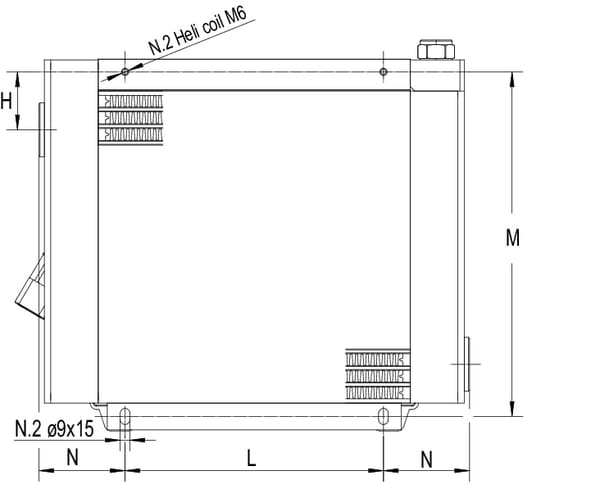

| LMounting holes distance | 150 mm |
| Long description | Oil coolers are used to improve heat exchange between oil and environment. The 2MV coolers are fitted with a thermostat as well as a bypass as standard. |
| Material | Plastic, Aluminium |
| Max. working flow | 95 l/min |
| Max. working pressure | 20 BAR |
| Noise level | 74 dB(A) |
| Nominal voltage | 12 V |
| Product details | Outstanding value for money, With thermostat and bypass, Highly suitable for mobile applications. |
| Technical info | Air oil-coolers are applied to improve heat exchange between oil and the environment. The coolers are supplied standard with a 48 - 60 °C thermostat. |
| Thermostat working temperature | 48-60 |
| Unit | Each |
| Weight | 5.3 kg |
Compatible accessories
Parts and components that work with this product.
4RA965400071
Hella Relay 4RA965400071
£11.71 excl.
£14.05 incl.
OK90519610
Emmegi Assembly foot MV1 OK90519610
£52.69 excl.
£63.23 incl.
OK9NTCTEMPS
Emmegi NTC temperature sensor 1/2" BSP OK9NTCTEMPS
£43.68 excl.
£52.42 incl.
OK9SSSCRF
Emmegi Soft start en speed control with reverse (max 25A) OK9SSSCRF
£300.84 excl.
£361.01 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 6951 g |
| Dimensions | 364 × 342 × 198 mm |
| Dangerous goods | No |
