£602.15
excl. VAT
£722.58 incl. VAT
£722.58
incl. VAT
£602.15 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Connection thread diameter | 1 Inch |
|---|---|
| Cooling medium flow type | Suction |
| Depth | 168 mm |
| Fan outside diameter | 250 mm |
| Includes | Aluminium radiator, Support, Impeller/electric motor, voltage according to version, Temperature switch, Connector for connecting temperature switch/DC motor |
| Insulation class | 44 |
| Long description | Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers come as standard with a 38-50°C thermostat. A controlled oil temperature increases the efficiency and lifetime of the components in the system. |
| Max. working flow | 110 l/min |
| Max. working pressure | 20 BAR |
| Noise level | 72 dB(A) |
| Nominal voltage | 230 V |
| Product details | Temperature switch 38-50°C, Maximum temperature 120°C, The motor must be switched via a relay |
| Pros | Compact flush mounting, Complete unit, Increased efficiency, Long component service life |
| Technical info | Air oil-coolers are applied to improve heat exchange between oil and the environment. The coolers are supplied standard with a 40 - 48 °C thermostat. |
| Thermostat working temperature | 38 - 50 |
| Unit | Each |
| Weight | 11 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 10980 g |
| Dimensions | 400 × 370 × 195 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000327377
Emmegi Oil-cooler by-pass 12V 48-60˚C OK2050KBV12301
£1,416.45 excl.
£1,699.74 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000327385
Emmegi Oil-cooler (24V) 48–60°C MV-3 OK2MV324301
£977.35 excl.
£1,172.82 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000327393

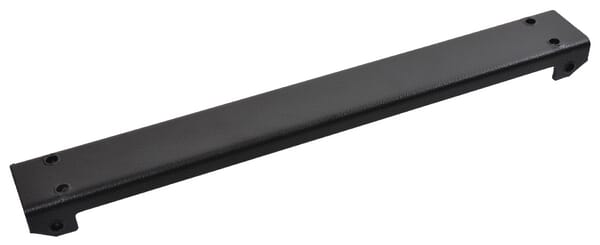

Emmegi Assembly foot MV4 OK90519640
£46.23 excl.
£55.48 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000327414
Emmegi Electric fan with motor 220V 250mm OK9202440
£271.93 excl.
£326.32 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000233285

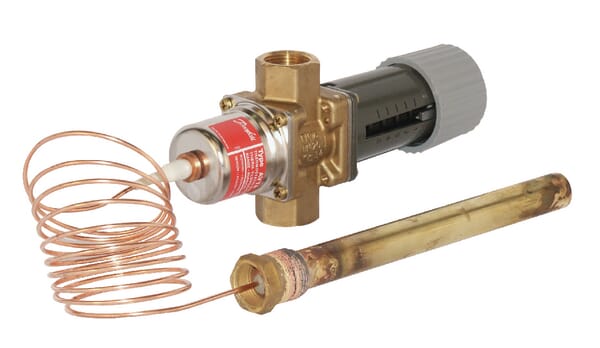

Emmegi Thermostat Valve AVTA 15 1/ AVTA15
