£721.11
excl. VAT
£865.33 incl. VAT
£865.33
incl. VAT
£721.11 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Connection thread diameter | 1 Inch |
|---|---|
| Cooling medium flow type | Suction |
| Depth | 170 mm |
| Fan outside diameter | 300 mm |
| Includes | Aluminium radiator, Support, Impeller/electric motor, voltage according to version, Temperature switch, Connector for connecting temperature switch/DC motor |
| Insulation class | 54 |
| Long description | Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers come as standard with a 38-50°C thermostat. A controlled oil temperature increases the efficiency and lifetime of the components in the system. |
| Max. working flow | 130 l/min |
| Max. working pressure | 20 BAR |
| Noise level | 70 dB(A) |
| Nominal voltage | 230 V |
| Product details | Temperature switch 38-50°C, Maximum temperature 120°C, The motor must be switched via a relay |
| Pros | Compact flush mounting, Complete unit, Increased efficiency, Long component service life |
| Technical info | Air oil-coolers are applied to improve heat exchange between oil and the environment. The coolers are supplied standard with a 40 - 48 °C thermostat. |
| Thermostat working temperature | 38 - 50 |
| Unit | Each |
| Weight | 15 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 15200 g |
| Dimensions | 500 × 500 × 240 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000327466
Emmegi Oil-cooler 400V HPA 12 40-28° OKHPA1203201K
£1,481.32 excl.
£1,777.58 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327401
Emmegi Electric fan 12VDC 225mm OK9201535N
£176.41 excl.
£211.69 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000327463
Emmegi Connector F IP67 OK9WPCF
£14.30 excl.
£17.16 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000327433
Emmegi Fan, with suction 12-V 2MV-2 OK92MV212S
£154.61 excl.
£185.53 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000327350
Emmegi Oil-cooler by-pass 24V 48-60˚C OK2015KBV24301
£665.54 excl.
£798.65 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000233286

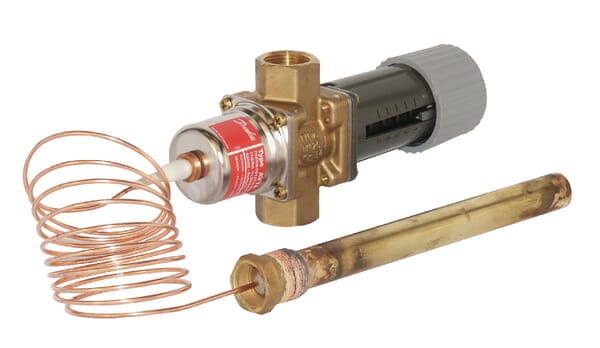

Emmegi Thermostat Valve AVTA 20 3/4 AVTA20
