£1,481.32
excl. VAT
£1,777.58 incl. VAT
£1,777.58
incl. VAT
£1,481.32 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

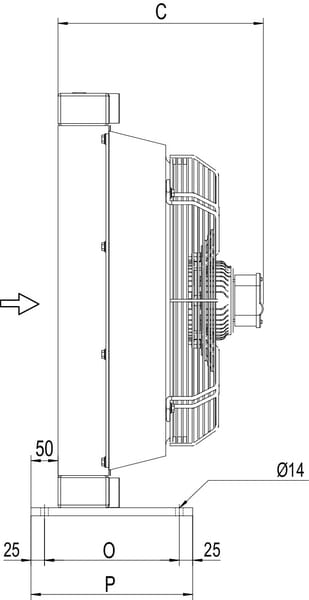

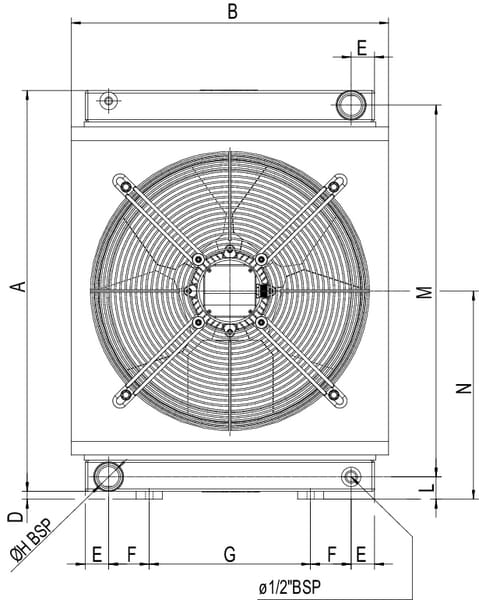

| AHeight | 390 mm |
|---|---|
| Amperage | 33 A |
| BWidth | 357 mm |
| Connection thread diameter | 1 Inch |
| Cooling medium flow type | Suction |
| Drive motor power | 170 W |
| EDepth | 278 mm |
| Fan outside diameter | 250 mm |
| Insulation class | 55 |
| LMounting holes distance | 35 mm |
| Max. ambient temperature | 120 °C |
| Max. motor/engine speed | 2240 r/min |
| Max. working pressure | 20 BAR |
| Noise level | 69 dB(A) |
| Nominal voltage | 220 V, 380 V |

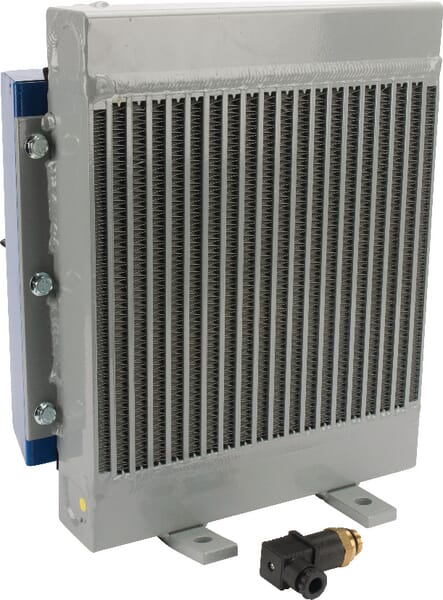

| Technical info | Air oil-coolers are applied to improve heat exchange between oil and the environment. The coolers are supplied standard with a 40 - 28 °C thermostat. |
| Thermostat working temperature | 40-48 |
| Unit | Each |
| Weight | 12 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 12744 g |
| Dimensions | 350 × 390 × 210 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000327403
Emmegi Electric fan with motor 220V 200mm OK9201540
£278.54 excl.
£334.25 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327386
Emmegi Oil-cooler (12V) 48–60°C MV-4 OK2MV412301
£992.94 excl.
£1,191.53 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327370
Emmegi Oil-cooler (24V) 38-50'C 2040K-24-2-01 OK2040K24201
£850.01 excl.
£1,020.01 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327456

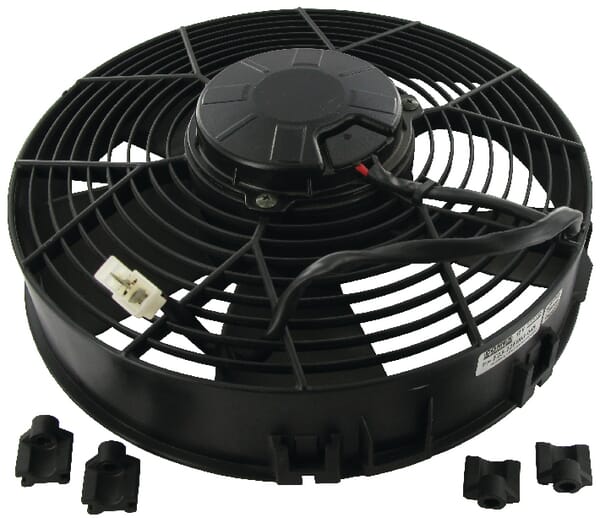

Emmegi MOTOR/WAAI/ROOST HP18/24 12VDC OK9HPA182430
