£818.94
excl. VAT
£982.73 incl. VAT
£982.73
incl. VAT
£818.94 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Connection thread diameter | 1 Inch |
|---|---|
| Cooling medium flow type | Suction |
| Depth | 211 mm |
| Fan outside diameter | 305 mm |

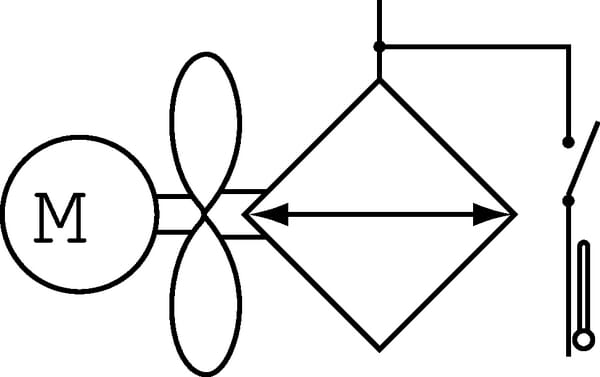

| Includes | Aluminium radiator, Support, Impeller/electric motor, voltage according to version, Temperature switch, Connector for connecting temperature switch/DC motor |
| Insulation class | 65 |
| Long description | Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers come as standard with a 38-50°C thermostat. A controlled oil temperature increases the efficiency and lifetime of the components in the system. |
| Max. working flow | 130 l/min |
| Max. working pressure | 20 BAR |
| Noise level | 68 dB(A) |
| Nominal voltage | 24 V |
| Product details | Temperature switch 38-50°C, Maximum temperature 120°C, The motor must be switched via a relay |
| Pros | Compact flush mounting, Complete unit, Increased efficiency, Long component service life |
| Technical info | Air oil-coolers are applied to improve heat exchange between oil and the environment. The coolers are supplied standard with a 40 - 48 °C thermostat. |
| Thermostat working temperature | 38 - 50 |
| Unit | Each |
| Weight | 14 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 13500 g |
| Dimensions | 515 × 480 × 265 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000327360
Emmegi Oil-Cooler 2024K Gr.2 OK2024K56201
£775.66 excl.
£930.79 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327381
Emmegi Oil-cooler (24V) 48–60°C MV-1 OK2MV124301
£620.76 excl.
£744.91 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000327438
Emmegi Radiator 2MV-4 bypass OK92MV4
£1,159.14 excl.
£1,390.97 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

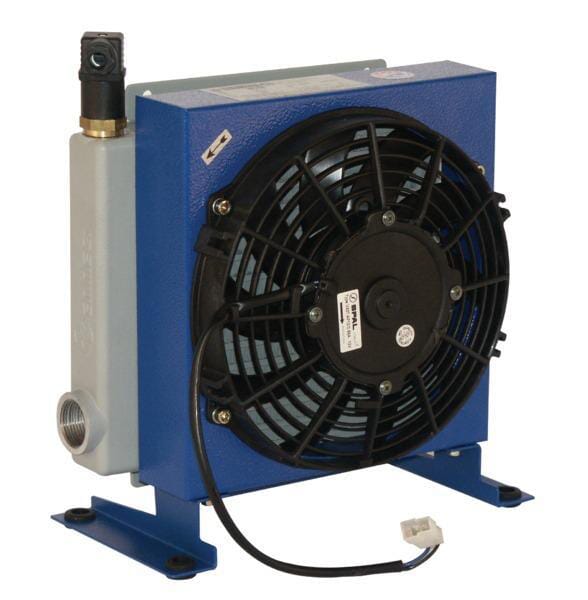

BPA000327362
Emmegi Oil-cooler (230V) 38-50'C 2030K-01-2-01 OK2030K01201
£721.11 excl.
£865.33 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327442
Emmegi Fan, with suction 12-V 2MV-5 OK92MV512S
£457.18 excl.
£548.62 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327379
Emmegi Oil-cooler OK2MS212301
£586.48 excl.
£703.78 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000189966
Kramp Slotted cheese head screw DIN84 M4x60 stainless steel A2 84460RVSP025
£0.18 excl.
£0.22 incl.
In stock
Expected to ship on Friday 18 September
BPA000346396
Non Original Rotovator blade LH 195x59x30mm 6mm thick suitable for Carraro Antonio RB12012
£3.77 excl.
£4.52 incl.
In stock
Expected to ship on Friday 18 September
Free shipping

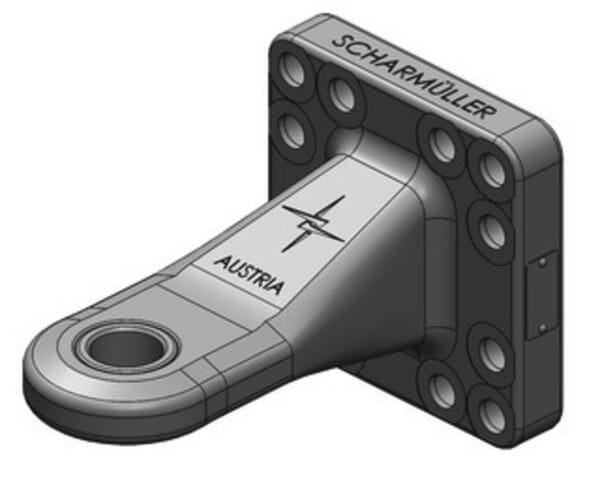

BPA000011527
Scharmüller Towing Eye Cat. 3 diameter 42mm 160x160 ISO 21244 00665160A02
£850.07 excl.
£1,020.08 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000294375
Kramp Mower blade LH 105x47x4mm bore diameter 20.50mm Suitable for Kuhn K6802970KR
£1.50 excl.
£1.80 incl.
In stock
Expected to ship on Friday 18 September
BPA000367201
TESA Tape, cloth, standard PE coated, grey, 50m x 50mm, TesaBAND® T046880003100
£29.88 excl.
£35.86 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000100673
Kramp Saw chain 3/8" 1.3mm 1632 DL 100ft semi chisel gopart 38LP13S100RKR
£218.54 excl.
£262.25 incl.
In stock
Expected to ship on Friday 18 September
BPA000297933

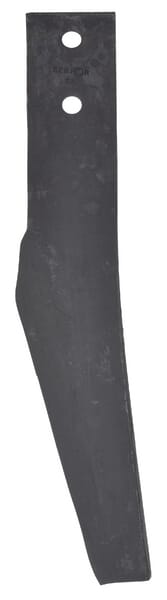

Non Original Power harrow tine LH, length 375mm, suitable for Maschio KE0911
£16.69 excl.
£20.03 incl.
In stock
Expected to ship on Monday 21 September
BPA000069760
Kramp Oil seal 24x42x10mm type:CB DIN 3760 1x 244210CBP001
£1.69 excl.
£2.03 incl.
In stock
Expected to ship on Friday 18 September

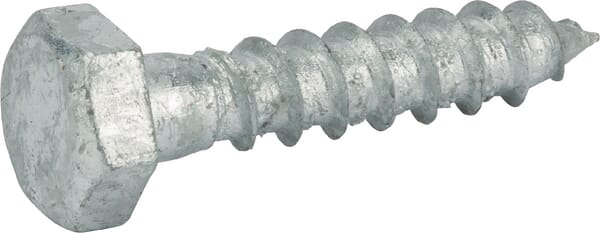

BPA000144634
Kramp Wood screw 6x70mm, 10mm hex head, DIN 571 571670TV
£0.15 excl.
£0.18 incl.
In stock
Expected to ship on Friday 18 September
BPA000085199
FAG Tapered roller bearing 30x72x20.75mm INA/FAG 31306A
£40.98 excl.
£49.18 incl.
In stock
Expected to ship on Friday 18 September

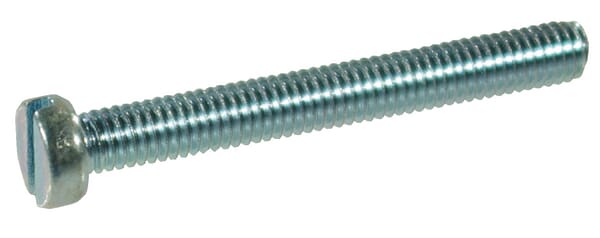

BPA000190477
