£465.24
excl. VAT
£558.29 incl. VAT
£558.29
incl. VAT
£465.24 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | For heat exchange between oil and cooling air in hydraulic systems, Improves heat exchange between oil and environment |
|---|---|

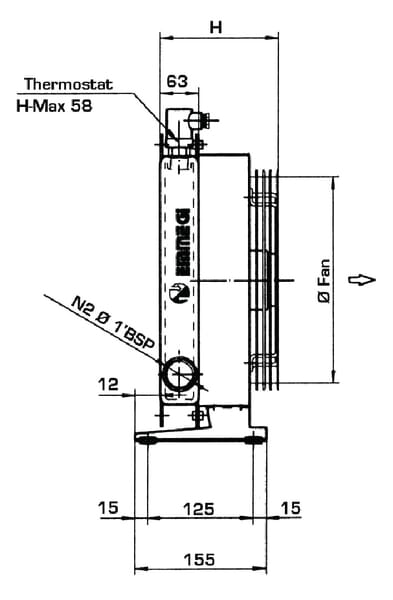

| Connection thread diameter | 1 Inch |

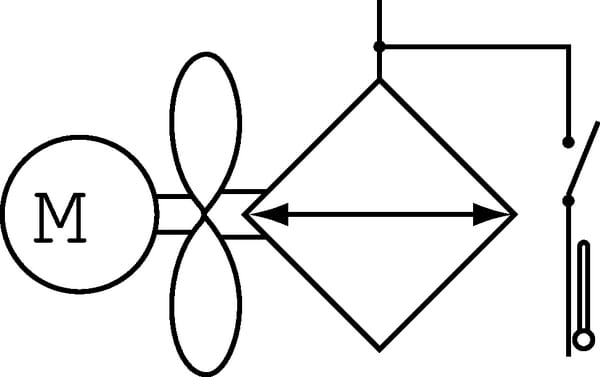

| Consists of | Aluminium cooler, Support, Fan/electric motor, voltage depends on version, 40-48ºC temperature switch, Plug for connecting temperature switch/DC motor |
| Cooling medium flow type | Suction |
| Depth | 157 mm |
| Fan outside diameter | 200 mm |
| Includes | Aluminium radiator, Support, Impeller / electric motor, voltage depends on version, Temperature switch, Connector for connecting temperature switch/DC motor |
| Insulation class | 44 |
| Long description | Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers are fitted with a thermostat 38-50°C as standard. A controlled oil temperature increases the efficiency and lifetime of components in the system. |

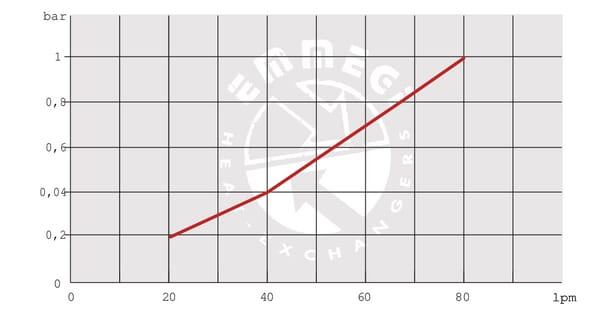

| Max. working flow | 70 l/min |
| Max. working pressure | 20 BAR |
| Noise level | 69 dB(A) |
| Nominal voltage | 230 V, 400 V |
| Product details | Temperature switch 38-50°C, Maximum temperature 120°C, The motor must be switched via a relay |
| Properties | Coolers are equipped with thermostats (38-50ºC) as standard, Motor is switched by relay |
| Pros | Compact build-in, Complete unit, Increased efficiency, Long component service life |
| Thermostat working temperature | 38 - 50 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
OK93038
Emmegi Temperature Switch 28-40°C Oil-cooler OK93038
£75.05 excl.
£90.06 incl.
OK95060
Emmegi Temperature Switch 48-60°C Oil-cooler OK95060
£58.10 excl.
£69.72 incl.
OK96070
Emmegi Temperature Switch 58-70°C Oil-cooler OK96070
£74.53 excl.
£89.44 incl.
OK97080
Emmegi Temperature Switch 68-80°C Oil-cooler OK97080
£74.53 excl.
£89.44 incl.
OK98090
Emmegi Temperature Switch 78-90°C Oil-cooler OK98090
£74.53 excl.
£89.44 incl.
OK9NTCTEMPS
Emmegi NTC temperature sensor 1/2" BSP OK9NTCTEMPS
£43.68 excl.
£52.42 incl.
OK9SSSCRF
Emmegi Soft start en speed control with reverse (max 25A) OK9SSSCRF
£300.84 excl.
£361.01 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 7001 g |

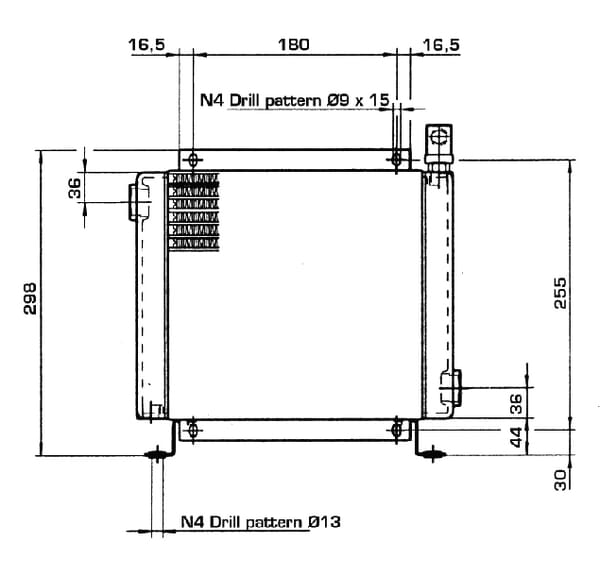

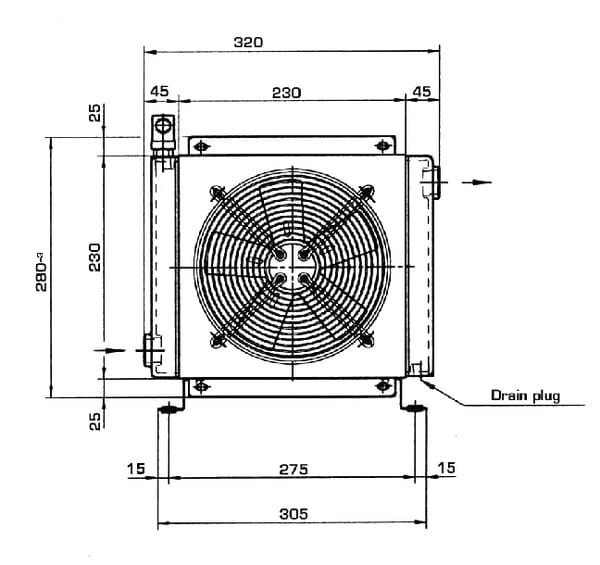

| Dimensions | 369 × 352 × 198 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000327369
Emmegi Oil-cooler (12V) 38-50'C 2040K-12-2-01 OK2040K12201
£948.94 excl.
£1,138.73 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327466
Emmegi Oil-cooler 400V HPA 12 40-28° OKHPA1203201K
£1,481.32 excl.
£1,777.58 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327432

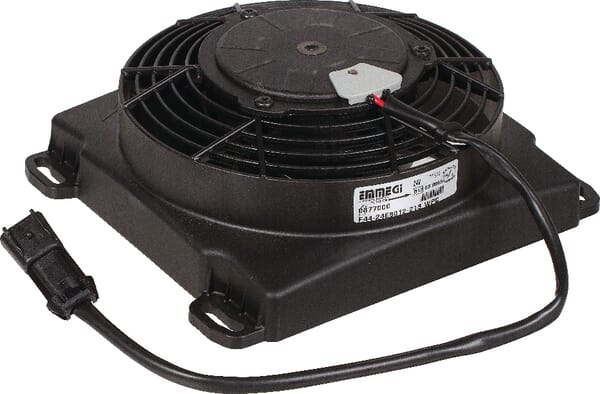

Emmegi Fan, with suction 24-V 2MV-1 OK92MV124S
£158.65 excl.
£190.38 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000327376
Emmegi Oil-Cooler 2050K Gr.2 OK2050K56201
£1,156.42 excl.
£1,387.70 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327396

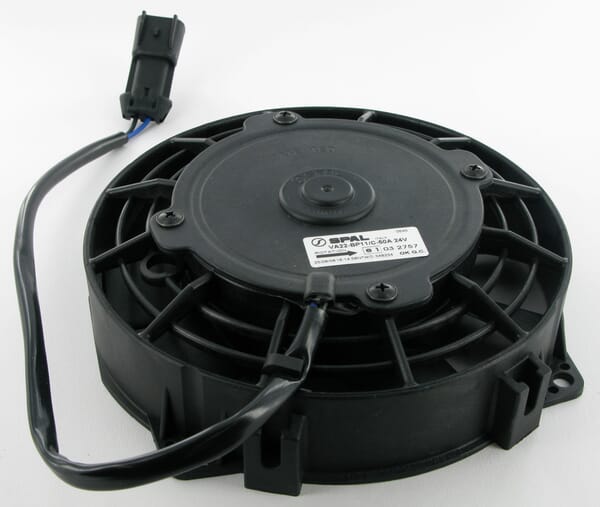

Emmegi Motor/Cooling fan/Guard 2010-24V OK9201035N
£178.16 excl.
£213.79 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000327362
Emmegi Oil-cooler (230V) 38-50'C 2030K-01-2-01 OK2030K01201
£721.11 excl.
£865.33 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000169598

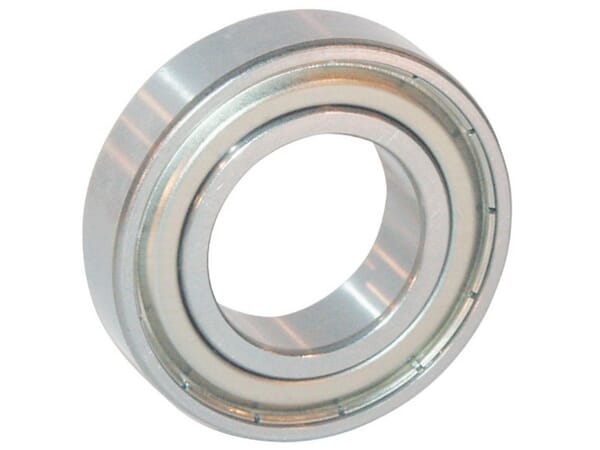

SKF Deep groove ball bearing 25x52x15mm 75006205ZC3
