£438.55
excl. VAT
£526.26 incl. VAT
£526.26
incl. VAT
£438.55 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Connection thread diameter | 1 Inch |
|---|---|
| Cooling medium flow type | Suction |
| Depth | 168 mm |
| Fan outside diameter | 200 mm |
| Includes | Aluminium radiator, Support, Impeller / electric motor, voltage depends on version, Temperature switch, Connector for connecting temperature switch/DC motor |
| Insulation class | 44 |
| Long description | Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers are fitted with a thermostat 38-50°C as standard. A controlled oil temperature increases the efficiency and lifetime of components in the system. |
| Material | Plastic, Aluminium, Steel |
| Max. working flow | 90 l/min |
| Max. working pressure | 20 BAR |
| Noise level | 68 dB(A) |
| Nominal voltage | 230 V, 400 V |
| Product details | Temperature switch 38-50°C, Maximum temperature 120°C, The motor must be switched via a relay |
| Pros | Compact build-in, Complete unit, Increased efficiency, Long component service life |
| Technical info | Air oil-coolers are applied to improve heat exchange between oil and the environment. The coolers are supplied standard with a 40 - 48 °C thermostat. |
| Thermostat working temperature | 38 - 50 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
4RA965400071
Hella Relay 4RA965400071
£11.71 excl.
£14.05 incl.
OK93038
Emmegi Temperature Switch 28-40°C Oil-cooler OK93038
£75.05 excl.
£90.06 incl.
OK95060

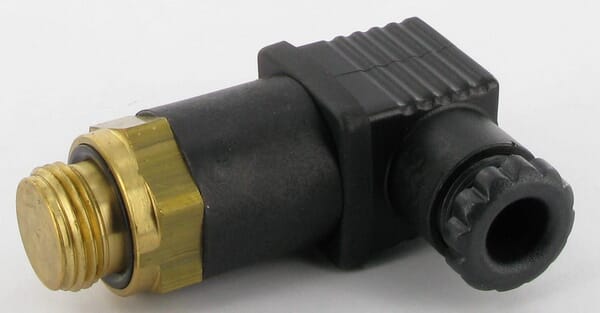

Emmegi Temperature Switch 48-60°C Oil-cooler OK95060
£58.10 excl.
£69.72 incl.
OK96070
Emmegi Temperature Switch 58-70°C Oil-cooler OK96070
£74.53 excl.
£89.44 incl.
OK97080

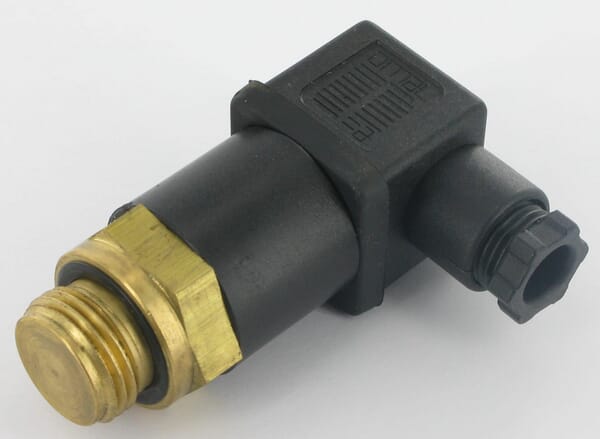

Emmegi Temperature Switch 68-80°C Oil-cooler OK97080
£74.53 excl.
£89.44 incl.
OK98090

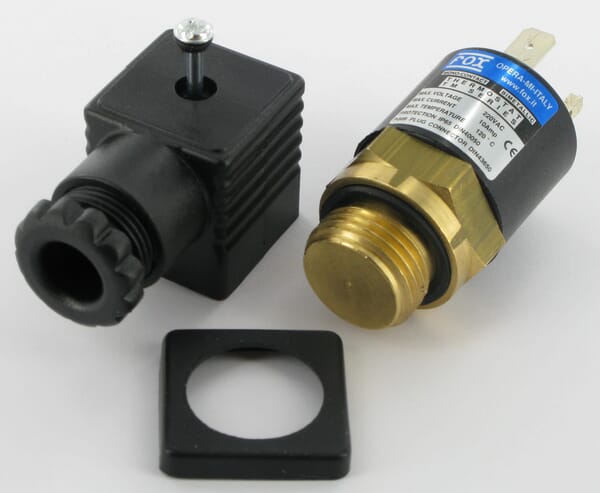

Emmegi Temperature Switch 78-90°C Oil-cooler OK98090
£74.53 excl.
£89.44 incl.
OK9NTCTEMPS

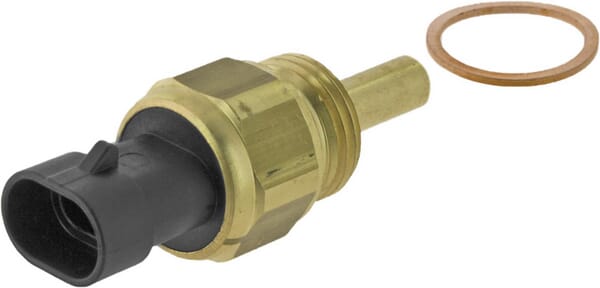

Emmegi NTC temperature sensor 1/2" BSP OK9NTCTEMPS
£43.68 excl.
£52.42 incl.
OK9SSSCRF

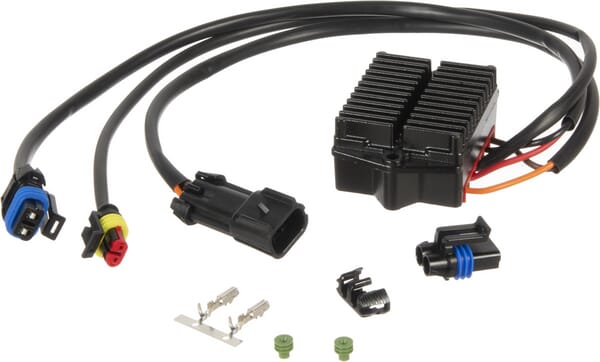

Emmegi Soft start en speed control with reverse (max 25A) OK9SSSCRF
£300.84 excl.
£361.01 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 8115 g |
| Dimensions | 357 × 218 × 347 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000327426

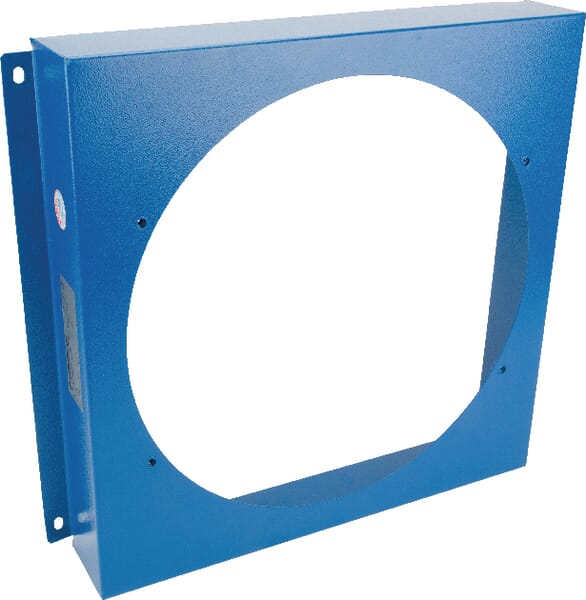

Emmegi Fan housing 034319A OK92040952
£136.15 excl.
£163.38 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327414

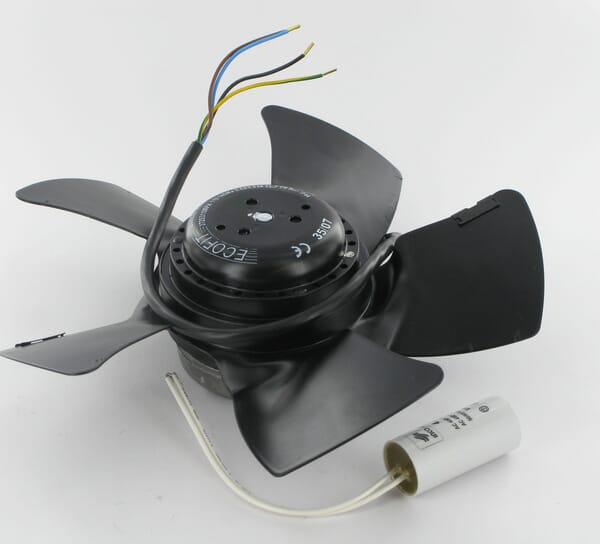

Emmegi Electric fan with motor 220V 250mm OK9202440
£271.93 excl.
£326.32 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327386

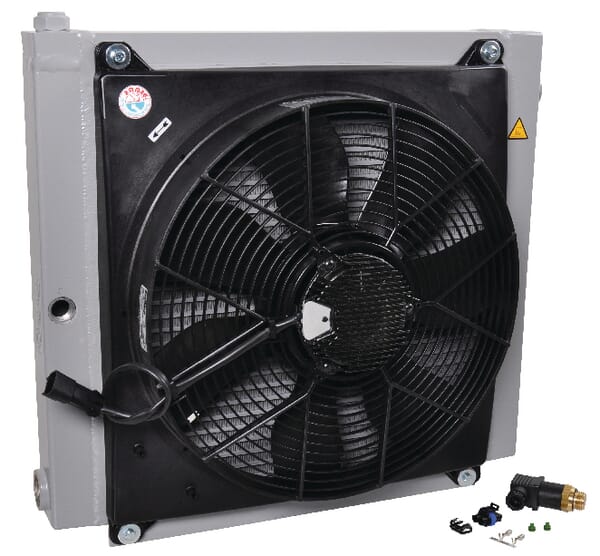

Emmegi Oil-cooler (12V) 48–60°C MV-4 OK2MV412301
£992.94 excl.
£1,191.53 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327467

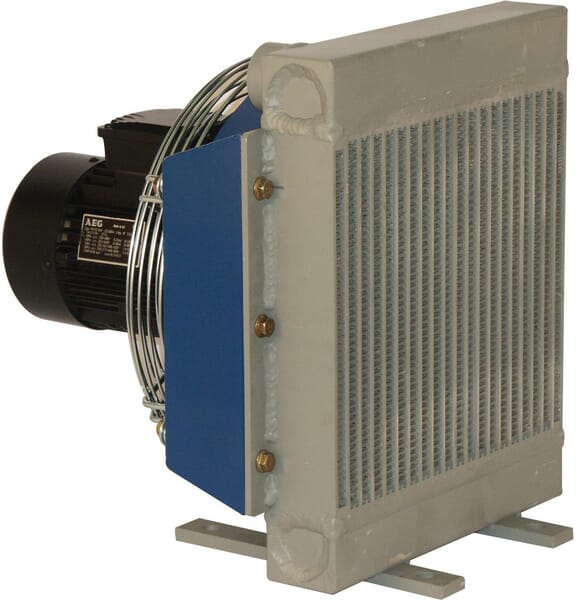

Emmegi Oil-cooler (400V) 50-38'C HPA-18-03-2-01 OKHPA1803201
£1,723.93 excl.
£2,068.72 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000327449
Emmegi Temperature Switch 58-70°C Oil-cooler OK96070
£74.53 excl.
£89.44 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000327385

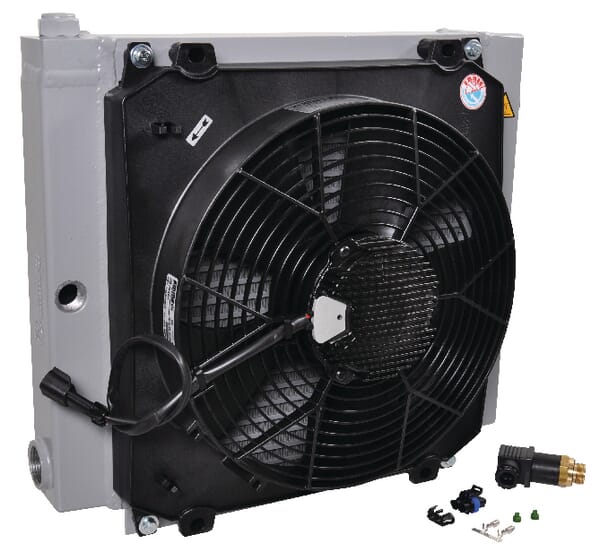

Emmegi Oil-cooler (24V) 48–60°C MV-3 OK2MV324301
