£80.69
excl. VAT
£96.83 incl. VAT
£96.83
incl. VAT
£80.69 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Basic radial load dynamic | 57000 N |
|---|---|
| Basic radial load static | 34500 N |
| Bearing model type | Angular contact ball bearings |
| BWidth | 23 mm |
| Contact angle | 40 ° |
| dInside diameter | 40 mm |
| DOutside diameter | 90 mm |
| Inside diameter of outer ring | 71.28 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 10400 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 7308-B-XL-TVP-UA |
| Outside diameter of inner ring | 59.99 mm |
| Radial internal clearance code | CN |
| Ref rotation speed | 8500 r/min |
| Regreasable | Yes |
| Rows number | 1 |
| Sealing | Open |
| Surface treatment | n/a |
| Unit | Each |
| Weight | 0.616 kg |
Logistics
| EAN | 4012801166492 |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
You might also like
BPA000168499
FAG Angular contact ball bearing 40x90x23mm INA/FAG 7308BTVP
£71.17 excl.
£85.40 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000168491

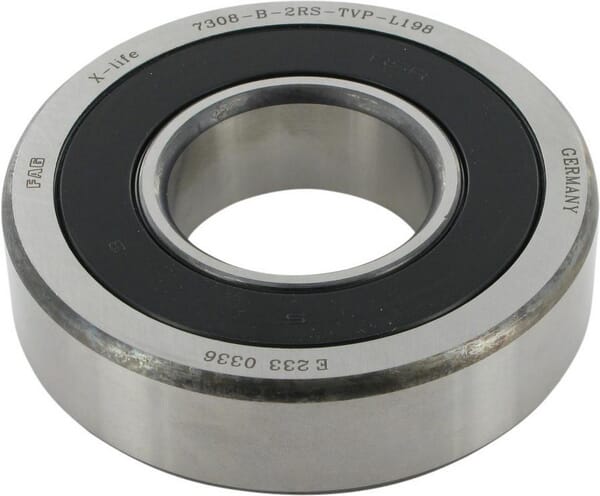

FAG Angular contact ball bearing 40x90x23mm INA/FAG 7308B2RS
