£59.90
excl. VAT
£71.88 incl. VAT
£71.88
incl. VAT
£59.90 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft |
|---|---|
| Basic radial load dynamic | 66000 N |
| Basic radial load static | 54000 N |
| BWidth | 24 mm |
| Consists of | Cylindrical bearing, Inner ring NJ |
| dInside diameter | 25 mm |
| DOutside diameter | 62 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 13000 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NJ2305-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring with 1 rib, Shaft can be closed axially in 1 direction |
| Radial internal clearance code | CN |
| Ref rotation speed | 8300 r/min |
| Rows number | 1 |
| Unit | Each |
| Weight | 0.352 kg |
Logistics
| EAN | 4012801176927 |
|---|---|
| Unit of measure | EA |
| Weight | 356 g |
| Dimensions | 70 × 70 × 30 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000134641

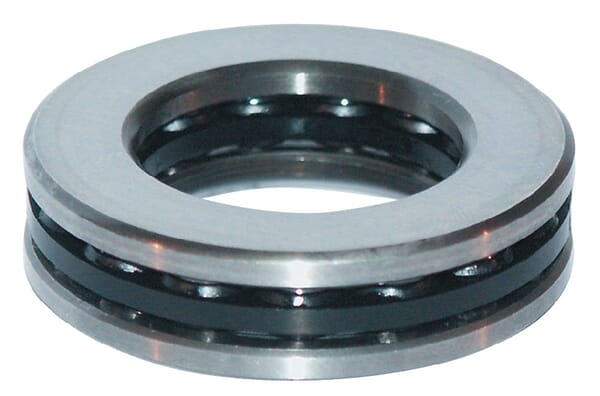

FAG Thrust ball bearing 53215FAG
£207.84 excl.
£249.41 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000093265
FAG Tapered roller bearing 80x140x46x35mm INA/FAG 33216A
£186.93 excl.
£224.32 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000086023
FAG Angular contact ball bearing 60x110x36.5mm INA/FAG 3212BTVH
£134.84 excl.
£161.81 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000088776
FAG Angular contact ball bearing 20x47x20.6mm INA/FAG 3204B2RSRTVH
£29.94 excl.
£35.93 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000285456

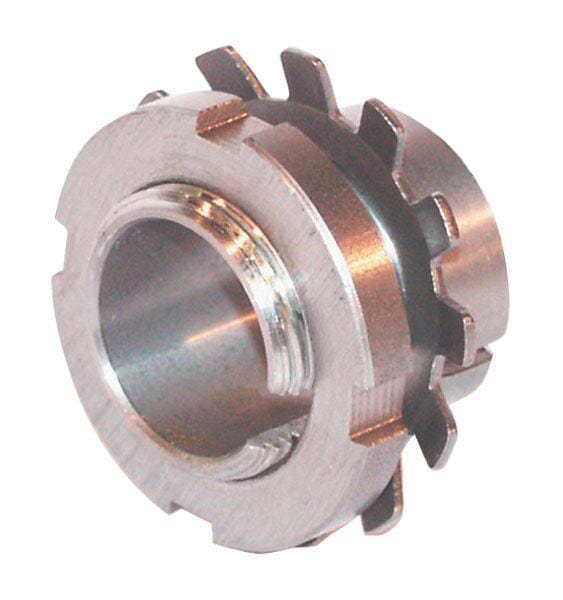

FAG Adaptor sleeve with nut 50x75x45mm H311
