£29.94
excl. VAT
£35.93 incl. VAT
£35.93
incl. VAT
£29.94 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| Basic radial load dynamic | 20600 N |
|---|---|
| Basic radial load static | 12900 N |
| Bearing model type | Angular contact ball bearings |
| BWidth | 20.6 mm |
| Contact angle | 30 ° |
| dInside diameter | 20 mm |
| DOutside diameter | 47 mm |
| Inside diameter of outer ring | 40.1 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 12100 r/min |
| Max working temperature | 100 °C |
| Min working temperature | -20 °C |
| Original number equivalent | 3204-BD-XL-2HRS-TVH |
| Outside diameter of inner ring | 29.22 mm |
| Radial internal clearance code | CN |
| Ref rotation speed | 8500 r/min |
| Regreasable | No |
| Rows number | 2 |
| Sealing | 2RS |
| Surface treatment | n/a |
| Unit | Each |
| Weight | 0.153 kg |
Logistics
| EAN | 40128024746264064327676269 |
|---|---|
| Unit of measure | EA |
| Weight | 160 g |
| Dimensions | 49 × 36 × 36 mm |
| Dangerous goods | No |
You might also like
BPA000088779
FAG Angular contact ball bearing 20x47x20.6mm INA/FAG 3204BTVH
£37.60 excl.
£45.12 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000088780
FAG Angular contact ball bearing 20x47x20.6mm INA/FAG 3204BZZTVH
£43.84 excl.
£52.61 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000088778
FAG Angular contact ball bearing 20x47x20.6mm INA/FAG 3204BDXL2ZTVHC3
£42.58 excl.
£51.10 incl.
In stock
Expected to ship on Monday 21 September
BPA000088777
FAG Angular contact ball bearing 20x47x20.6mm INA/FAG 3204BDXL2HRSTVHC3
£42.19 excl.
£50.63 incl.
In stock
Expected to ship on Monday 21 September
BPA000088781
FAG Angular contact ball bearing 20x47x20.6mm INA/FAG 3204ZZ
£43.40 excl.
£52.08 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000155296
FAG Deep groove ball bearing 20x47x14mm INA/FAG 62042RSC3
£4.85 excl.
£5.82 incl.
In stock
Expected to ship on Monday 21 September
Recently viewed
BPA000053160

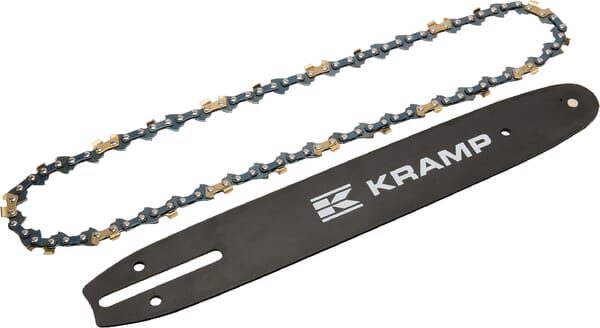

Kramp Bar and chain set 16"/40cm 3/8LP 1.3mm 1041 1638LP13561041KR
