£63.56
excl. VAT
£76.27 incl. VAT
£76.27
incl. VAT
£63.56 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 96000 N |
| Basic radial load static | 79000 N |
| Bearing model type | Cylindrical roller bearings |
| BWidth | 23 mm |
| Consists of | Cylindrical bearing, Inner ring NJ |
| dInside diameter | 40 mm |
| DOutside diameter | 90 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 10900 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NJ308-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring with 1 rib, Shaft can be closed axially in 1 direction |
| Radial internal clearance code | CN |
| Ref rotation speed | 7500 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.654 kg |
Logistics
| EAN | 4012801177016 |
|---|---|
| Unit of measure | EA |
| Weight | 675 g |
| Dimensions | 95 × 95 × 25 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000038721
FAG Self-aligning ball bearing 90x160x30mm INA/FAG 1218TVH
£224.44 excl.
£269.33 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000150219
FAG Deep groove ball bearing 35x62x14mm INA/FAG 6007ZC3
£10.20 excl.
£12.24 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000151143
FAG Deep groove ball bearing 130x280x58mm INA/FAG 6326MC3
£893.76 excl.
£1,072.51 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000152000

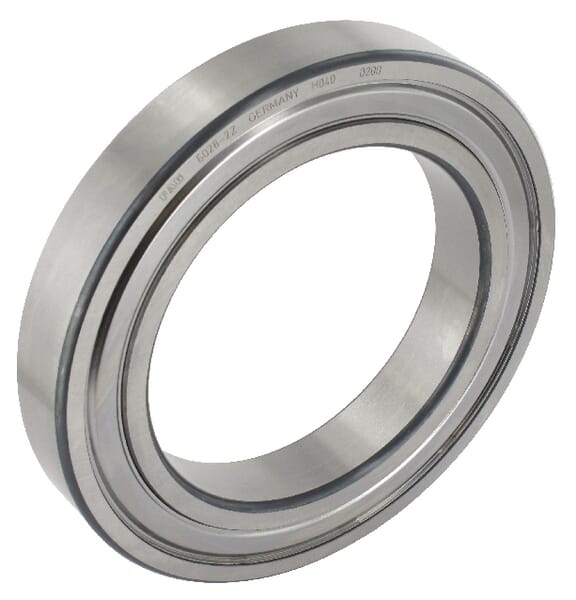

FAG Deep groove ball bearing 140x210x33mm INA/FAG 6028ZZ
