£20.81
excl. VAT
£24.97 incl. VAT
£24.97
incl. VAT
£20.81 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

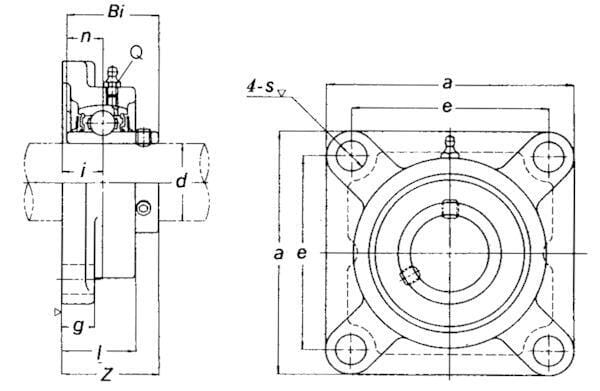

| aHousing width | 117 mm |
|---|---|
| aTotal length | 117 mm |
| Basic radial load dynamic | 25500 N |
| Basic radial load static | 15300 N |
| Bearing balls distance to locking side end | 19 mm |
| BiBearing inner ring width | 42.9 mm |
| dBearing inside diameter | 35 mm |
| eMounting holes distance | 92 mm |
| gFlange thickness | 16 mm |
| Grease nipple thread diameter | M6 |
| Housing type | Square flange |
| Includes | Bearing block, Bearing, Grease nipple |
| lBearing balls distance to mounting surface | 17.5 mm |
| lHousing height | 34 mm |
| Long description | These square ball bearing units with four bolt holes are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment. |
| Manufacturer | Schaeffler |
| Mounting holes diameter | 14 mm |
| Number of mounting holes | 4 |
| Original number equivalent | UCF207-J7 |
| Product details | Inner bearing has extended inner ring on both sides with 2 adjusting screws, Regreasable, Self-aligning ball bearing, Wide inner ring ball bearing |
| Properties | Inner bearing has extended inner ring with 2 adjusting screws on both sides, Can be subsequently lubricated |
| Pros | Highly suitable for limited installation spaces, Assembled, ready for use, Pre-lubricated |
| Total height | 44.4 mm |
| Unit | Each |
Logistics
| EAN | 4047643247665 |
|---|---|
| Unit of measure | EA |
| Weight | 1515 g |
| Dimensions | 125 × 125 × 53 mm |
| Dangerous goods | No |
You might also like
BPA000380629

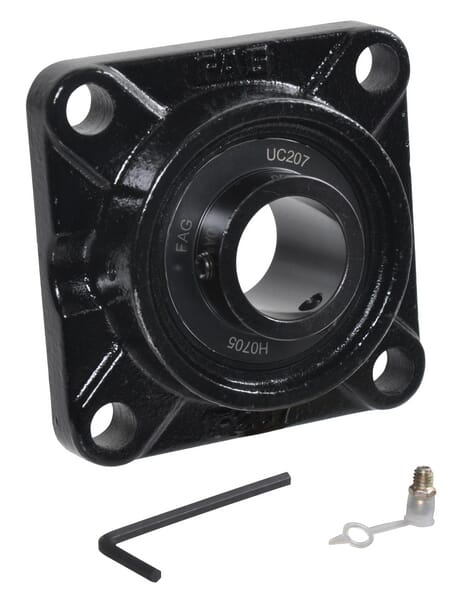

FAG Housing unit UCF UCF208
£23.85 excl.
£28.62 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000071158
FAG Spherical roller bearing 90x160x52.4mm INA/FAG 23218E1TVPB
£539.72 excl.
£647.66 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000277861

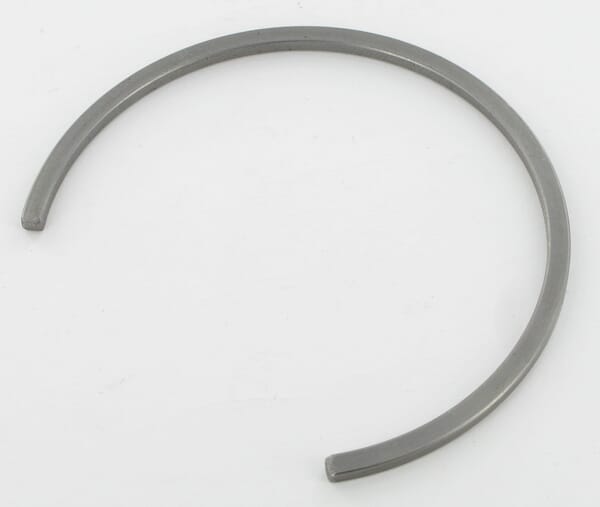

FAG Locating ring FRM(FRB) FRM1104
