£80.84
excl. VAT
£97.01 incl. VAT
£97.01
incl. VAT
£80.84 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 72000 N |
| Basic radial load static | 63000 N |
| Bearing model type | Cylindrical roller bearings |
| BWidth | 19 mm |
| Consists of | Cylindrical bearing, Inner ring NUP |
| dInside diameter | 45 mm |
| DOutside diameter | 85 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 10200 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NUP209-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring with 1 fixed and 1 loose rib, Fixed bearing, to lock shaft axially in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 8500 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.438 kg |
Logistics
| EAN | 4012801021654 |
|---|---|
| Unit of measure | EA |
| Weight | 460 g |
| Dimensions | 93 × 93 × 28 mm |
| Dangerous goods | No |
You might also like
BPA000153807
FAG Deep groove ball bearing 50x110x27mm INA/FAG 6310CZC3
£50.67 excl.
£60.80 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000072580
FAG Spherical roller bearing 75x130x31mm 22215E1AXLKMC3
£217.30 excl.
£260.76 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000088816
FAG Angular contact ball bearing 30x62x23.8mm INA/FAG 3206BZZTVH
£54.51 excl.
£65.41 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000235586
FAG Spindle bearing 25x47x12mm INA/FAG B7005ETP4SUL
£164.20 excl.
£197.04 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000072561
FAG Spherical roller bearing 65x120x31mm INA/FAG 22213E1K
£146.52 excl.
£175.82 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000265405

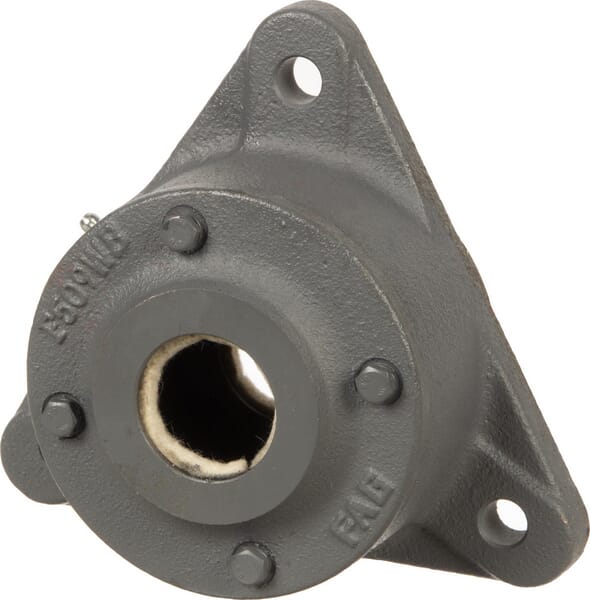

FAG Bearing housing F511WBL
