£187.07
excl. VAT
£224.48 incl. VAT
£224.48
incl. VAT
£187.07 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 53000 N |
| Basic radial load static | 58000 N |
| Bearing model type | Cylindrical roller bearings |
| BWidth | 18 mm |
| Consists of | Cylindrical bearing, Inner ring NU |
| dInside diameter | 65 mm |
| DOutside diameter | 100 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 14100 r/min |
| Max working temperature | 150 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NU1013-M1 |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 12000 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 48.994 kg |
Logistics
| EAN | 4012801022750 |
|---|---|
| Unit of measure | EA |
| Weight | 506 g |
| Dimensions | 105 × 103 × 20 mm |
| Dangerous goods | No |
You might also like
BPA000149406
FAG Deep groove ball bearing 17x35x10mm INA/FAG 60032RS
£4.43 excl.
£5.32 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000154222
FAG Deep groove ball bearing 25x80x21mm INA/FAG 6405
£39.57 excl.
£47.48 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000155831
FAG Deep groove ball bearing 40x90x33mm INA/FAG 623082RS
£58.69 excl.
£70.43 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000067583
FAG Spherical roller bearing 50x110x27mm INA/FAG 21310E1XLKTVPB
£176.12 excl.
£211.34 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000325172
FAG Cylindrical roller bearing 55x120x29mm INA/FAG NJ311ETVP2
£145.57 excl.
£174.68 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000088731

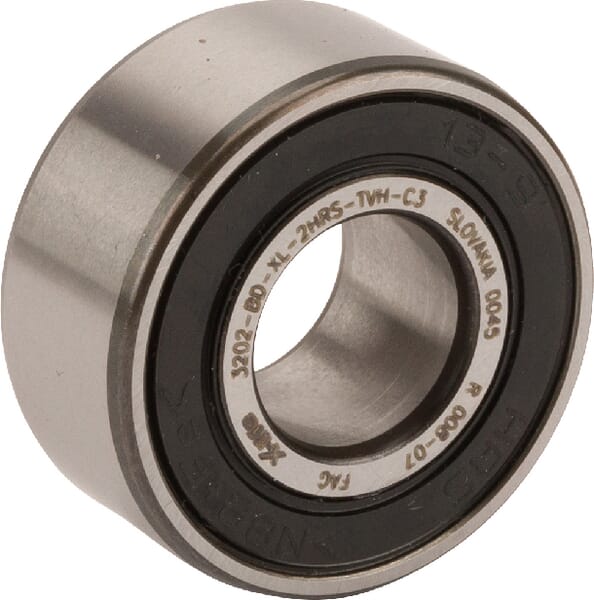

FAG Angular contact ball bearing 15x35x15.9mm INA/FAG 3202BDXL2HRSTVHC3
