£168.07
excl. VAT
£201.68 incl. VAT
£201.68
incl. VAT
£168.07 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 214000 N |
| Basic radial load static | 191000 N |
| Bearing model type | Cylindrical roller bearings |
| BWidth | 33 mm |
| Consists of | Cylindrical bearing, Inner ring NU |
| dInside diameter | 65 mm |
| DOutside diameter | 140 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 6800 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NU313-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 4800 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.022 kg |
Logistics
| EAN | 4012801235204 |
|---|---|
| Unit of measure | EA |
| Weight | 2251 g |
| Dimensions | 146 × 149 × 43 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000326442
FAG Cylindrical roller bearing 65x140x33mm INA/FAG NU313EXLM1C3
£394.05 excl.
£472.86 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000072214
FAG Self-aligning ball bearing 30x62x20mm INA/FAG 2206TVH
£42.41 excl.
£50.89 incl.
In stock
Expected to ship on Friday 18 September
BPA000380940

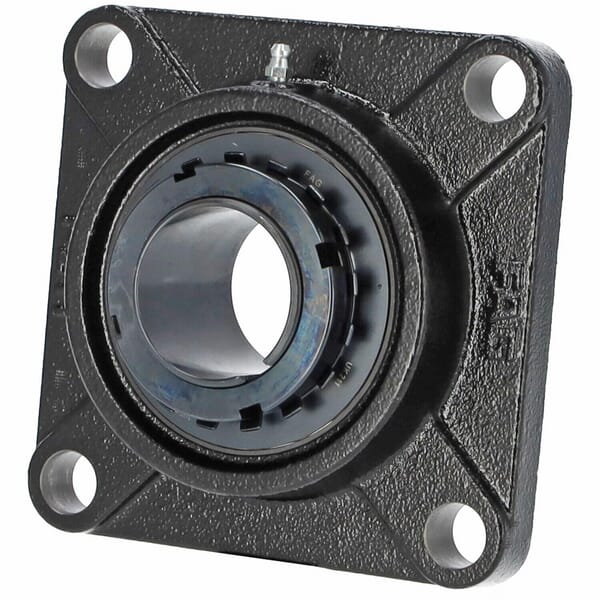

FAG Bearing block complete UKF211
£76.26 excl.
£91.51 incl.
In stock
Expected to ship on Friday 18 September
BPA000365572

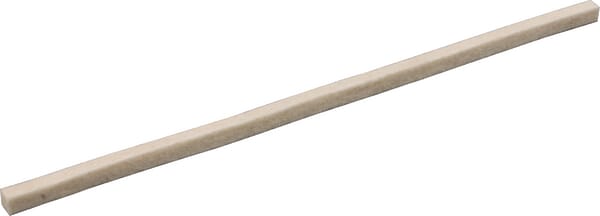

FAG Felt strip 16x12x1,000 STRS153401116X12
£56.81 excl.
£68.17 incl.
In stock
Expected to ship on Friday 18 September
BPA000153589
FAG Deep groove ball bearing 30x72x19mm INA/FAG 6306
£9.70 excl.
£11.64 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000326227
FAG Cylindrical roller bearing 55x90x18mm INA/FAG NU1011M1
£148.11 excl.
£177.73 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000299421
Kverneland Covering tine Kverneland original KK199781R
£20.20 excl.
£24.24 incl.
In stock
Expected to ship on Monday 21 September
BPA000282786

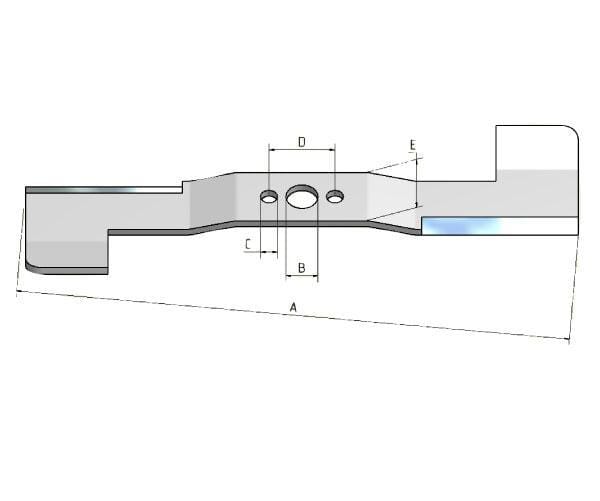

Kramp Blade L: 432x4.8mm round hole: diameter 17.5, PowerMulch GX20250KR
£19.40 excl.
£23.28 incl.
In stock
Expected to ship on Friday 18 September
BPA000306185
Kramp Ball valve BSP fem./male 1"+SS handle KS1MKR
£18.81 excl.
£22.57 incl.
In stock
Expected to ship on Friday 18 September
BPA000232653
Hallite Rod wiper ASU 70x80.6x5.3/7mm ASU7080653T38
£10.96 excl.
£13.15 incl.
In stock
Expected to ship on Friday 18 September
BPA000130380
Kramp Oil seal 50x80x10mm type:BB DIN 3760 1x 508010BBP001
£4.46 excl.
£5.35 incl.
In stock
Expected to ship on Friday 18 September
BPA000163905

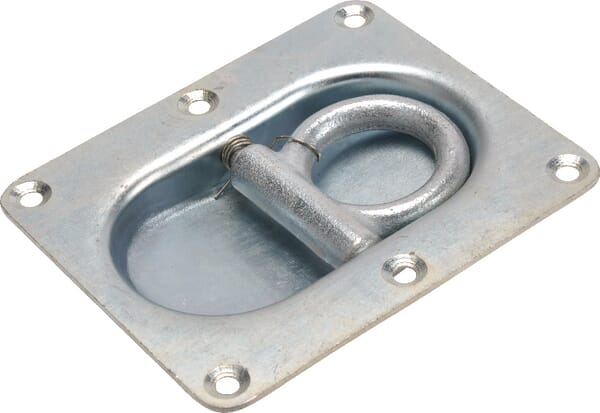

Kramp Zinc-plated lug 150 x 125mm H=25.18mm 709010KR
