Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 214000 N |
| Basic radial load static | 191000 N |

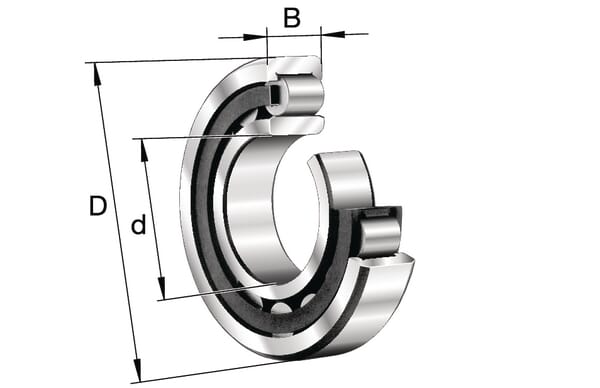

| Bearing model type | Cylindrical roller bearings |
| BWidth | 33 mm |
| Consists of | Cylindrical bearing, Inner ring NU |
| dInside diameter | 65 mm |
| DOutside diameter | 140 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 8800 r/min |
| Max working temperature | 150 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NU313-E-XL-M1-C3 |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | C3 |
| Ref rotation speed | 4800 r/min |
| Rows number | 1 |
| Unit | Each |
| Weight | 2.441 kg |
Logistics
| EAN | 4012801235174 |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
