£122.21
excl. VAT
£146.65 incl. VAT
£146.65
incl. VAT
£122.21 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 141000 N |
| Basic radial load static | 138000 N |
| Bearing model type | Cylindrical roller bearings |
| BWidth | 24 mm |
| Consists of | Cylindrical bearing, Inner ring NU |
| dInside diameter | 70 mm |
| DOutside diameter | 125 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 7800 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NU214-E-XL-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 4650 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.116 kg |
Logistics
| EAN | 4012801023726 |
|---|---|
| Unit of measure | EA |
| Weight | 1160 g |
| Dimensions | 141 × 135 × 32 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000070916
FAG Spherical roller bearing 100x165x52mm INA/FAG 23120E1TVPB
£435.32 excl.
£522.38 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000155371
FAG Deep groove ball bearing 30x62x16mm INA/FAG 62062RS
£9.61 excl.
£11.53 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000301052

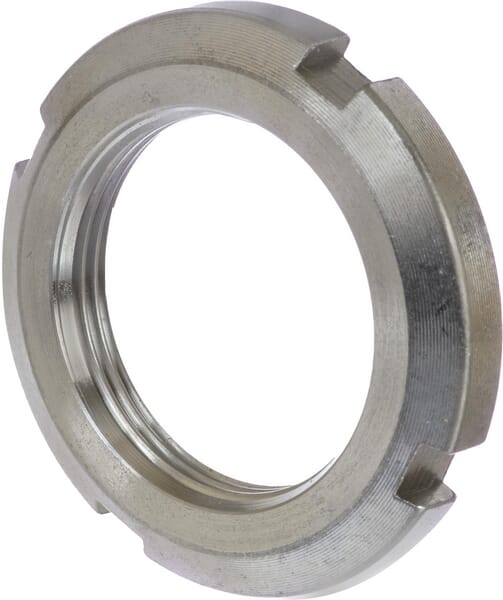

FAG KM nut, zinc-plated KM6V
£9.14 excl.
£10.97 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000150768
FAG Deep groove ball bearing 65x100x18mm INA/FAG 6013C3
£38.21 excl.
£45.85 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000277870

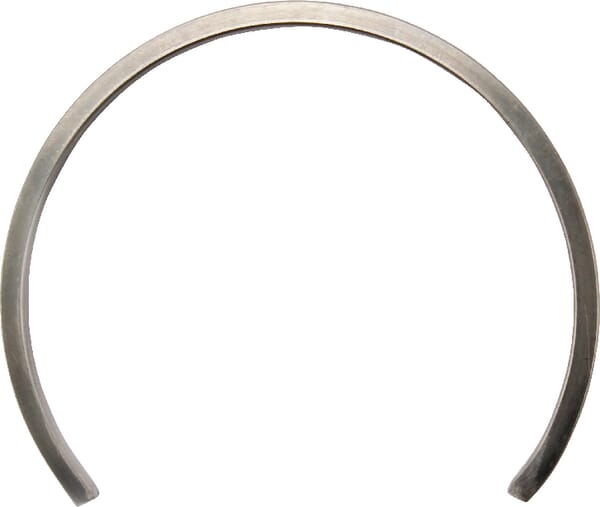

FAG Locating ring FRM(FRB) FRM1405
£20.96 excl.
£25.15 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000168478

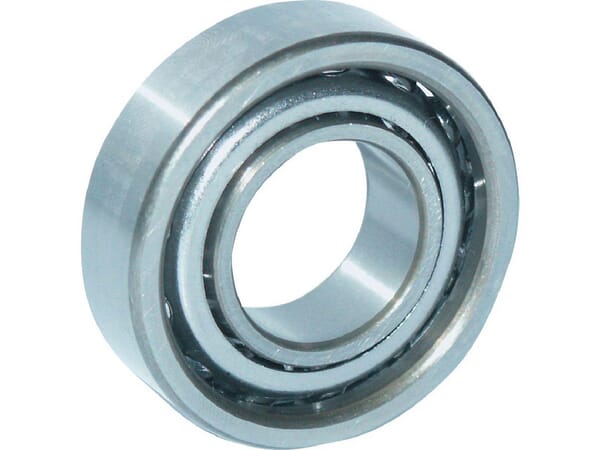

FAG Angular contact ball bearing 30x72x19mm INA/FAG 7306BTVP
£39.04 excl.
£46.85 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
BPA000364949

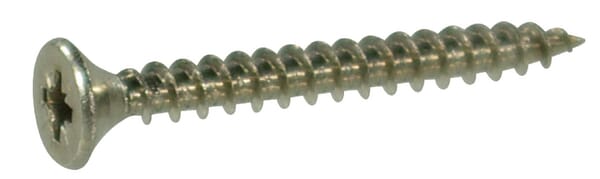

Kramp Wood screw 6x120mm PZ3 countersunk, stainless steel SPS6120RVSP100
