£322.11
excl. VAT
£386.53 incl. VAT
£386.53
incl. VAT
£322.11 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 300000 N |
| Basic radial load static | 275000 N |

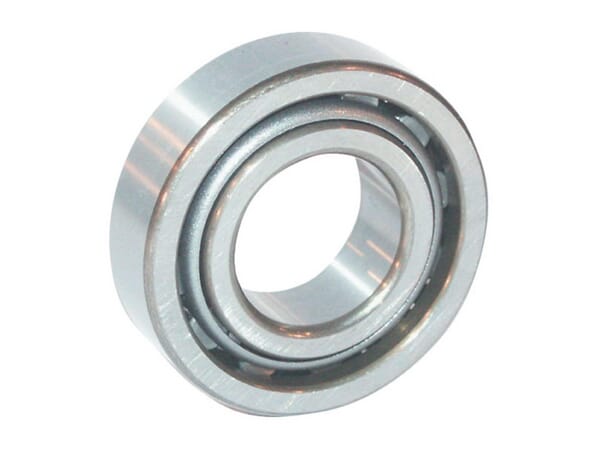

| Bearing model type | Cylindrical roller bearings |

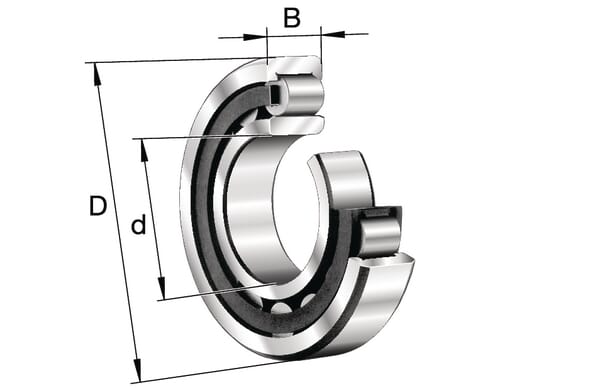

| BWidth | 39 mm |
| Consists of | Cylindrical bearing, Inner ring NU |
| dInside diameter | 80 mm |
| DOutside diameter | 170 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 5500 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NU316-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 3800 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 3.812 kg |
Logistics
| EAN | 4012801235303 |
|---|---|
| Unit of measure | EA |
| Weight | 3915 g |
| Dimensions | 175 × 175 × 45 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000326453
FAG Cylindrical roller bearing 80x170x39mm INA/FAG NU316EXLTVP2C3
£339.90 excl.
£407.88 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000155323

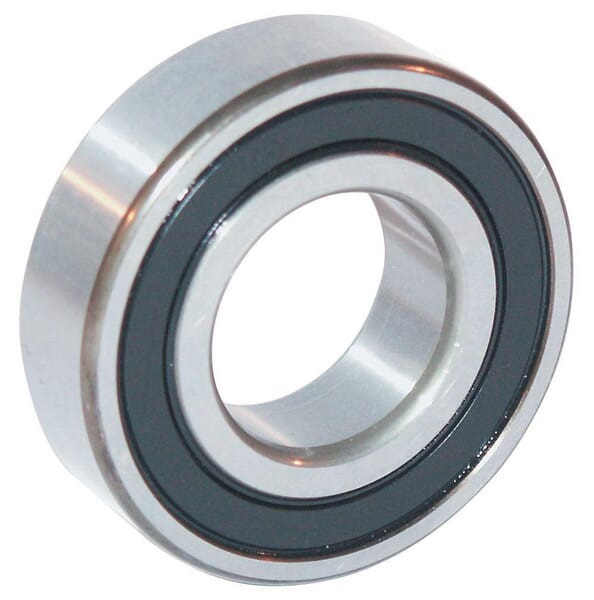

FAG Deep groove ball bearing 25x52x15mm INA/FAG 62052RSC3
£5.30 excl.
£6.36 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000072865

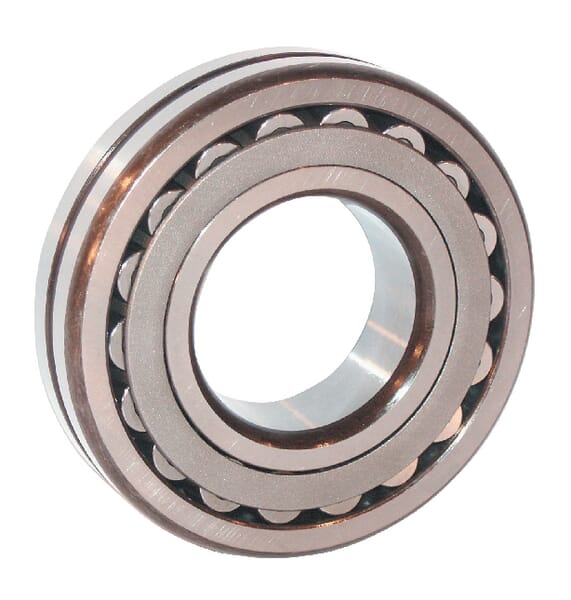

FAG Spherical roller bearing 75x160x55mm INA/FAG 22315E1XLC3
£385.07 excl.
£462.08 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000089631
FAG Angular contact ball bearing 15x42x19mm INA/FAG 3302ZZ
£58.01 excl.
£69.61 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000325069
FAG Cylindrical roller bearing NJ2214EXLTVP2
£217.26 excl.
£260.71 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000380674

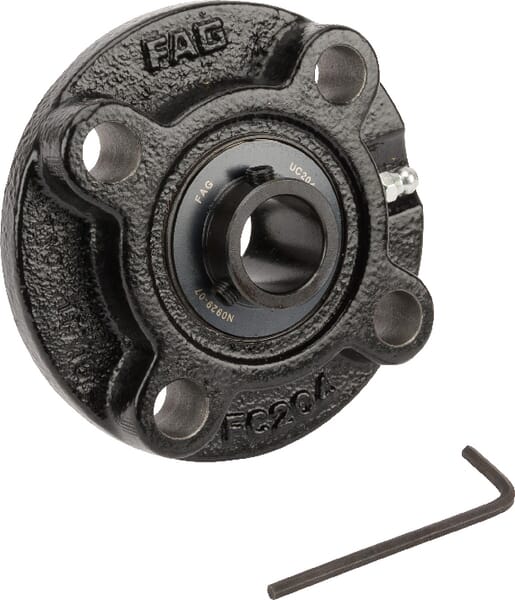

FAG Housing unit UCFC204J7
