£339.90
excl. VAT
£407.88 incl. VAT
£407.88
incl. VAT
£339.90 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 300000 N |
| Basic radial load static | 275000 N |

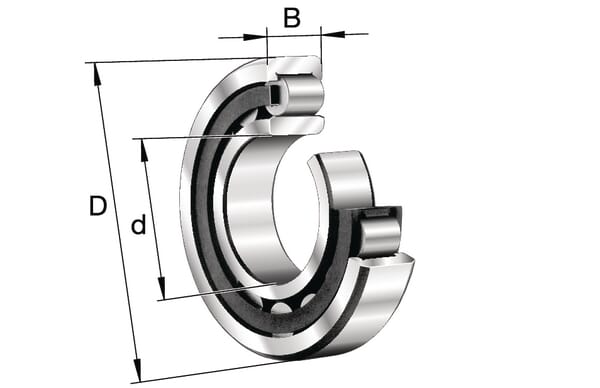

| Bearing model type | Cylindrical roller bearings |
| BWidth | 39 mm |
| Consists of | Cylindrical bearing, Inner ring NU |
| dInside diameter | 80 mm |
| DOutside diameter | 170 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 5500 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NU316-E-XL-TVP2-C3, 0167401650030 |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | C3 |
| Ref rotation speed | 4100 r/min |
| Rows number | 1 |
| Sealing | n/a |
| Unit | Each |
Logistics
| EAN | 4012801235310 |
|---|---|
| Unit of measure | EA |
| Weight | 3910 g |
| Dimensions | 175 × 175 × 50 mm |
| Dangerous goods | No |
